Grandstream Networks UCM630 Series User Manual

P a g e | 195
UCM630X Series User Manual
Version 1.0.2.25

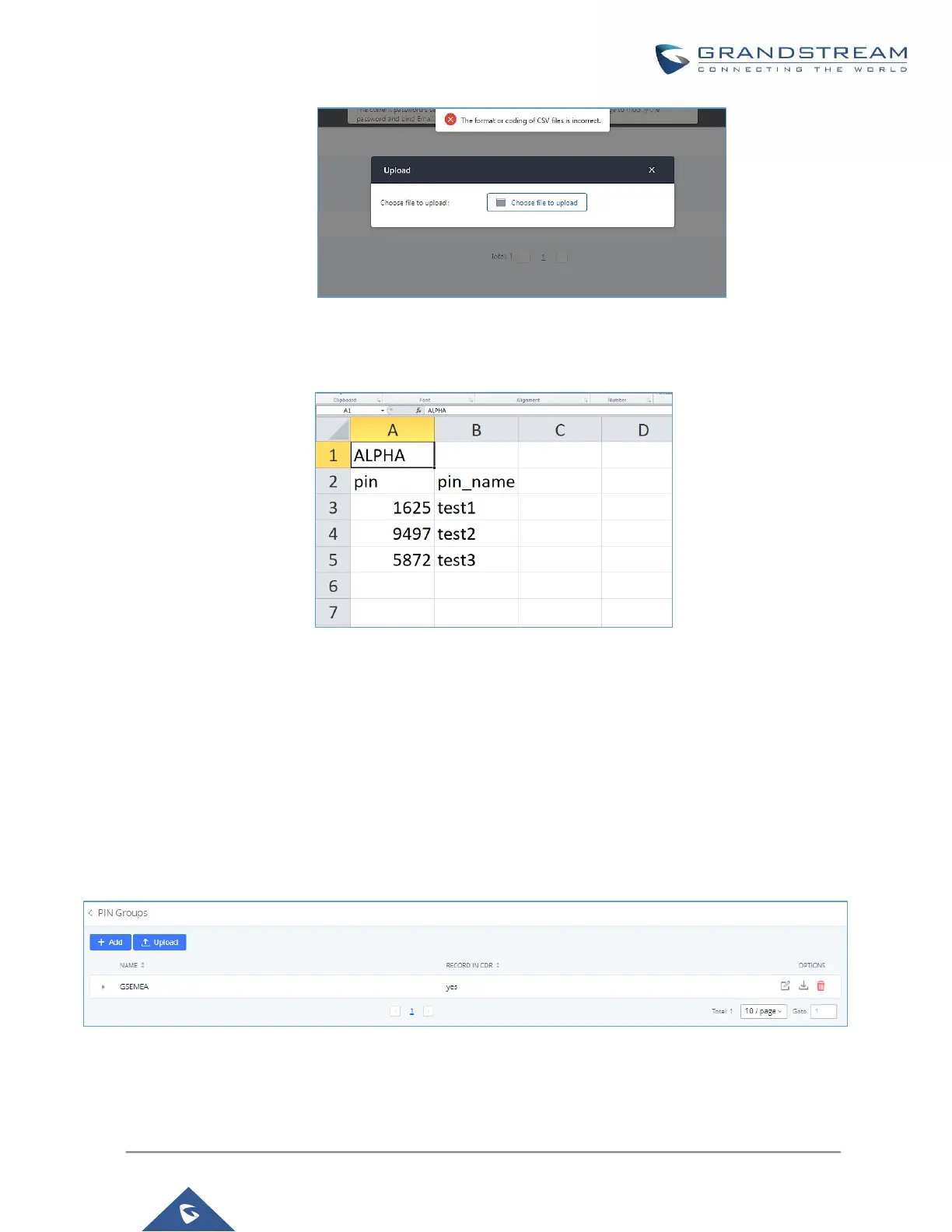

Figure 112: Incorrect CSV File
3. To ensure a successful import, please follow the format in the sample image below
Figure 113: CSV File Format
 The top-left value (A1) is the PIN Group name. In this case, it is “ALPHA”.
 Row 2 contains the labels for the modifiable fields: pin and pin_name. These values should not
be changed and will cause an upload error otherwise.
 Rows 3+ contain the user-defined values with Column A holding the PINs and Column B
holding the PIN names. PIN values must consist of at least four digits.
 Once the file is successfully uploaded, the entry will be added to the list of PIN Groups.
Figure 114: CSV File Successful Upload
