UCM630X Series User Manual
Version 1.0.2.25
ACTIVE CALLS AND MONITOR
The active calls on the UCM630X are displayed in Web GUISystem StatusActive Calls page. Users can
monitor the status, hang up the call as well as barge in the active calls in real time manner.
Active Calls Status
To view the status of active calls, navigate to Web GUISystem StatusActive Calls. The following figure
shows extension 1004 is calling 1000. 1000 is ringing.

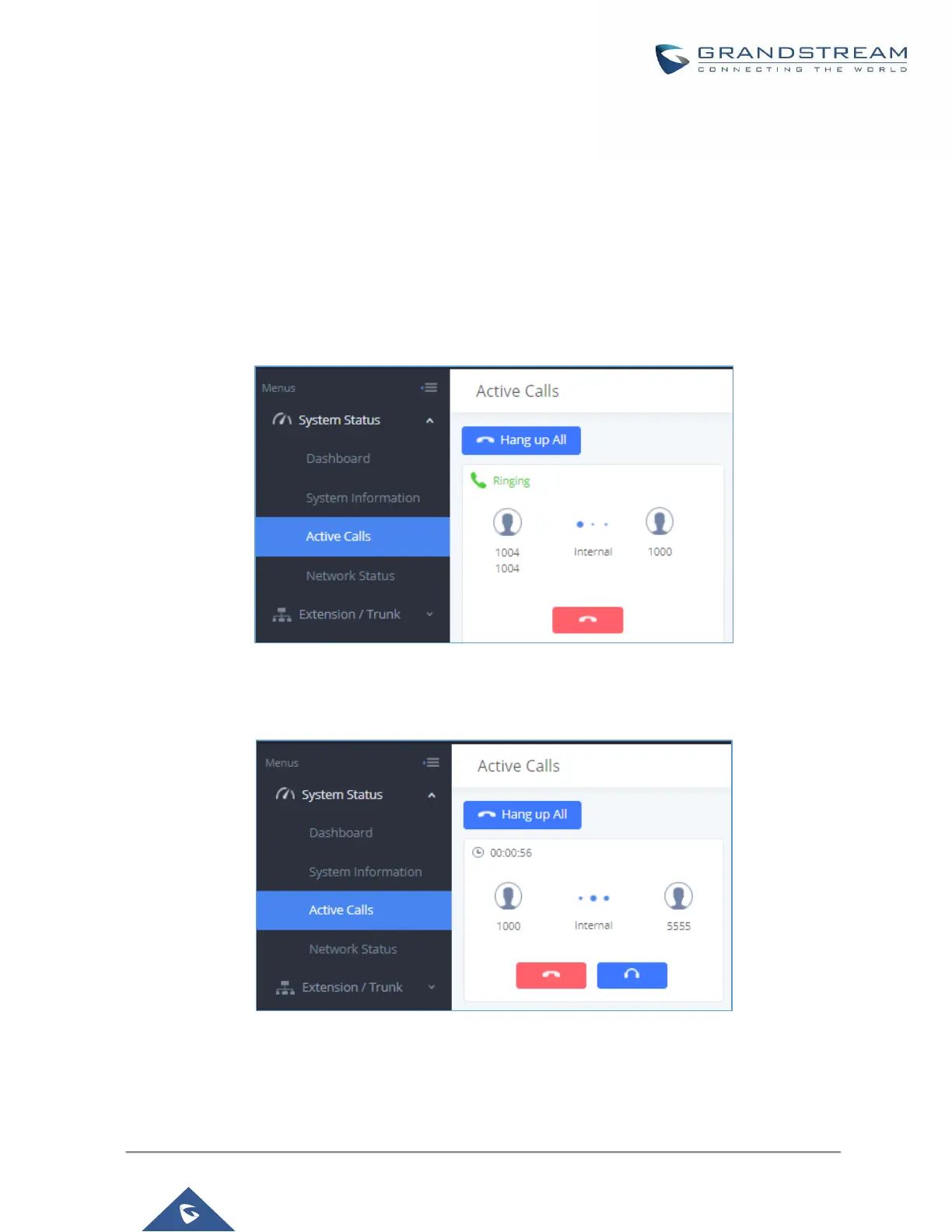

Figure 197: StatusPBX StatusActive Calls - Ringing
The following figure shows the call between 1000 and 5555 is established.
Figure 198: StatusPBX StatusActive Calls – Call Established
The gray color of the active call means the connection of call time is less than half an hour. It means this call is
normal.
