UCM630X Series User Manual
Version 1.0.2.25

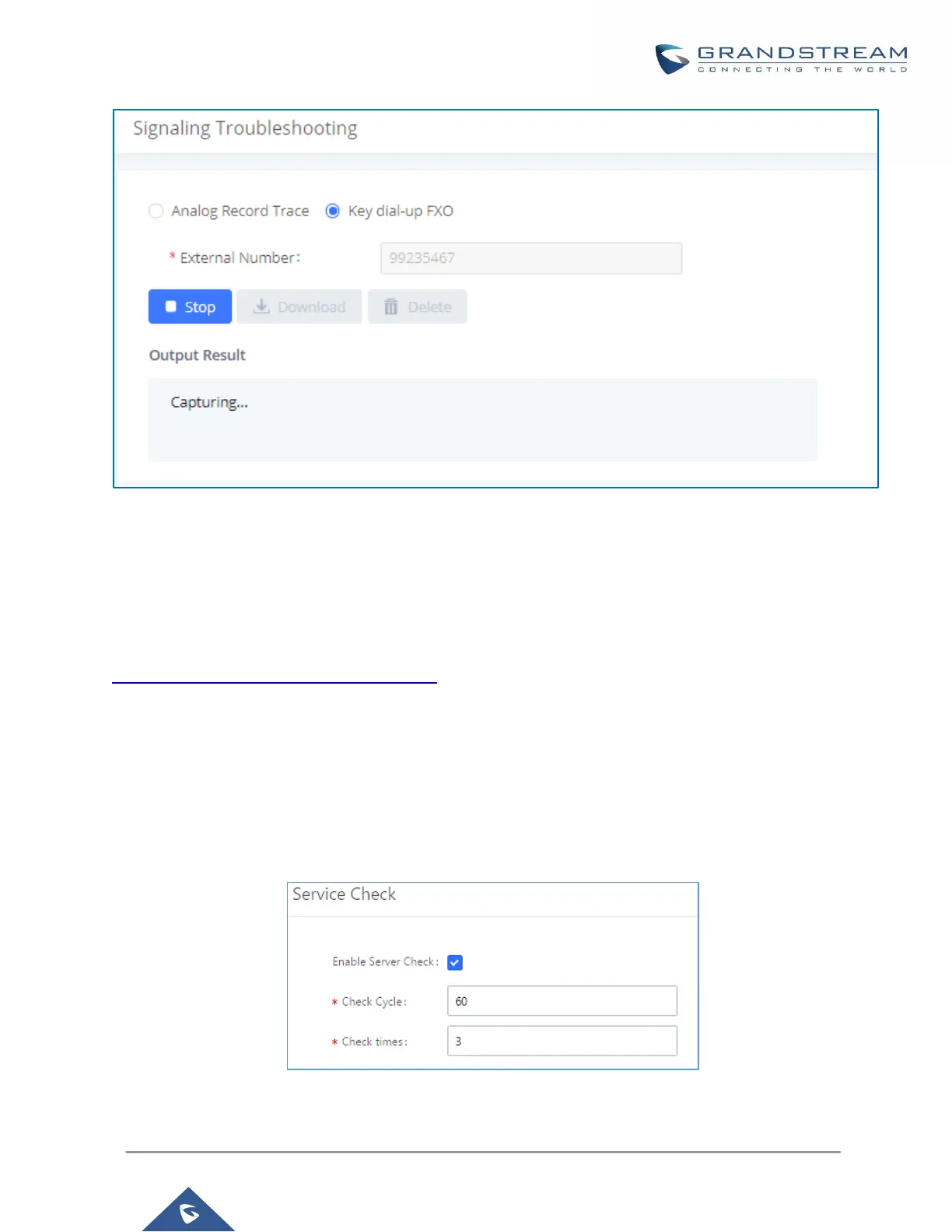

Figure 315: A Key Dial-up FXO
Note: When using a Key Dial-up FXO feature the outbound trunk for the analog trunk need to have internal
permission. As well as it should be the trunk with the highest outbound route priority.
After capturing the trace, users can download it for basic analysis. Or you can contact Grandstream
Technical support in the following link for further assistance if the issue is not resolved.
http://www.grandstream.com/index.php/support
Service Check
Enable Service Check to periodically check UCM630X. Check Cycle is configurable in seconds and the default
setting is 60 sec. Check Times is the maximum number of failed checks before restart the UCM630X. The default
setting is 3. If there is no response from UCM630X after 3 attempts (default) to check, current status will be
stored and the internal service in UCM630X will be restarted.
Figure 316: Service Check
