Click on “Enable CRM” and enter the username/password associated with the CRM account then click on

and . The status will change from “Logged Out” to “Logged In”. User can start then using

SugarCRM features.

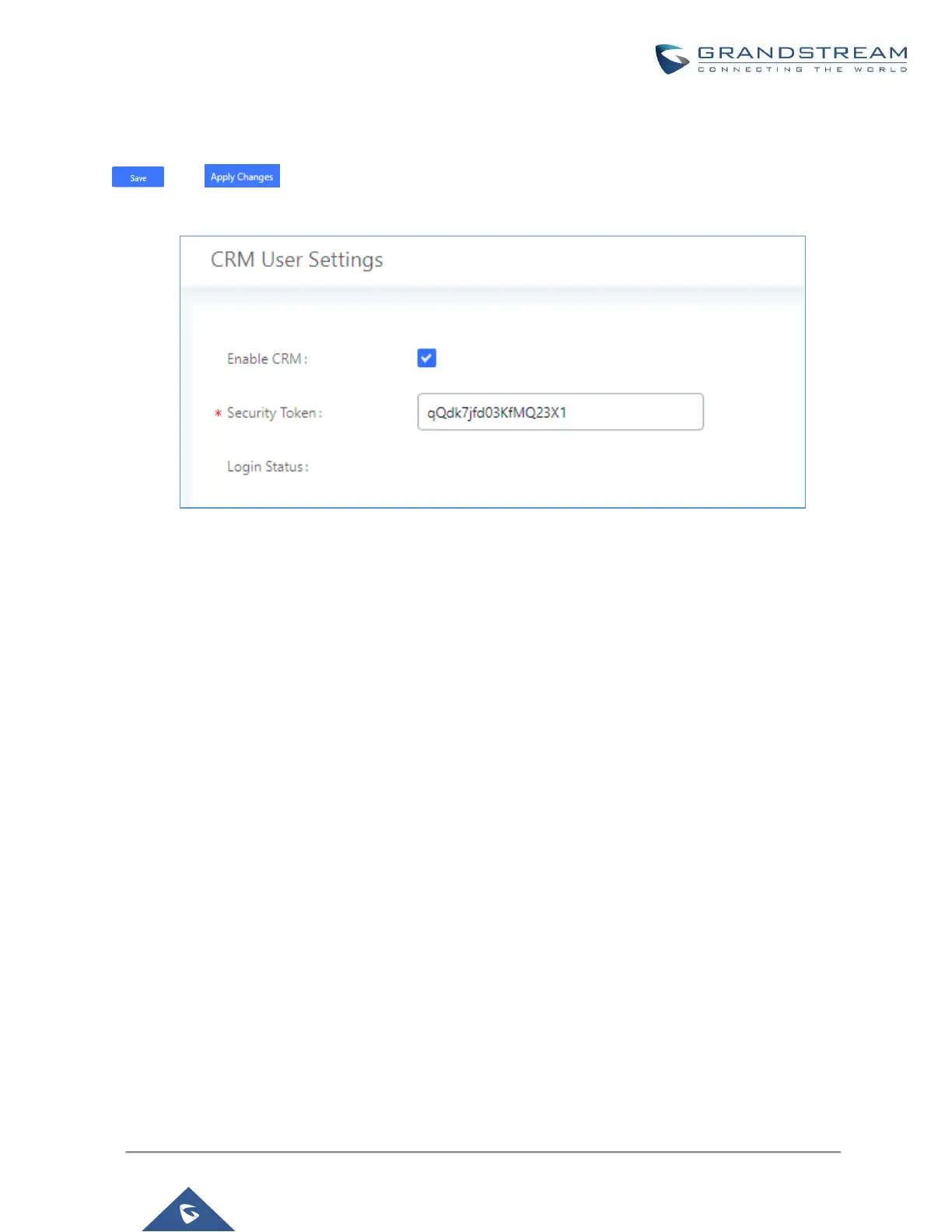

Figure 234: CRM User Settings

Note: ZohoV2CRM is supported as well while the CRM Server Address https://www.zohozpis.com
