P a g e | 162

UCM630X Series User Manual

Version 1.0.2.25

Using Extension Groups

Here is an example where the extension group can be used. Go to Web GUIExtension/TrunkOutbound

Routes and select "Enable Filter on Source Caller ID". Both single extensions and extension groups will show

up for users to select.

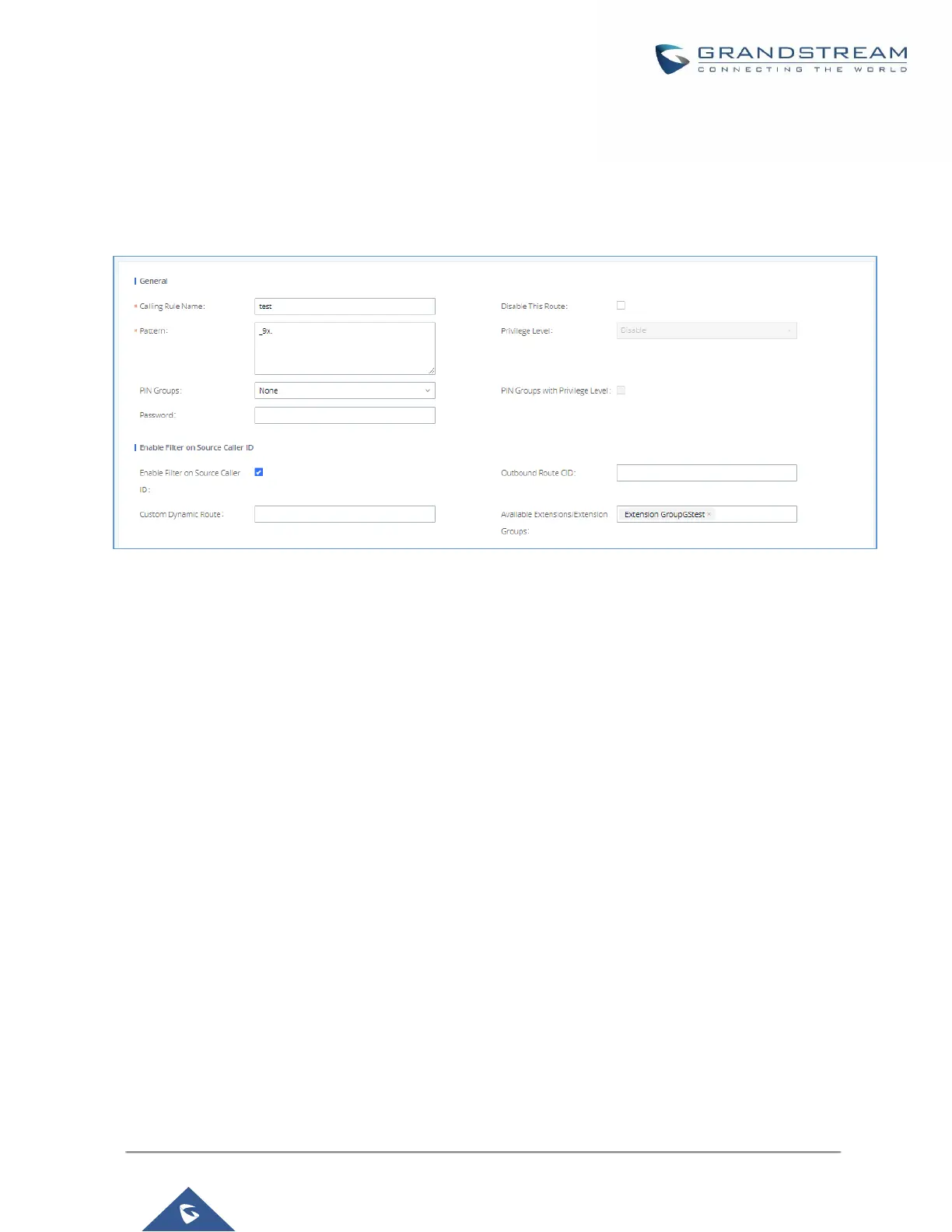

Figure 91: Select Extension Group in Outbound Route
