UCM630X Series User Manual
Version 1.0.2.25

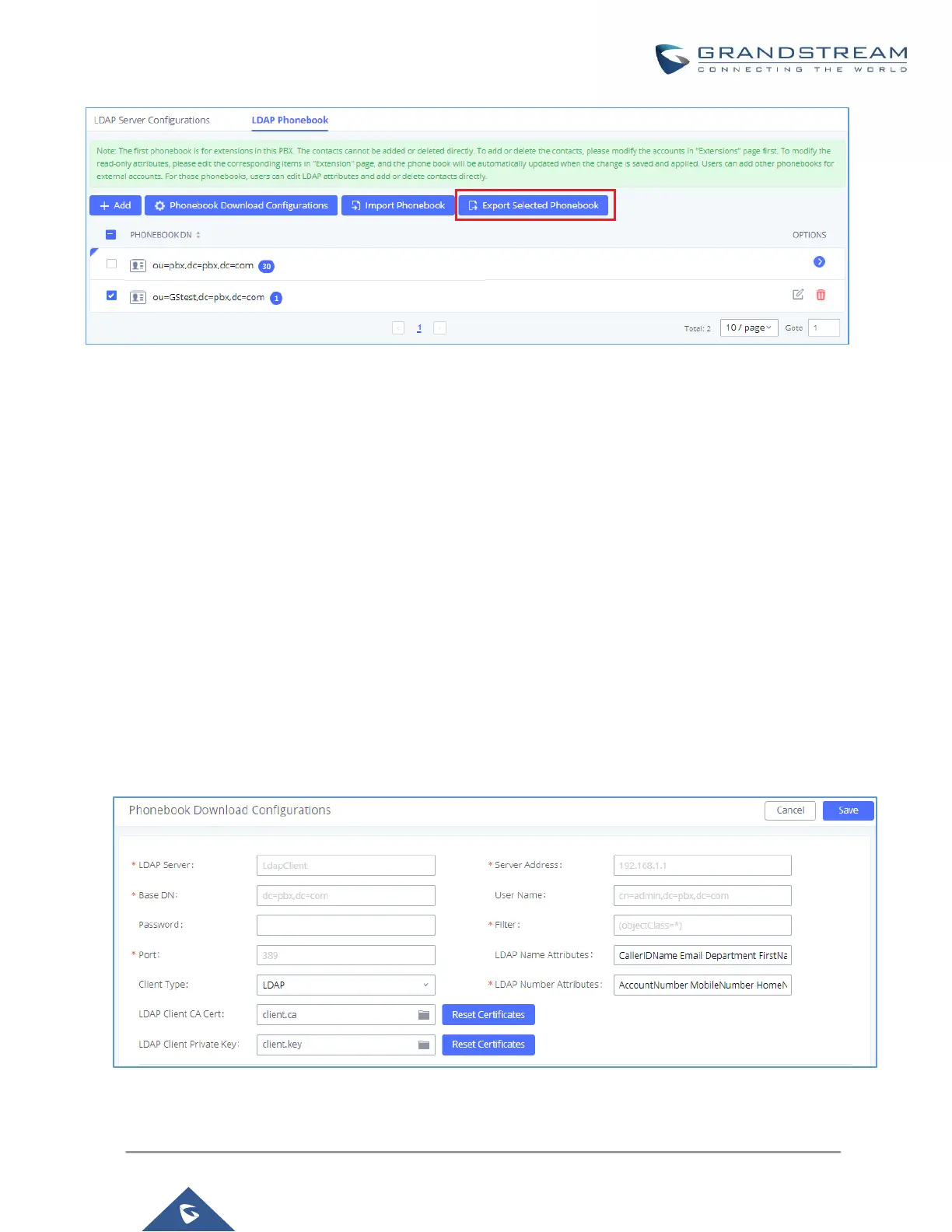

Figure 42: Export Selected LDAP Phonebook
LDAP Client Configurations
The configuration on LDAP client is useful when you use other LDAP servers. Here we provide an example on
how to configure the LDAP client on the UCM.
Assuming the remote server base dn is “dc=pbx,dc=com”, configure the LDAP client as follows:
 LDAP Server : Enter a name for the remote LDAP server
 Server Address : Enter the IP address or domain name for remote LDAP server.
 Base DN: dc=pbx,dc=com
 Username: Enter username if authentication is required
 Password: Enter password if authentication is required
 Filter: Enter the filter. Ex: (|(CallerIDName=%)(AccountNumber=%))
 Port: Enter the port number. Ex:389
 LDAP Name Attributes: Enter the name attributes for remote server
 LDAP Number Attributes: Enter the number attributes for remote server
The following figure gives a sample configuration for UCM acting as a LDAP client.
Figure 43: LDAP Client Configurations
