P a g e | 57

UCM630X Series User Manual

Version 1.0.2.25

OpenVPN®

Client Cert

Upload a client certificate. This file will be renamed as ‘cliend.crt’ automatically.

OpenVPN®

Client Key

Upload a client private key. This file will be renamed as ‘client.key’ automatically.

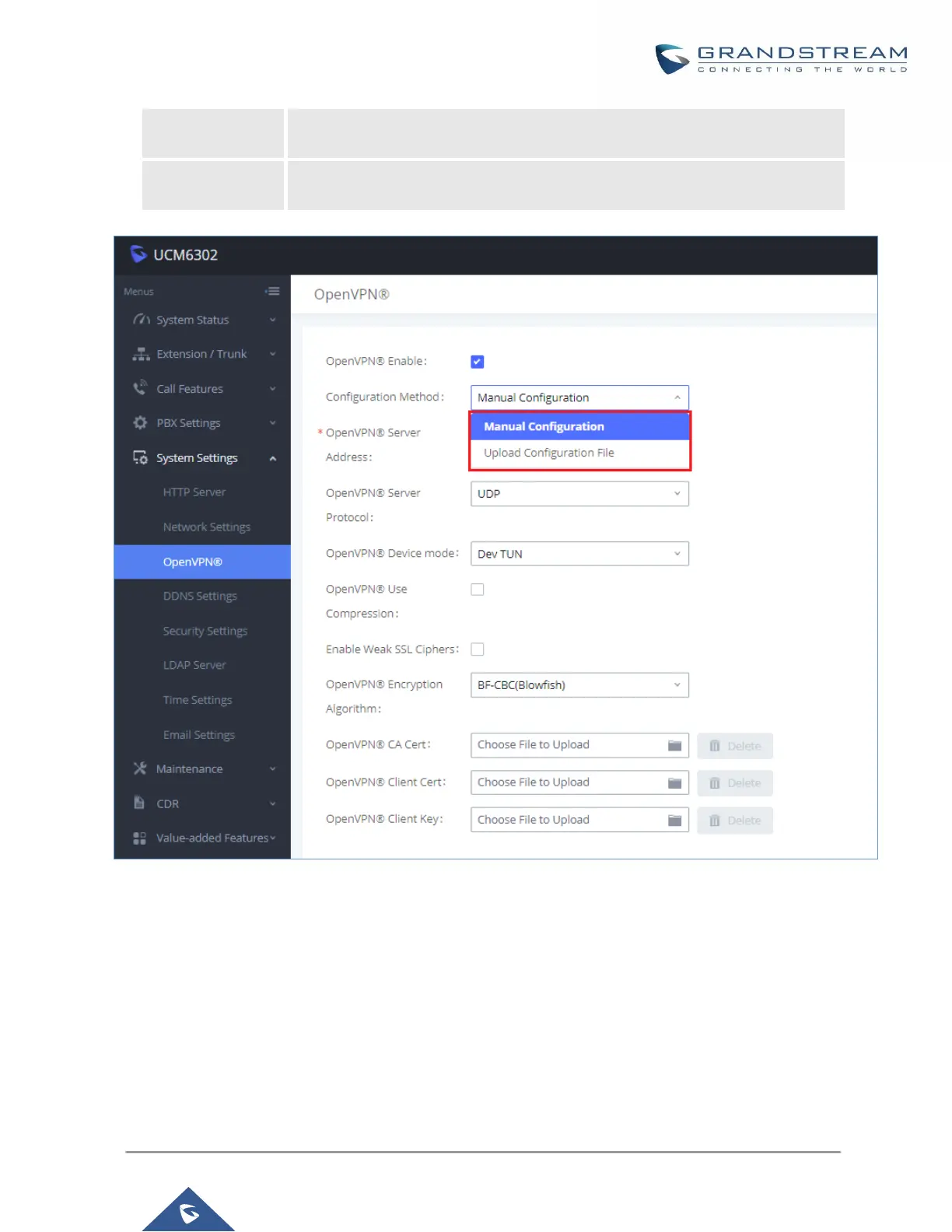

Figure 25: Open VPN® feature on the UCM630X

DDNS Settings

DDNS setting allows user to access UCM630X via domain name instead of IP address.

The UCM supports DDNS service from the following DDNS provider:

 dydns.org

 noip.com

 freedns.afraid.org
