INTERFACE SETTINGS
Analog Hardware
The analog hardware (FXS port and FXO port) on the UCM630X will be listed in this page. Click on to edit
signaling preference for FXS port or configure ACIM settings for FXO port.
Select "Loop Start" or "Kewl Start" for each FXS port. And then click on "Update" to save the change.

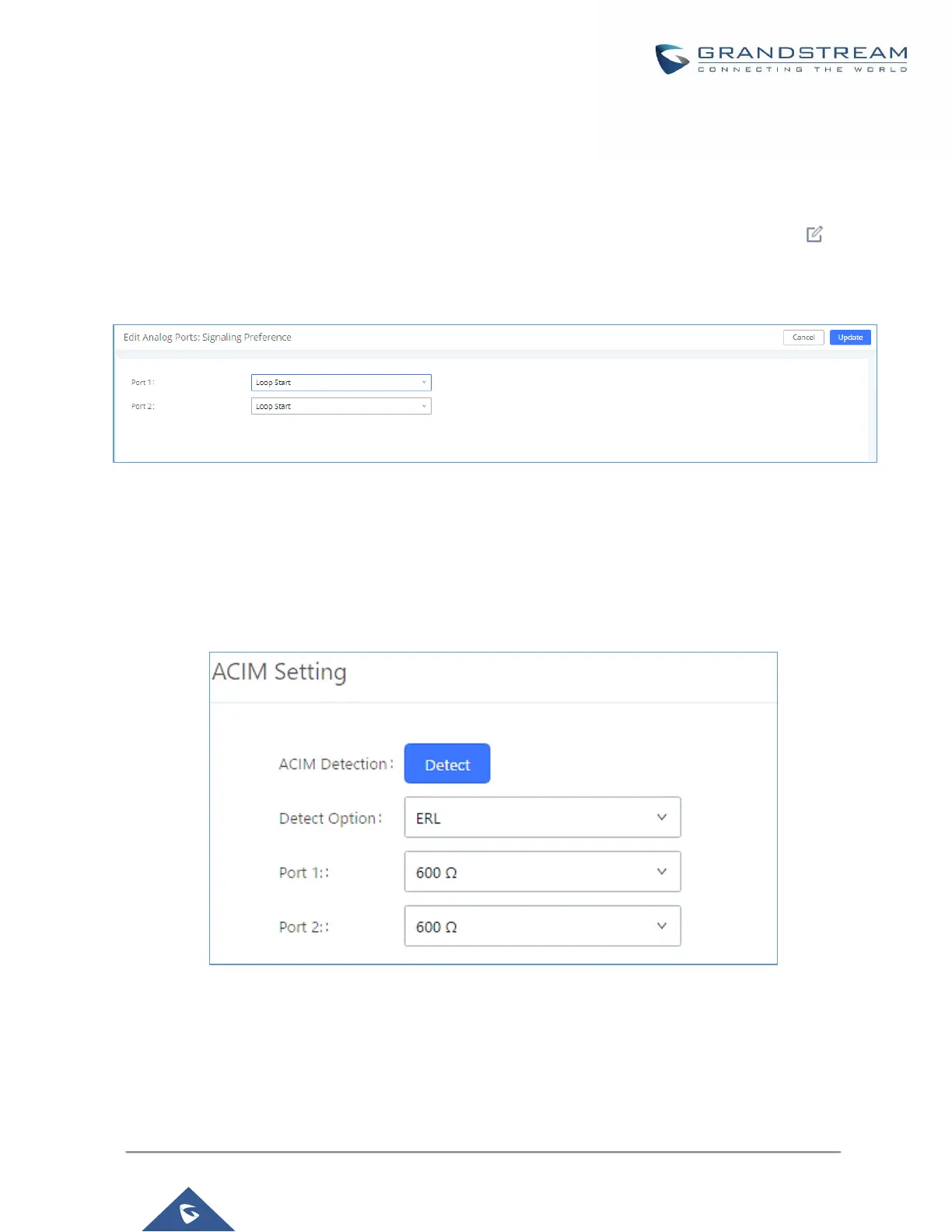

Figure 223: FXS Ports Signaling Preference
For FXO port, users could manually enter the ACIM settings by selecting the value from dropdown list for each
port. Or users could click on "Detect" and choose the detection algorithm, two algorithms exist (ERL, Pr) for the
UCM630X to automatically detect the ACIM value. The detecting value will be automatically filled into the
settings.
Figure 224: FXO Ports ACIM Settings
