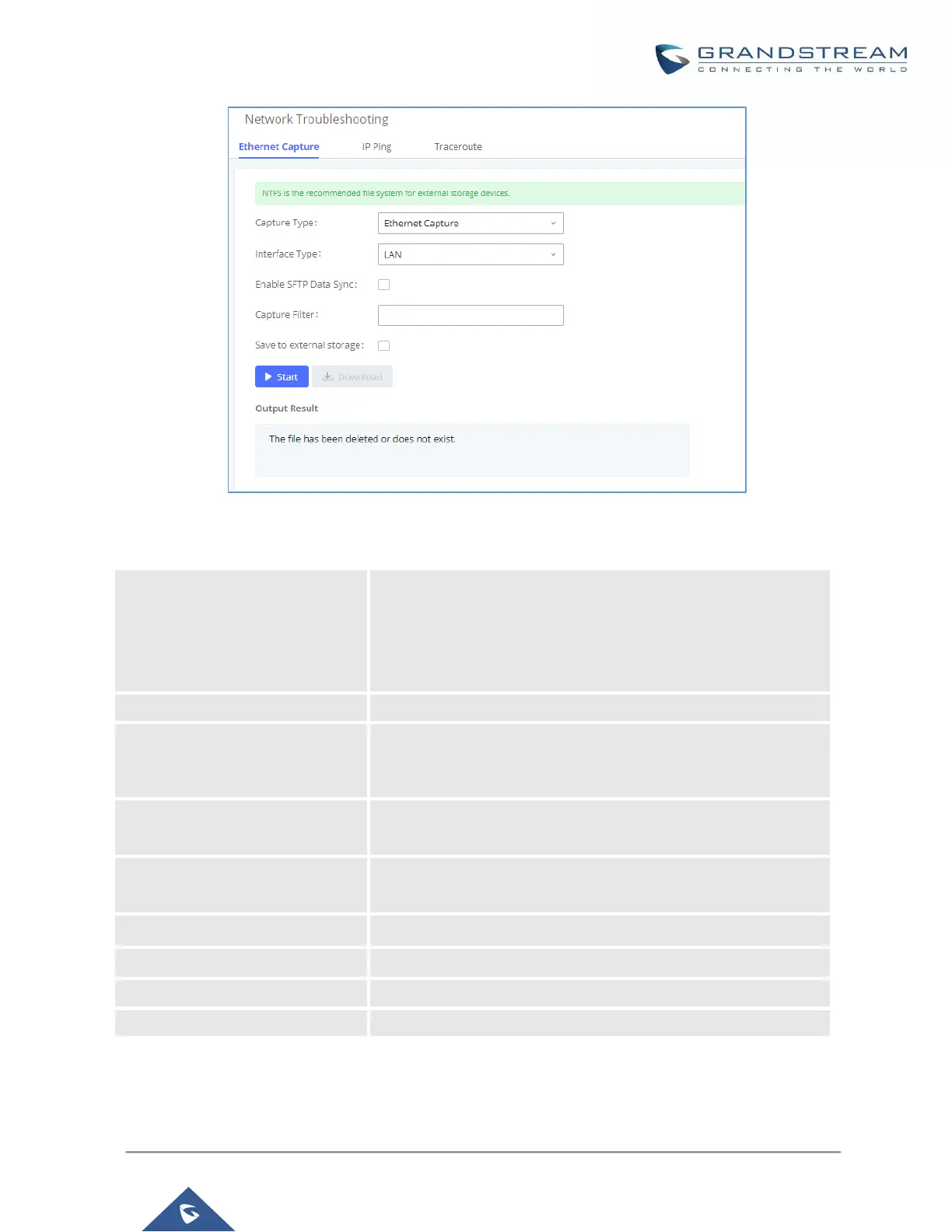

Figure 311: Ethernet Capture
Table 146: Ethernet Capture
Ethernet Capture: Gets a packet capture of all network traffic
going through the device.
WebSocket Capture: Gets a packet capture of WebSocket
protocol. Mainly used for troubleshooting GS Wave Web calling
and conferencing issues.
Select the network interface to monitor.
Check this box to save the capture files in the SFTP server.
Please make sure the configuration of data synchronization works
before.
Storage to External Device
Check this box to activate storage of the capture either on the
USB or SD Card.
Enter the filter to obtain the specific types of traffic, such as (host,
src, dst, net, proto…).
Click to start the trace.
Click to download the trace if trace is stored locally.
The output result is in .pcap format. Therefore, users could specify the capture filter as used in general network
traffic capture tool (host, src, dst, net, protocol, port, port range) before starting to capture the trace.
