8 TROUBLESHOOTING
8.5.5 Self Diagnostic Test
Operation status can be tested by self diagnostic test by operating the sensors and switches following the
instruction on the screen.
Operation
(1) Conrm that the power is turned off.
(2) Turn the power on without loading the media.

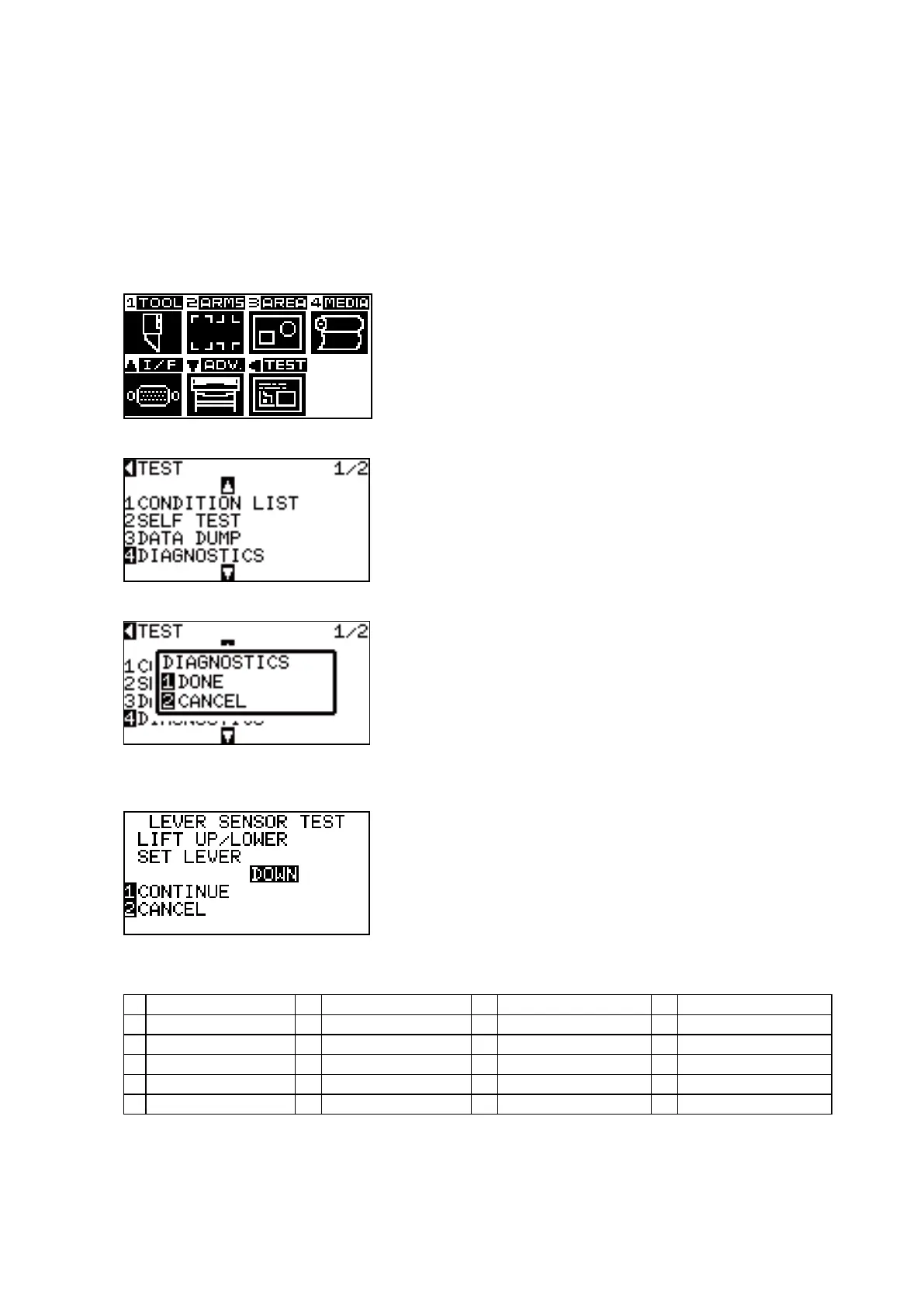

(3) Press the [MENU] key to display the menu below.
(4) Press the POSITION (
t
) key (TEST) to display the menu below.
(5) Press the [4] key (DIAGNOSTICS) to display the menu below.
(6) Press the [1] key (DONE).
The rst testing menu is displayed. And follow the instructions on the menu.
(7) Press the [1] key to continue to the next test, after you check the CAM lever sensor.
(8) The testing items are shown below.
1 Cam lever sensor 2 Home sensor 3 Push roller sensor 4 Rear media sensor
5 Font media sensor 6 X motor signal 7 Y motor signal 8 Tool height signal
9 [1] key 10 [2] key 11 [3] key 12 [4] key
13 POSITION [u] key 14 POSITION [t] key 15 POSITION [q] key 16 POSITION [p] key
17 [ENTER] key 18 [CONDITION] key 19 [ORIGIN] key 20 [FAST] key
21 [CROSS CUT] key 22 [COPY] key 23 [MENU] key 24 [STOP] key
(9) It will return to TEST menu screen once all the test items are completed.
