GRAPHTEC FC8600-60 - Adjusting the Distance Accuracy

FC8600-UM-251-9370 7-22
7 ADJUSTMENT
7.3.6 Adjusting the Distance Accuracy
This adjustment will set the distance accuracy.
If you replace the main board, use the following procedure to input the recorded adjustment values.
If you replace the drive roller, you must adjust the distance accuracy using the following procedure.
How to adjust the distance accuracy
(1) Enter the adjustment menu (see Section 7.3.4).
(2) Load an A2 or larger size sheet of paper in the plotter.
(3) Mountabertippeninthepenholder.

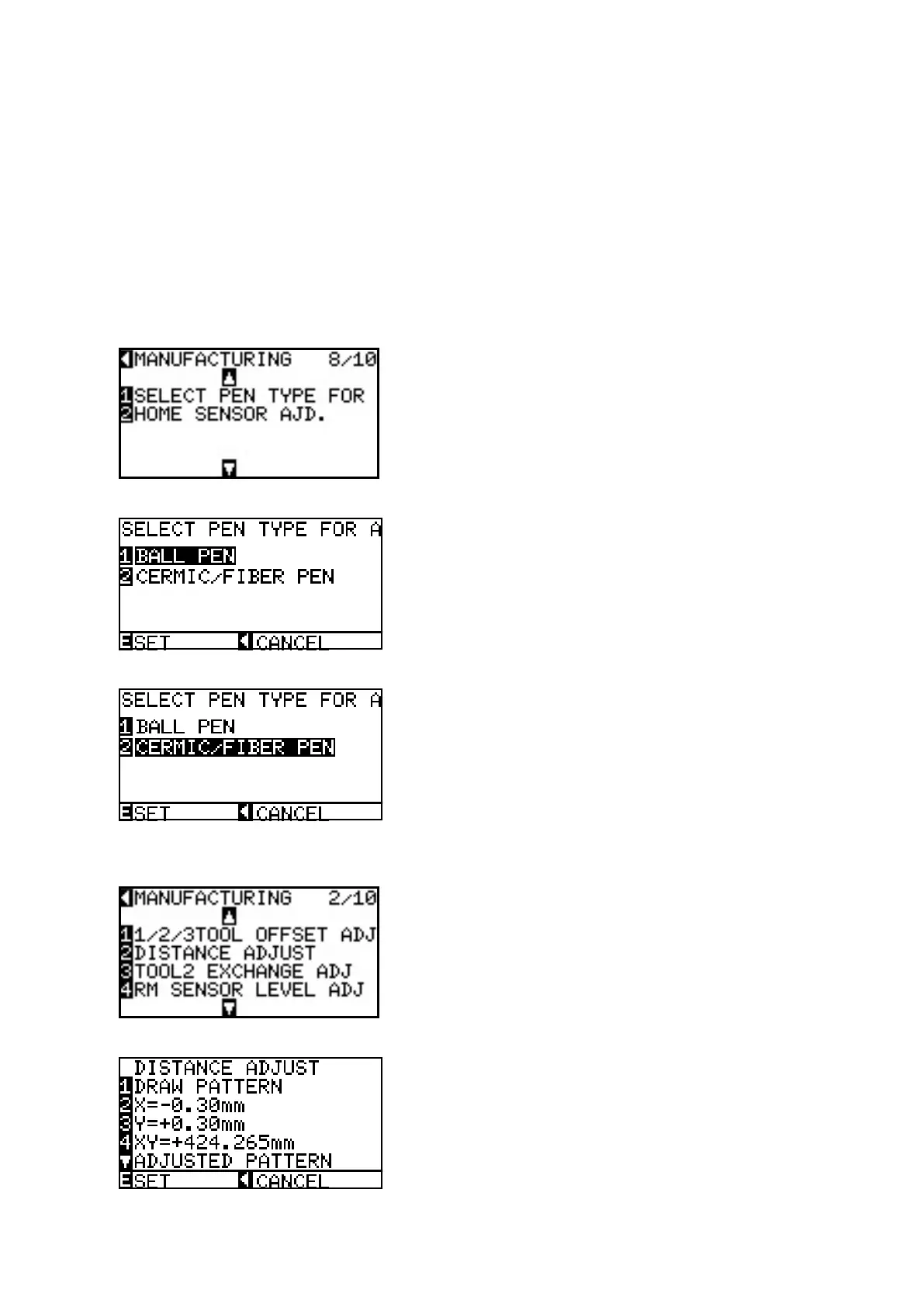

(4) Press the UP arrow or Down arrow key until the menu shown below is displayed.
(5) Press the F1 key to display the menu shown below.
(6) PresstheF2keytoselectthebertippenthemenushownbelow.
(7) PresstheENTERkeytosetthebertippen.
(8) Press the UP arrow or Down arrow key until the menu shown below is displayed.
(9) Press the F2 key to display the menu shown below.
