GRAPHTEC FC8600-60 - Confirming the 2-Pen Model Setting

FC8600-UM-251-9370 7-32
7 ADJUSTMENT
7.3.11 Conrming the 2-Pen Model (2-pen model)
Thissettingwillconrmthattheplotterisa2-penmodel.
If you replace the main board, use the following procedure to make the 2-pen model setting.
(1) Load an A2 or larger size sheet of paper in the plotter.
(2) Enter the adjustment menu (see Section 7.3.4).

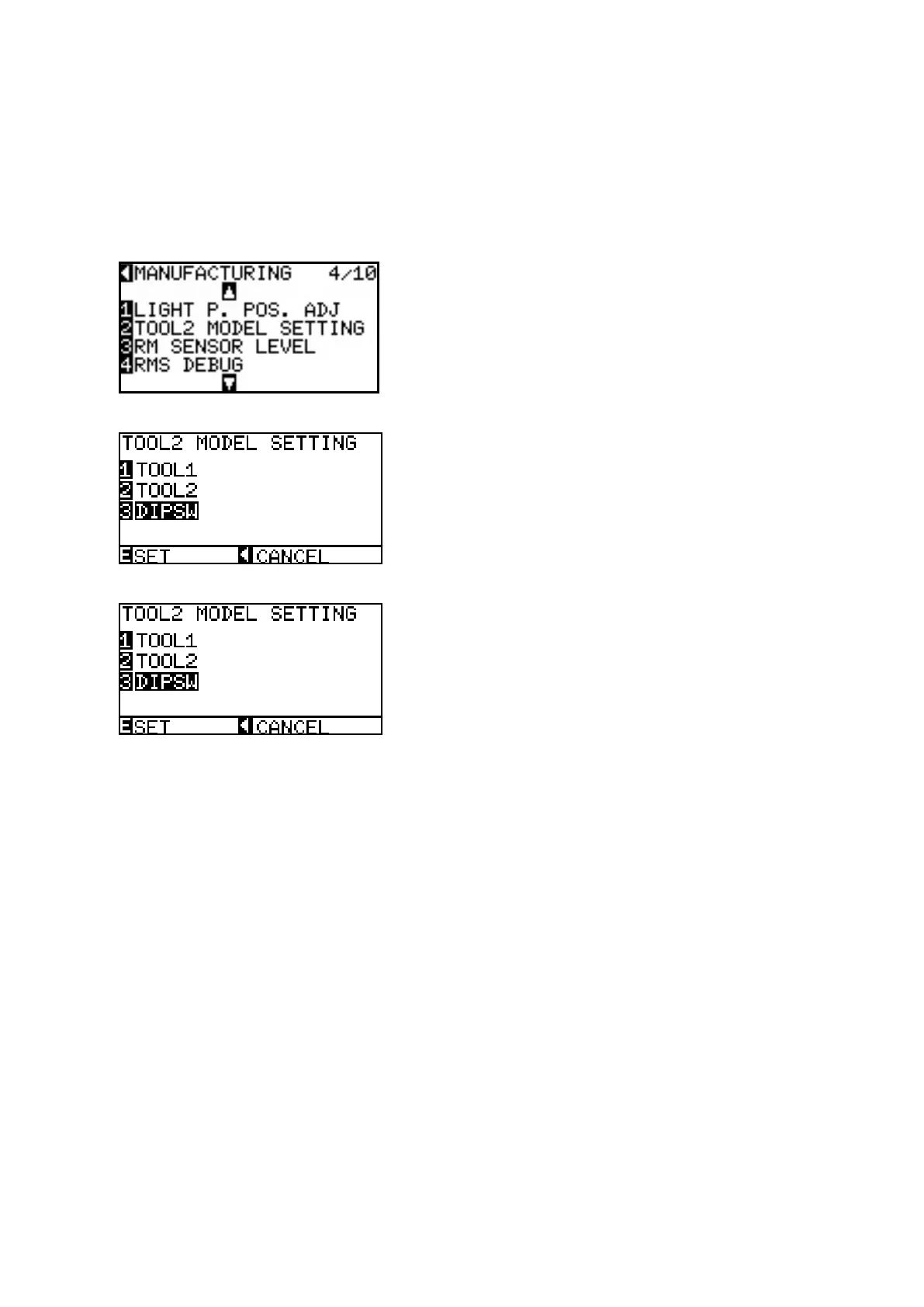

(3) Press the Up or Down position key until the menu shown below is displayed.
(4) Press the F2 key to display the menu shown below.
(5) Press the F3 key to select the DIPSW.
(6) Press the ENTER key to set the DIPSW.
(7) Turn off the power to exit from the adjustment menu.
