8.4.3 Error Messages in HP-GL Emulation Mode
If any of the following command errors occur, they are nearly always caused by one of the reasons below:
(1) The software conguration regarding the output device has been changed.
(2) The plotter’s interface conditions have been changed.
When a command error occurs in HP-GL
TM
emulation mode, therefore, rst check the two corresponding
points below:
(1) Congure the software to drive your plotter, and ensure that the software’s interface conditions are
correctly set.
(2) Ensure that the plotter’s interface conditions are set to match those of the software.

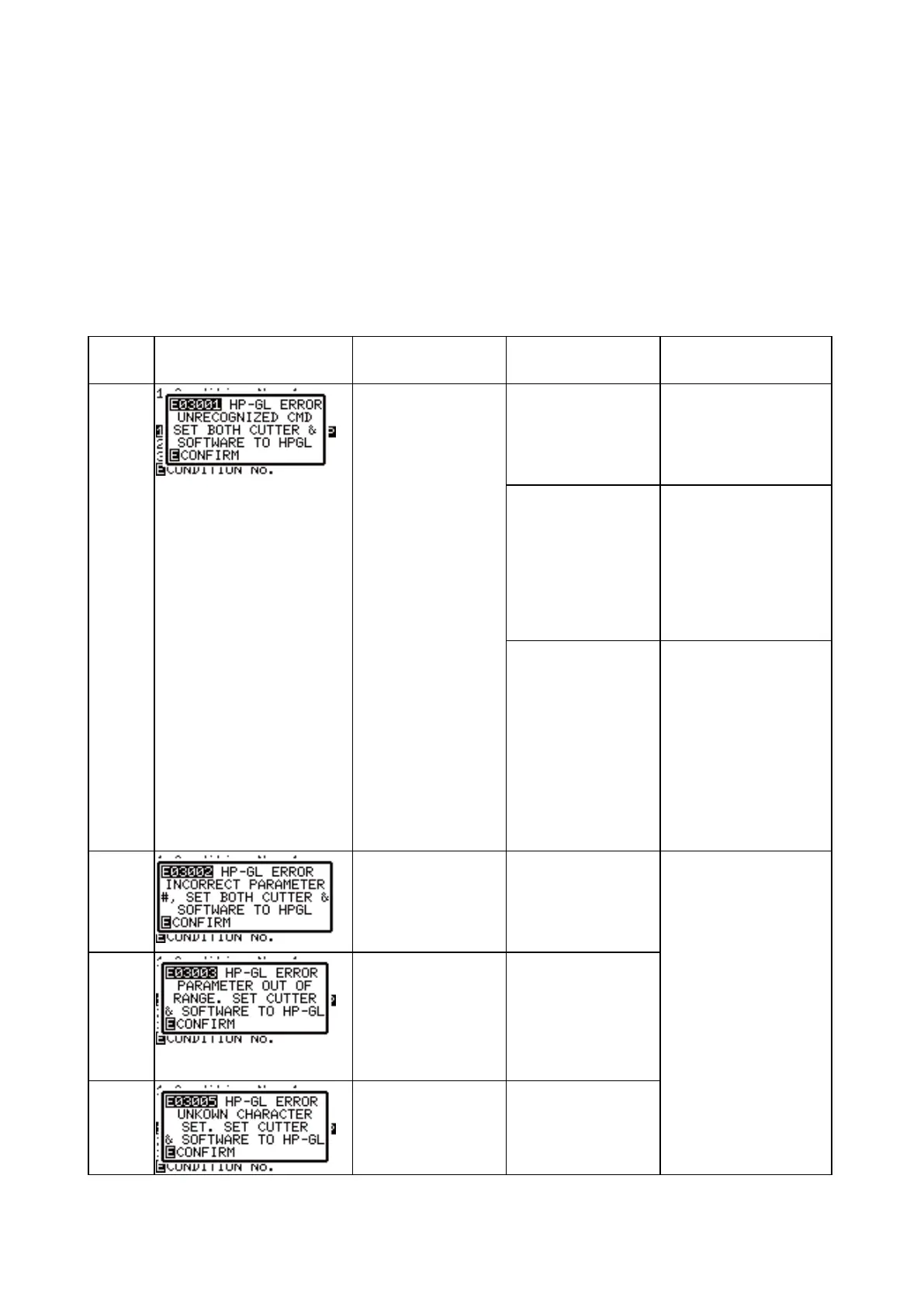

Error
code
Error Display Cause Verication item Solution
E03001
An unrecognizable
instruction was
executed.
Execute a
recognizable
command.
(1) Did the plotter
receive an
unrecognizable
command?
No .....Verify item (2)
Yes ....Send correct data
to plotter.
(2) Is there any
noise on the
line?
No .....Verify item (3)
Yes ....Check the
interface cable
or move the
plotter to another
location.
(3) Has the correct
model name
been set for the
plotter?
No .....Set the correct
model name.
Congure your software
application menu to
permit Graphtec plotter
control. Re-specify the
software application’s
interface conditions.
E03002
A command was
executed with the
wrong number of
parameters.
Execute the
command with the
correct number of
parameters.
Congure your software
application menu to
permit Graphtec plotter
control. Re-specify the
software application’s
interface conditions.
Set the correct model
name if it was incorrect.
E03003
A command
containing an
unusable parameter
was specied.
Execute the
command with
its parameters
specied within their
permissible ranges.
E03005
An unrecognizable
character set was
specied.
Specify a
recognizable
character set.
