FC8600-UM-251-9370 2-8
2 PARTS NAMES and FUNCTIONS
2.3 Attaching a Tool
Attach a tool (cutter pen, plotter pen) to the plotter�
Attaching a Tool
When mounting the tool in the tool holder, push the tool all the way into the holder until its ange contacts
the upper part of the holder and then tighten the screw rmly. To prevent injury, avoid touching the tool
immediately after the cutting plotter is turned on or whenever the tool is moving� It is explained here using
cutter pen as anexample�

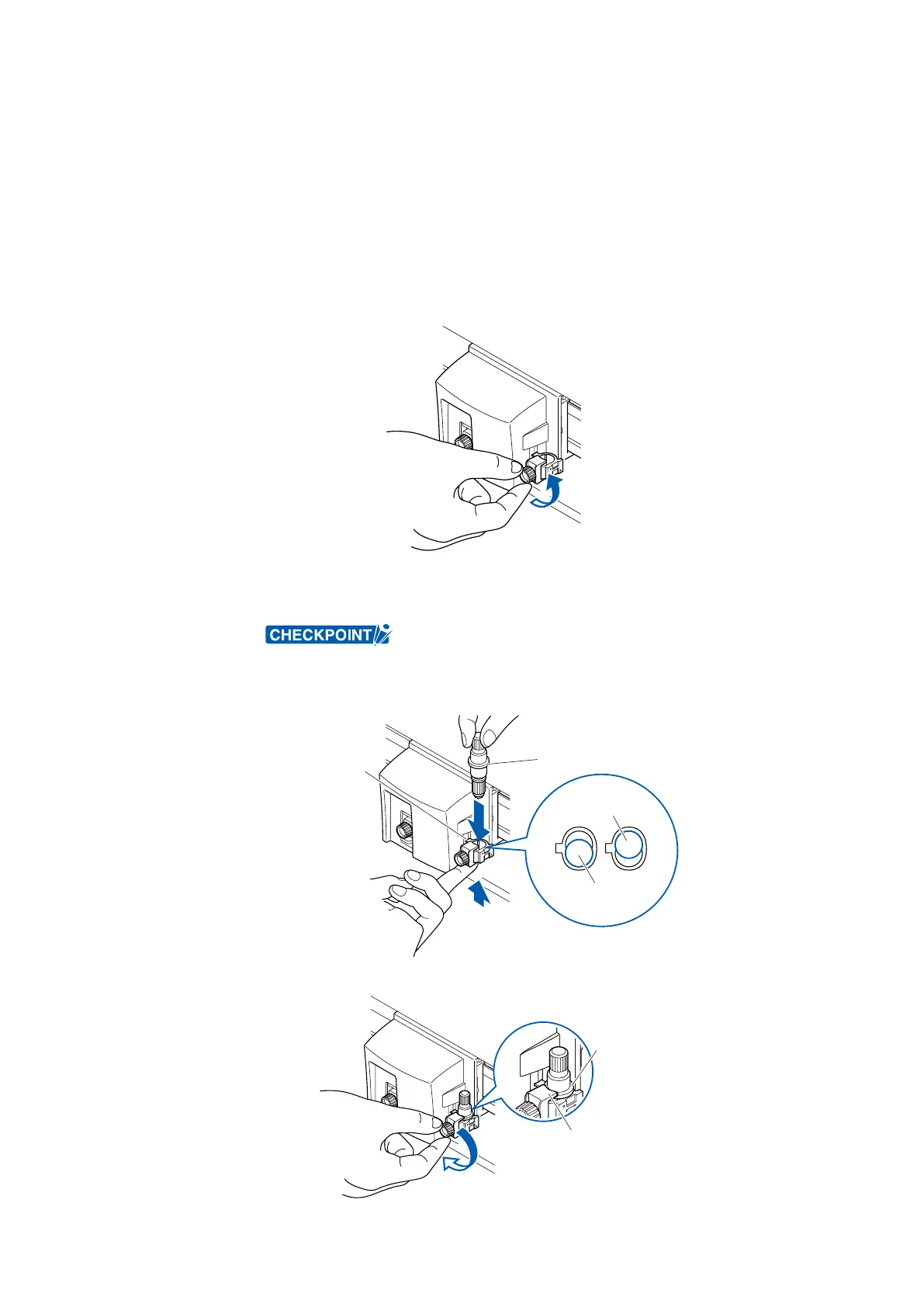

(1) Loosen the pen holder screw�
(2) While pushing the tool holder in the upward direction, push the tool all the way into the holder until its
ange contacts the upper part of the holder.
• When pushing the tool holder with your ngers, the blade tip may be protruding.
Take care not to cut your ngers.
For half cutting
(backward)
For cutting out
(forward)
Upper part of
tool holder
Flange
(3) Make sure that the tool bracket is engaged on the tool’s ange, and then tighten the screw.
Bracket to hold tool
Flange
