2 PARTS NAMES and FUNCTIONS
Attaching a Pen to the Two-Pen Holder (Option)
The two-pen holder is a factory-installed option, and cannot be retrotted.

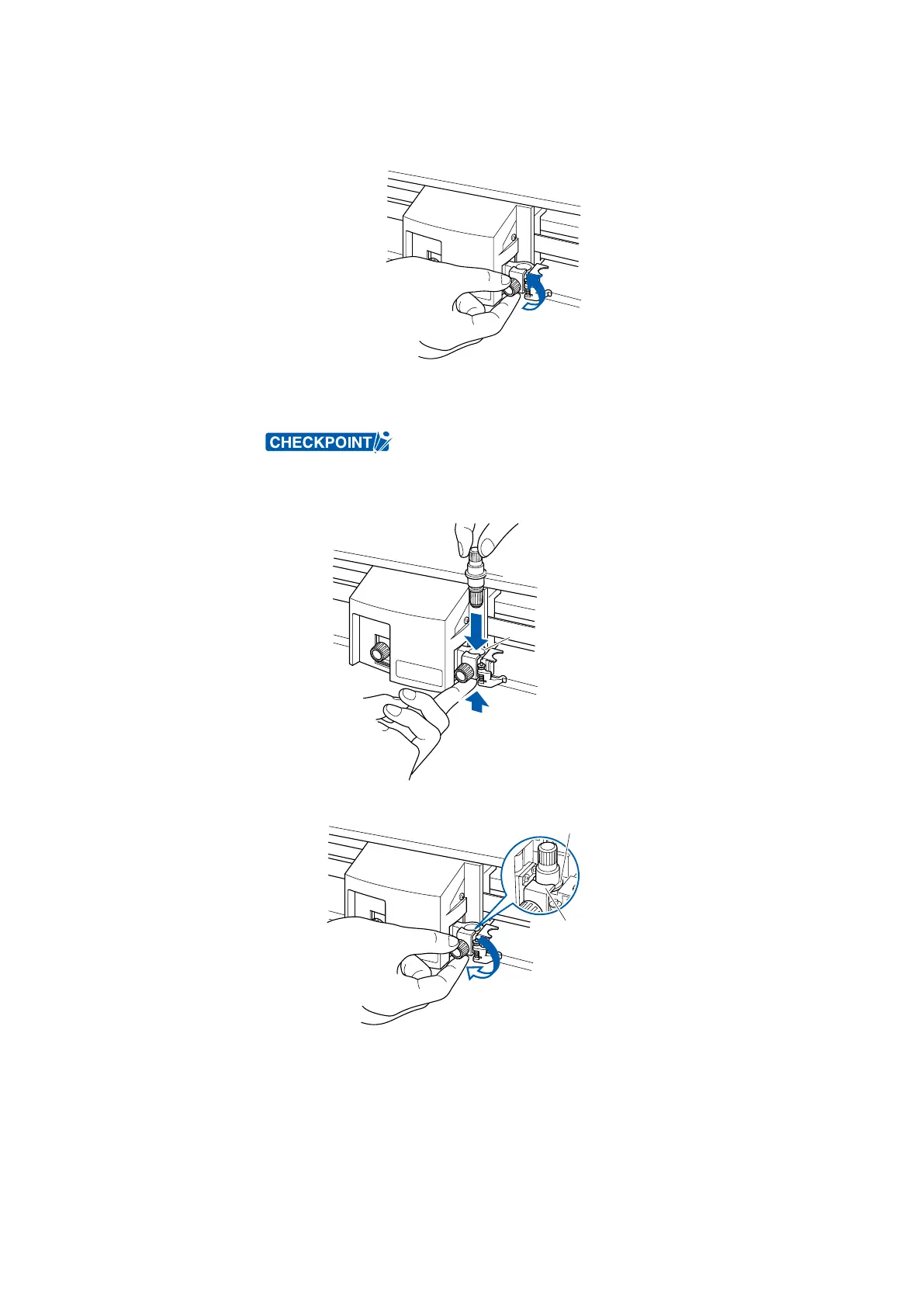

(1) Loosen the pen holder screw�
(2) While pushing the pen holder in the upward direction, push the pen all the way into the holder until its
ange contacts the upper part of the holder.
• When you push the pen holder with your ngers, the blade tip may be protruding.
Take care not to cut your ngers.
Flange
Upper part of pen holder
(3) Make sure that the pen bracket is engaged on the pen’s ange, and then tighten the screw.
Bracket to hold pen
Flange
