GRAPHTEC FC8600-60 - Registration Mark Sensor Assy Parts

FC8600-UM-251-9370 9-6
9 PARTS LIST
9.4 Registration Mark Sensor Assy
No. Part No. Description Q’ty Remarks Rank
1 621403200 Spring, Cover Down 1 C
2 621263340 Spring, RMS Up 1 C
3
500052472
Core, Solenoide 1 B
4 Solenoide 1
5 621263312 Bracket, RMS sensor 1 C
6 792800704 Registration Mark Sensor Board 1 A
7 621263331 Paper Hold Down B 1 C
8 621263322 Paper Hold Down A 1 C

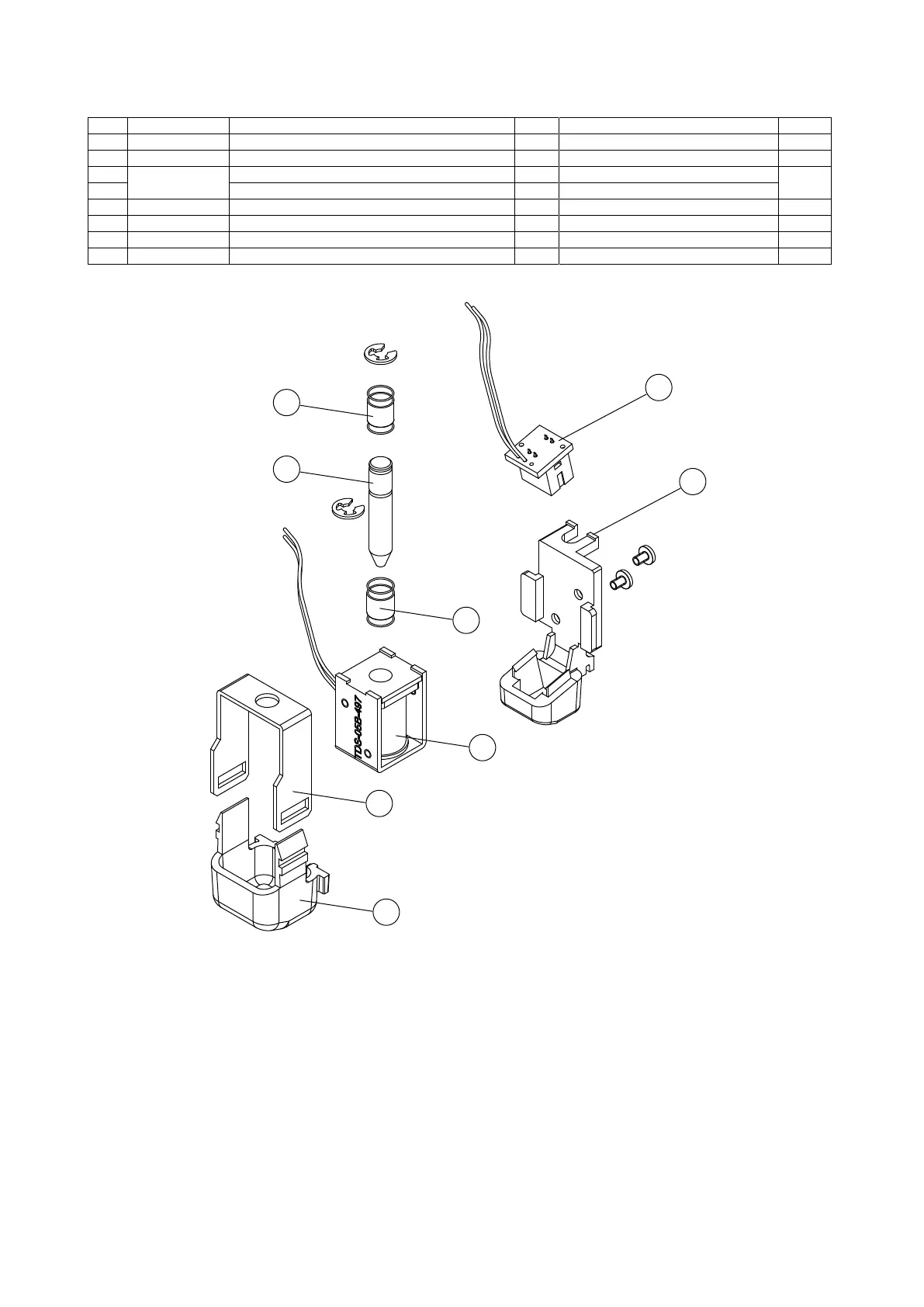

Registration Mark Sensor Assy
1
3
2
6
4
7
8
5
