FC8600-UM-251-9370 2-5
2 PARTS NAMES and FUNCTIONS

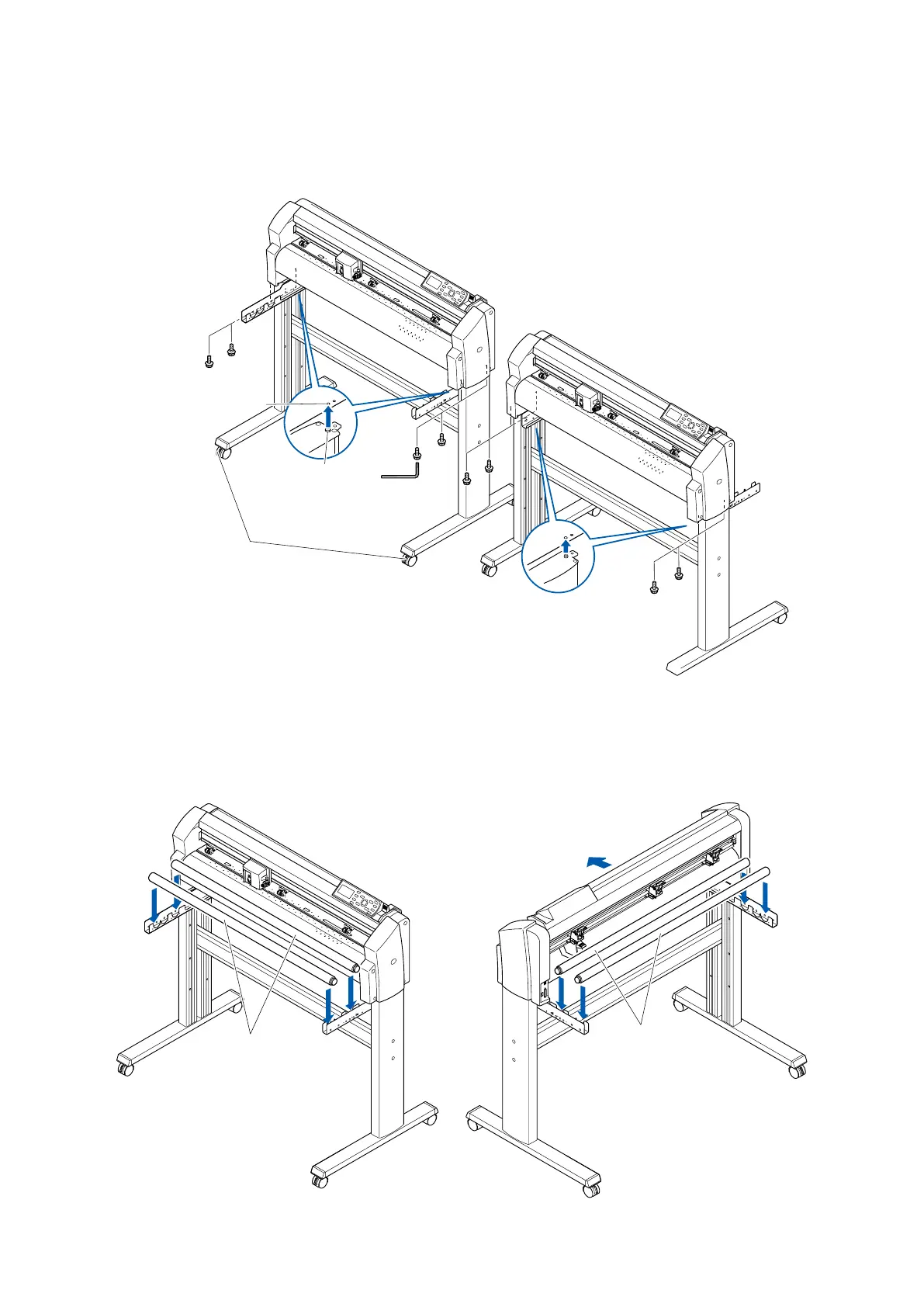

(4) Mount the plotter on the stand by inserting the positioning pins on the stand into the positioning holes
on the underside of the plotter� Fasten with four socket head cap screws (two on each side), using the
Allen wrench� The cutting plotter mounting direction is different for the front loading and the rear loading
models�
Socket head
cap screw
Positioning pin hole
Caster stoppers
Socket head
cap screw
Positioning pin
<Front loading>
<Rear loading>
(5) Tighten the socket head cap screws loosely fastened in Step 2�
Mounting the stock rollers
Insert the stock rollers into the slots on the media stocker brackets�
<Front loading>
Stock rollers
<Rear loading>
Stock rollers
Front
