FC8600-UM-251-9370 7-10
7 ADJUSTMENT

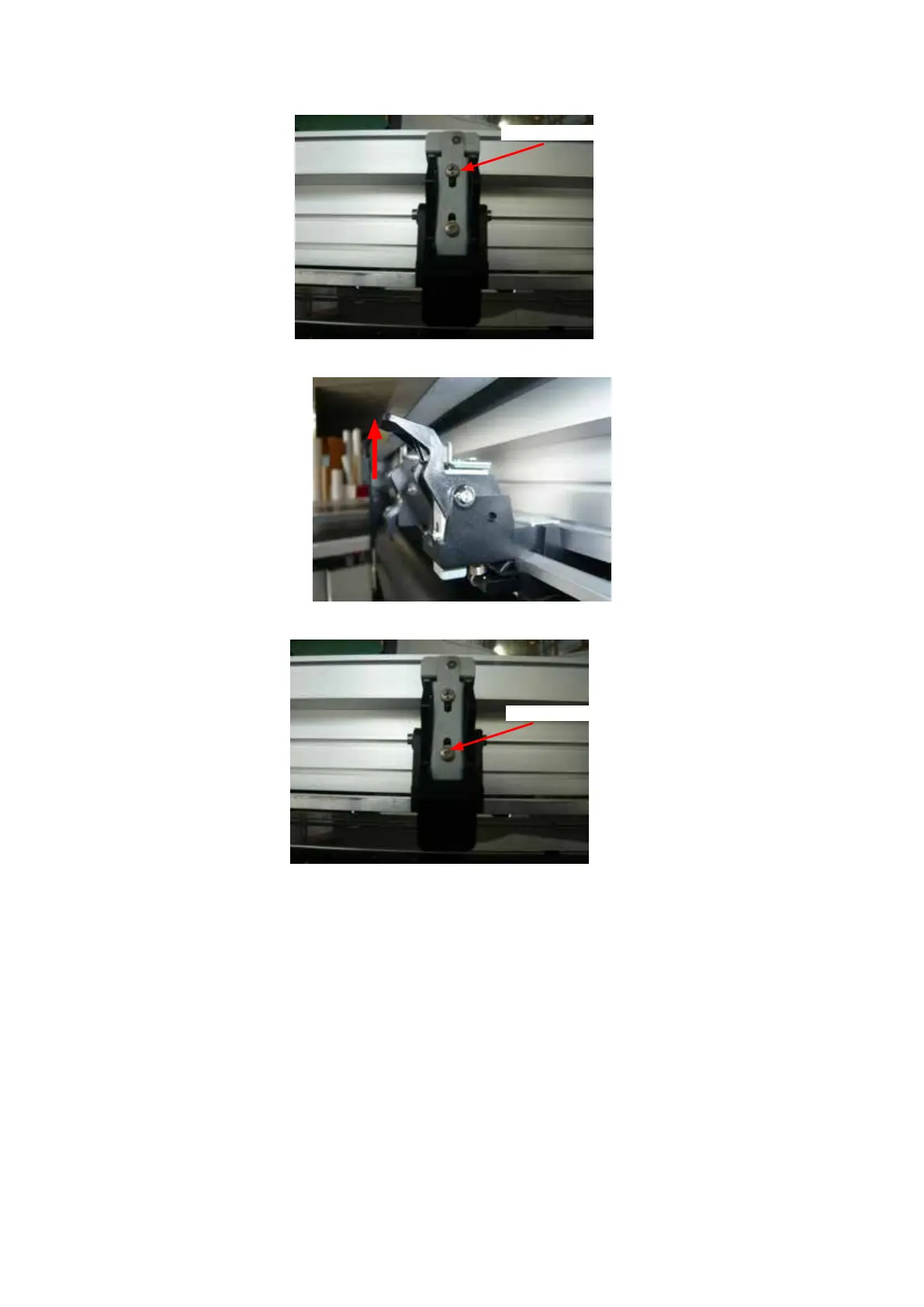

(7) Tighten the screw (upper screw) holding the force adjustment bracket as shown in the picture below.
Tighten this screw.
(8) Set the push roller force lever to the upper position for the low force.
(9) Loosen the screw (Lower screw) holding the bracket as shown in the picture below.
Loosen this screw.
