7 ADJUSTMENT

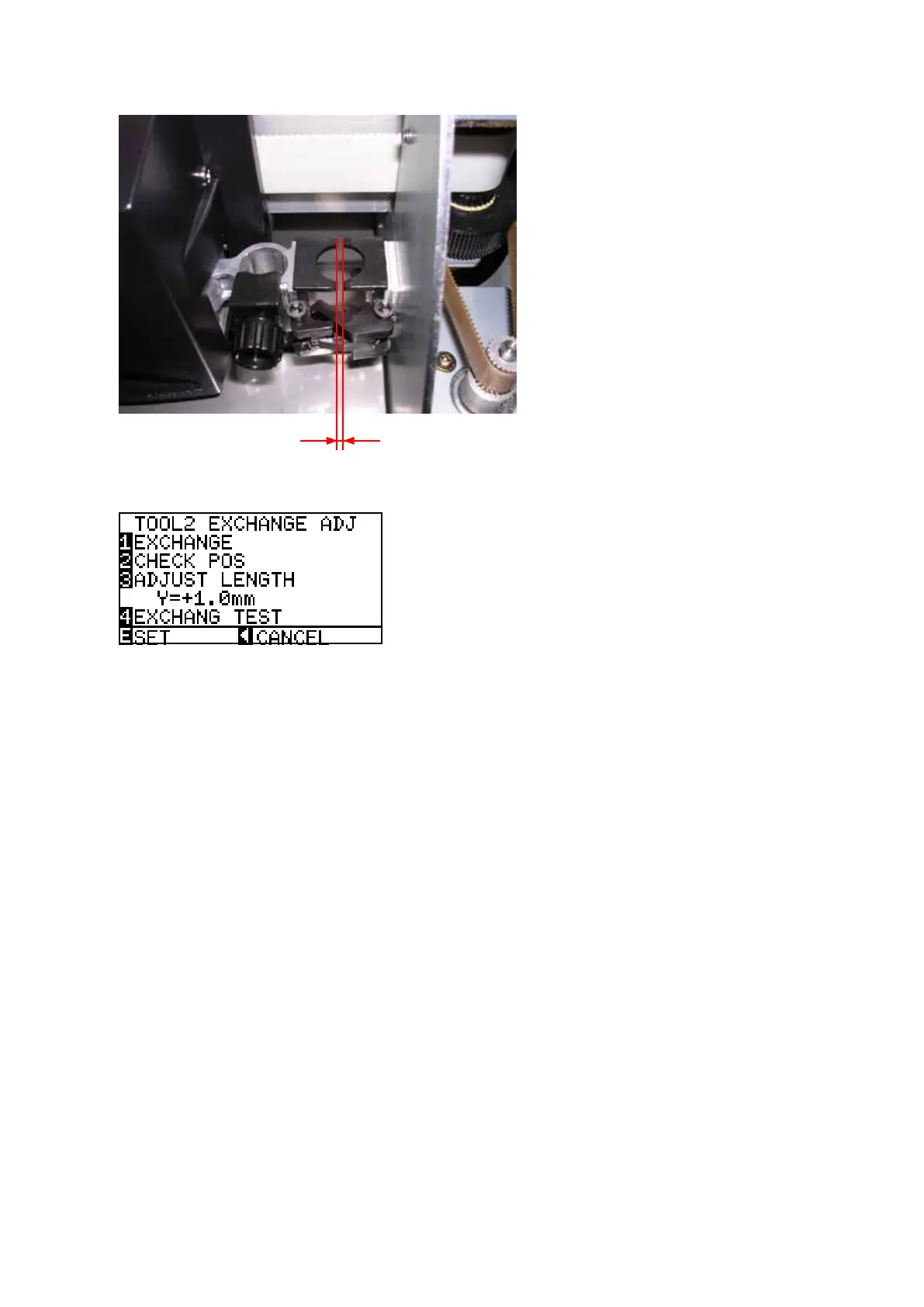

(9) Press the ENTER key when the gap became to 1.1 mm.
This gap should be 1.1 mm.
(10) Mountabertippeninthe2ndpenstation.
(11) PresstheF4keytoconrmthatthepenexchangingisperformedcorrectly.
(12) If the pen exchanging is performed correctly, press the ENTER key to store the setting and complete
the adjustment.
