Positive slope<
Positive slope=
Negative slope>
Negative slope<
Negative slope=
Conditions of signal slope relative to set
slope (set by time)
Time setup 〈Set time〉
Revolve the [UNIVERSAL] knob to set the
slope time.
Time setup range: 20ns-10s.
Next Page 1/2 Skip to page 2 of the slope trigger menu.

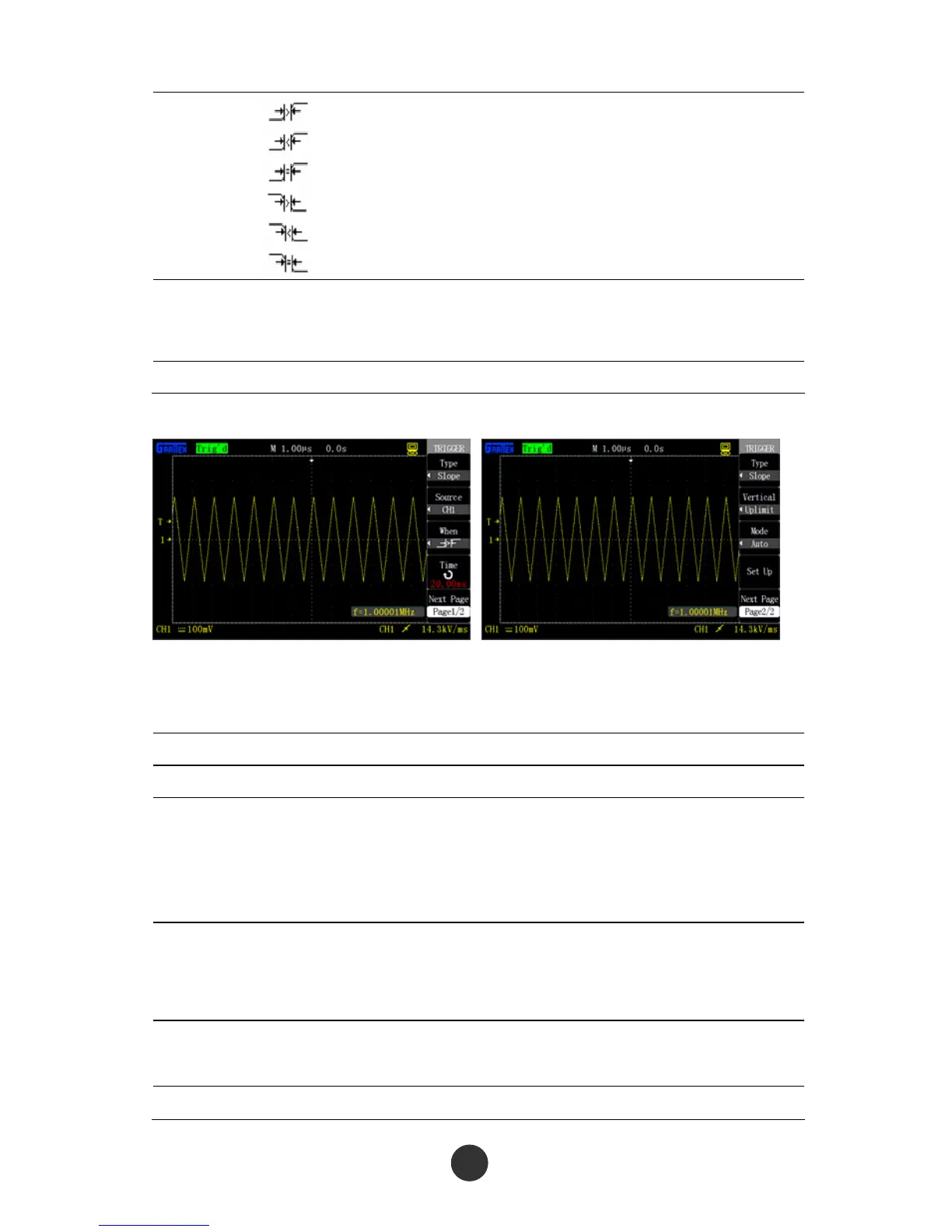

Figure 2-33 Page 1 of slope trigger menu Figure 2-34 Page 2 of slope trigger menu
Table 2-20 Page 2 of the slope trigger function menu:
Option Setup Description
Type Slope
Vertical
window
Upper boundary
Lower boundary
Upper and lower
boundaries
Select boundary, and regulate the size of the
window by the [LEVEL] knob.
Trigger mode
Auto
Normal
Single
See the trigger mode in table 2-13.
Setup
Skip to the trigger setup menu (See table
2-14).
Back Page 2/2 Back to page 1 of the slope trigger menu.
To Next Page
