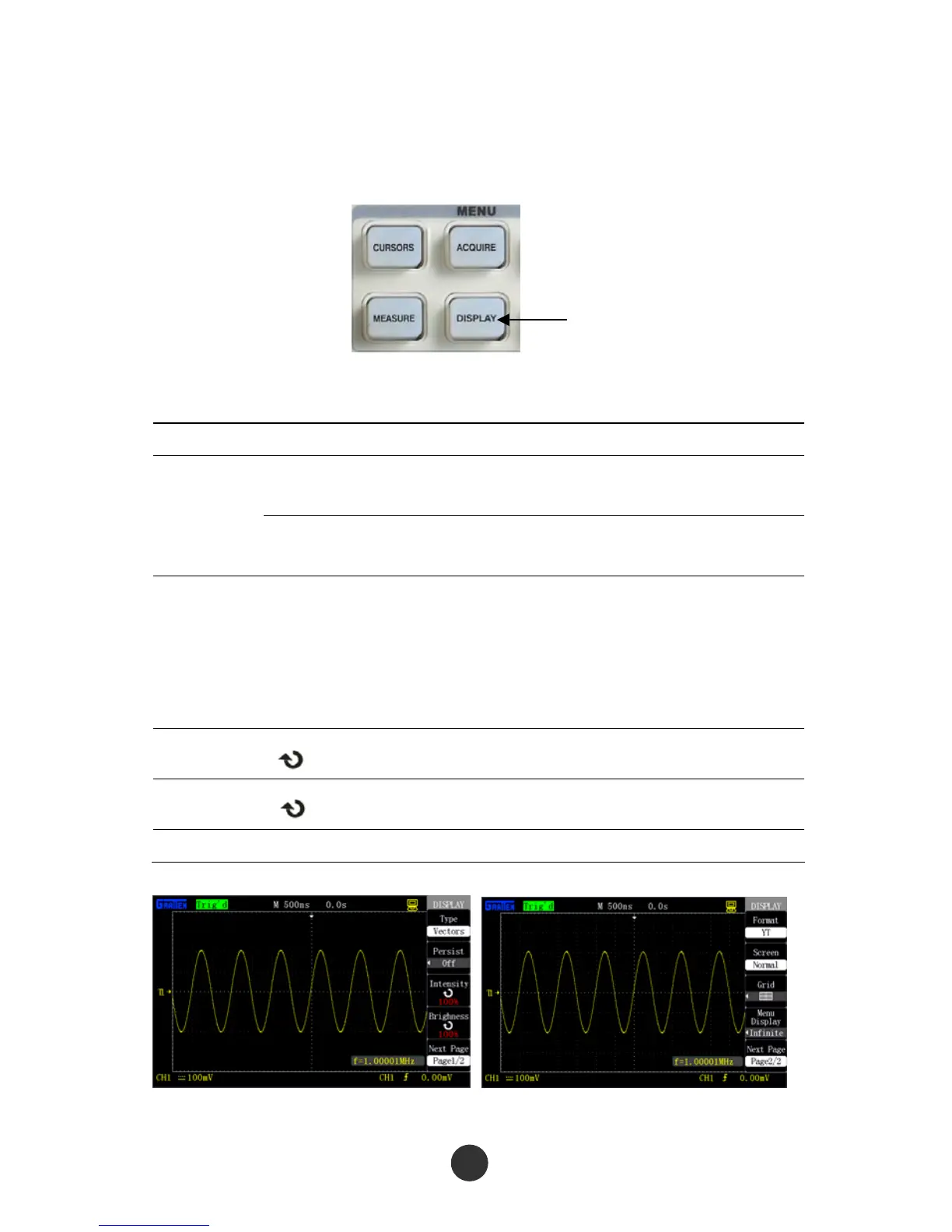

2.9 Display system
[DISPLAY] is a function key of the display system.
DISPLAY
Table 2-29
Page 1 of the display system function menu:
Option Setup Description
Vector
The sampling points are displayed in a link line
manner.
Type
Point
No interpolation link line is displayed between the
sampling points. Display sample points directly
Persist
OFF
1s
2s
5s
Infinite
Set the maintained display time length of each
displayed sampling point.
Intensity
Set the waveform brightness by the [UNIVERSAL]
knob.
Grid
brightness
Set the grid brightness by the [UNIVERSAL] knob.
Next Page 1/2 Skip to the next page.
Trigger electric level knob
Figure 2-45 Page 1 of the display menu Figure 2-46 Page 2 of the display menu
48
