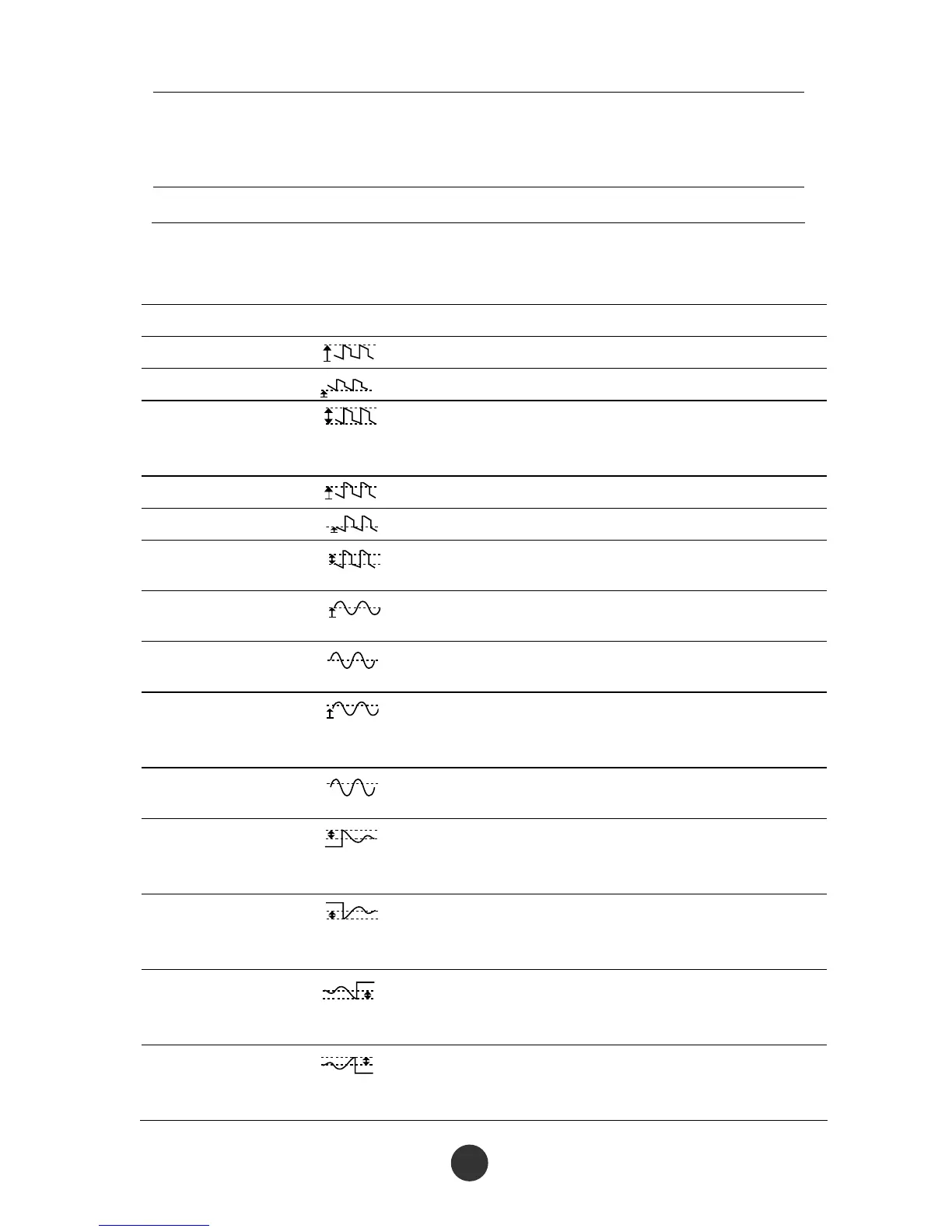

Table 2-40 Measurement types:
Measurement types Description
Maximal value Peak forward voltage
Minimal value Peak inverse voltage
Peak-to-peak value
Calculate the absolute difference between the
maximal value and the minimal value of the whole
waveform.
Top value Maximum voltage of the whole waveform
Bottom value Minimum voltage of the whole waveform
Amplitude
Voltage between the top value and the bottom
value of the waveform
Periodic average value
Arithmetic mean value of the waveform in the first
period
Average value
Calculate the arithmetic mean voltage in the
whole recording.
Periodic mean
square root
Namely an effective value. Calculate the actual
mean square root value of the waveform in the
first complete period.
Mean square root
Actual mean square root voltage of the whole
waveform
ROVERShoot
Ratio of the difference of the maximal value and
the top value of the waveform to the amplitude
after rising
FOVERShoot
Ratio of the difference of the minimal value and
the bottom value of the waveform to the
amplitude after falling
RPREShoot
Ratio of the difference of the minimal value and
the bottom value of the waveform to the
amplitude before rising
FPREShoot
Ratio of the difference of the maximal value and
the top value of the waveform to the amplitude
before falling
