SWITCH SET

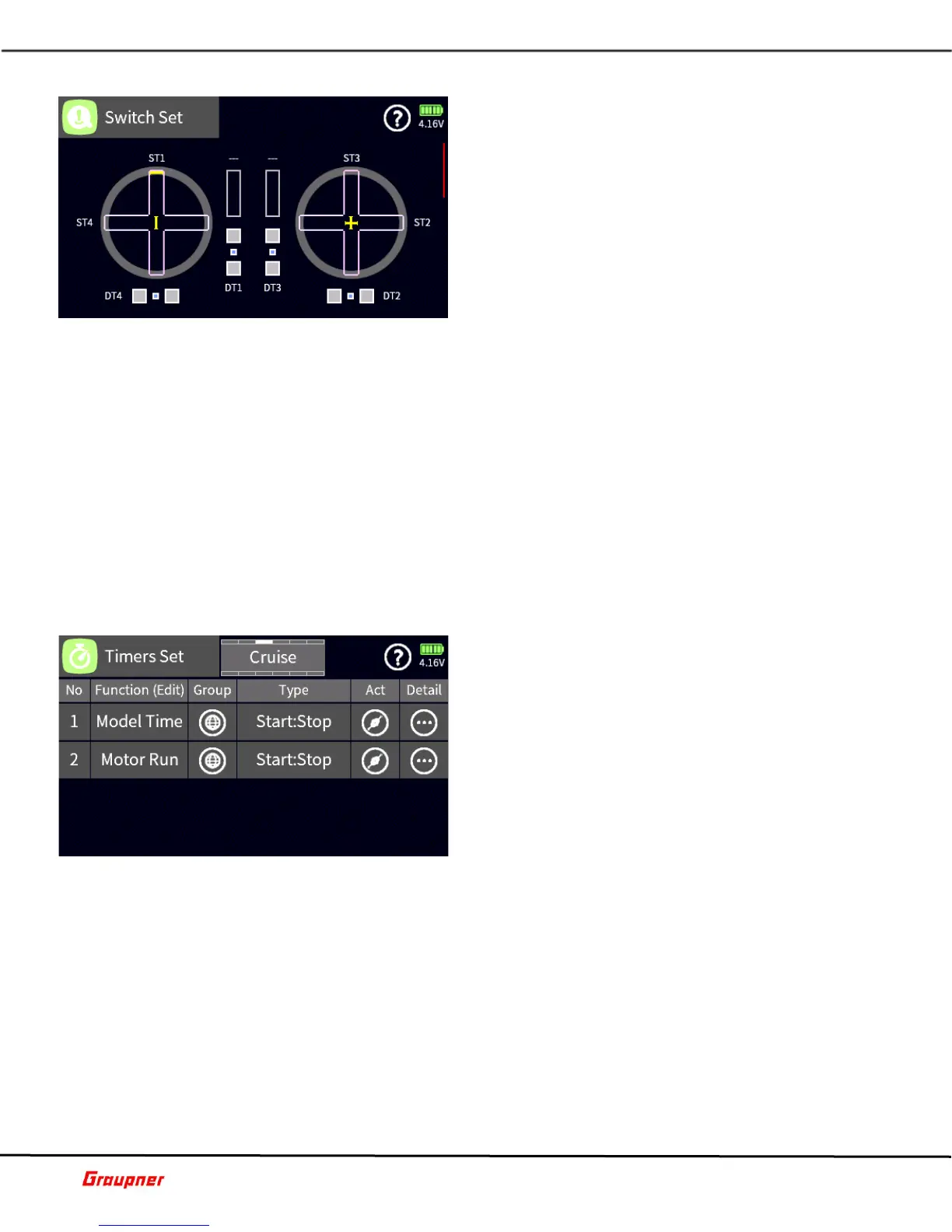

In the Switch Set menu, you can set the switching
point for controls, sliders and switches that can be used
for activating mixes and controls when a logic control
is used. It also allows you to set the trim steps and
speed for the digital trims that are used with control
surfaces such as ailerons and elevator.
Each trim and control can be independently set. To
view the detail menu, tap on the DT, ST, LV or DV
control.
In the configuration dialog you can set the following
parameters.
Switching Position – The default is set at 75% for each travel direction. This indicates that
when the control is moved past the +75% or -75% position, a trigger event will happen
that can be used with a logical switch. Lowering the values will cause the trigger point to
be closer to the center point of the control.
Digital Trim – The default values will determine how many steps a digital trim control will
have and how fast it will travel. Setting the steps to zero will disable the digital trim travel.
The switch set menu has additional pages that can be accessed with the arrow keys (top 2
keys left of screen) or by swiping the screen.
The secondary screen shows the current position of the mz-32 digital trims (DT), knobs
(DV), levers (LV) and switches (SW). Moving each control or switch will animate the control
on the screen while tapping on the control will open the configuration dialog.
The additional screens on the switch set menu are for future development.
B13S1
TIMERS SET
The mz-32 supports up to 6 user timers for time or lap
recording. Timers can be either global or phase
dependent.
Adding a new timer is done by tapping on the + sign
or on the number of an existing entry to bring up the
selection toolbar.
When tapping on the + sign, the timer type dialog
appears where you can select the type of timer, lap or
start/stop timer.
When the selection toolbar is active, you can perform
delete, re-order or rename functions.
The group column shows if the timer is global or phase dependent. To change group status,
tap on the group icon.
You can change the timer type by tapping on the type column.
The Act icon indicates if the timer is active or disabled.
Tapping on the Detail icon opens the timer set detail menu.
B10S1
