Page 26 of 42 Help-Ref-EN-V1.0
Tap on the edit icon (pencil) to edit the mixer name.
The edit toolbar has also options to delete (trash can) a mixer and change its sorting order
(up and down arrow icons).
Tap on enter icon (check mark) to complete the changes.
Tapping on the Master or Slave field will activate the channel selection dialog.
Tap on the Diff field to set the differentiation value (reduced deflection of control surfaces
by Master channel) between the two outputs.
F15S1

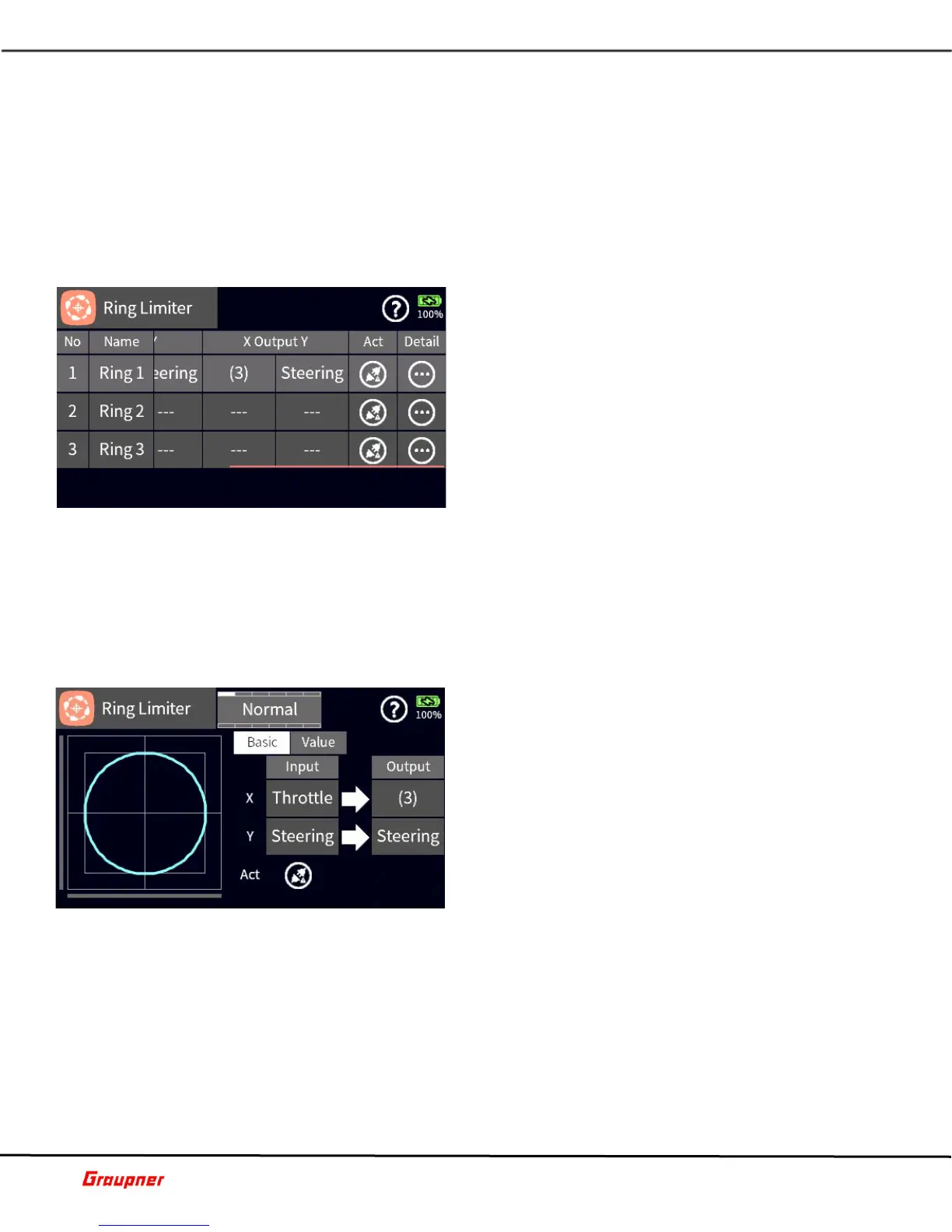

RING LIMITER
A ring limiter ensures that when using a cycloidal drive
such as a Voith-Schneider drive, the servos do not run
into the limit when the control sticks are moved into
the corners.
There are a total of three ring limiters available.
In the No column, the number of the ring limiter is
listed.
In the Name column, the name of the ring delimiter is
shown.
In the columns X input Y, the axes for the input X and
input Y are assigned by tapping on the field where you
can select the corresponding input.
In the columns X output Y, the axes for the output X and output Y are assigned by tapping
on the field where you can select the corresponding input.
Tapping on the Act icon determines if the limiter mix is activated or deactivated.
Tap on the detail icon to enter the Ring Limiter Detail menu.
F16S1
RING LIMITER DETAIL
In the Ring Limiter Detail menu, you can set the mix
values.
Tap on the Value menu to set the values that will adjust
the size and the shape of the ring
F16S2
