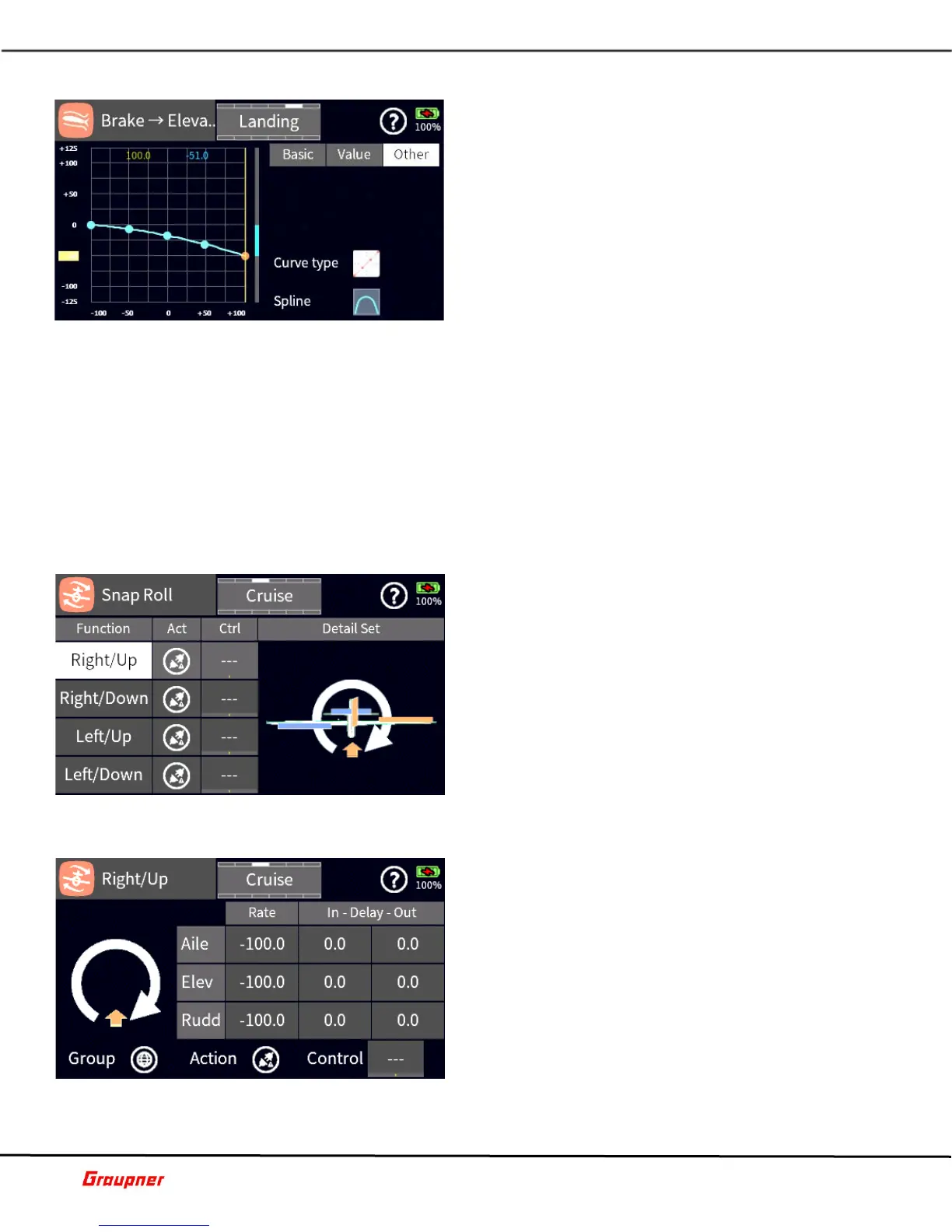

AIR BRAKE DETAIL
Attitude (pitch) changes due to control surface
deflections may need to be compensated with a positive
or negative elevator deflection.
Tap on the Other menu selection (detail section) to
gain access to the Curve type setting. Tap on the Curve
type icon to select single point or multi point curves.
Tapping on the Spline icon will set a linear or nonlinear
curve fitting between the individual points on the curve.
Tap on the Value menu selection to set the x and Y
values for your curve. The points on an axis can also
be adjusted by moving the orange marker of the
respective axis. Simply tap and hold down on the marker to move it.
If you selected a multi-point curve you can add additional curve points by positioning the
brake cursor line at the desired location on the curve and press the plus (+) icon. Individual
points can be selected for adjustment by moving the brake cursor line on top of the point
or by tapping on the point (point will change color).
Tap on the Basic menu selection to select an overlay channel. It will visually overlay the
selected channel over the current channel for comparison.
Tapping on the Group icon will toggle the group setting between global and phase
dependent.
F07S2
SNAP ROLL
Use Snap Roll menu to preset 4 different snap roll types
which can be activated during flight with a switch
(Input Control).
To select a specific type of snap roll, tap on the
respective Function field. The Detail Set image will
change according to the selected type of snap roll.
Tap on the Act icon to activate the snap roll or assign
a switch (Input Control) by tapping on the Ctrl field,
which will activate the Select Input Control screen.
Tap on the Detail Set image to access the detail
settings for the selected snap roll.
F08S1
SNAP ROLL DETAIL
This menu is used to set the desired control surface
Rate as well as the delay times for each control surface.
Tapping on the Rate field will activate the edit toolbar.
Set the desired control surface deflection when the
Snap Roll is activated.
Tap on the In Delay Out fields to set the time it
will take for the control surface to gradually reach its
set position.
Tapping on the Group icon will toggle the Group setting
between global and phase dependent.
