GRAUPNER mz-32 HoTT Reference Manual

Graupner mz-32 Help Reference Manual
Page 37 of 42 Help-Ref-EN-V1.0
SYSTEM Menu

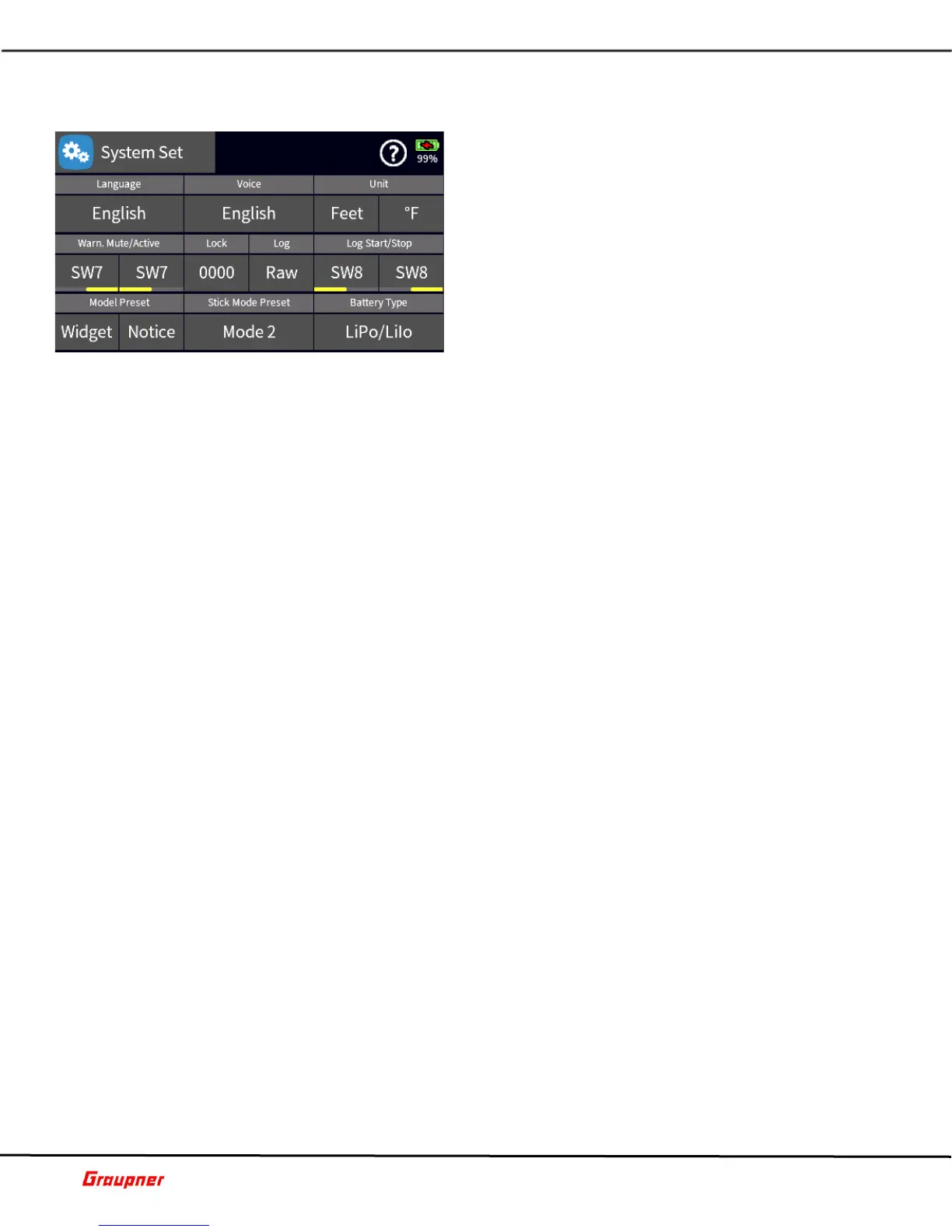

SYSTEM SET
In the System Set menu you can customize certain
operations and behaviors of your mz-32.
Language – Tap on the Language field to change the
display language of the mz-32.
Voice – Tap on the Voice field to change the language
of voice announcements. In case the desired language
is not available a resource update has to be performed
using the grStudio software. The mz-32 will ask for a
restart after a different voice language has been
selected
Unit – Tap on the Unit fields for distance or temperature
to change the display and announcements between metric (Meter, Celcius) or imperial
(Feet, Fahrenheit) units.
Warn. Mute/Active – A switch (Input Control) can be assigned by tapping on the Warn.
Mute or Active field. The Warn. Mute field will permit to turn off warnings, while the Active
field will reactivate the warnings. It is important to re-activate the system warnings after
muting them to ensure new alerts are not missed.
Lock – When a lock code is set in the lock field the radio needs to be unlocked with that
code. The default code is 0000 which disables the lock function.
Log – Tapping on the Log field will permit you to choose between the file formats of Raw
or ASCII for the log file. The default is Raw.
Log Start/Stop – A switch (Input Control) can be assigned by tapping on the Log Start or
Stop field, turning the logging function On and Off. It’s important to take advantage of data
logging as the mz-32 will record important operational data. In many cases Graupner is not
able to provide support to its customers without a log file. The logging can also be started
and stopped by pressing the double arrow key (lower key left of screen).
Model Preset – The Widget and Notice fields permit you to save and then recall/load your
specific configurations.
Model Preset – Widget Create your own Widget decks and save them as a preset. Following
each newly created model will use the preset file to display the widgets. Loading a widget
preset will overwrite the current widgets.
Model Preset - Notice – System notices are stored in a notice preset file that contains all
relevant information for system and telemetry information announcements. The messages
can be found in the Special Menu under the Sensor Notice menu. You can create your own
presets by selecting the notifications you would like to use and then save the configuration
via the Notice field. Each newly created model will use the preset file for sensor notices.
Loading a sensor preset, will overwrite the current sensor notices.
Stick Mode Preset – Determines the stick mode used when a new model is created. The
default mode is defined during the initial radio setup or a Factory Reset.
Battery Type – LiPo/LiIo with a cell voltage of 3.7 volts or LiHV with a cell voltage of 3.8
volts. Never set the voltage mode at 3.8 volts when a LiPo/LiIo 3.7 volts battery is used.
