Tapping on the chain link icon will link Rate A and Rate B for the simultaneous change of
the values.
You can set a fixed offset for the Elevator/Flap and Elevator/Aileron mixes that will deflect
the control surface the moment the elevator has reached the offset position.
To set an offset, move the Elevator control to the desired position and tap on the blue Offs.
St. field, which will store the position. Deflection of the control surface for example flaps
will only occur when the elevator has reached the previously set offset position.
You can assign a switch (Input Control) for Offs. Ctrl. by tapping on the Ctrl field.
F05S2
DIFFERENTIAL

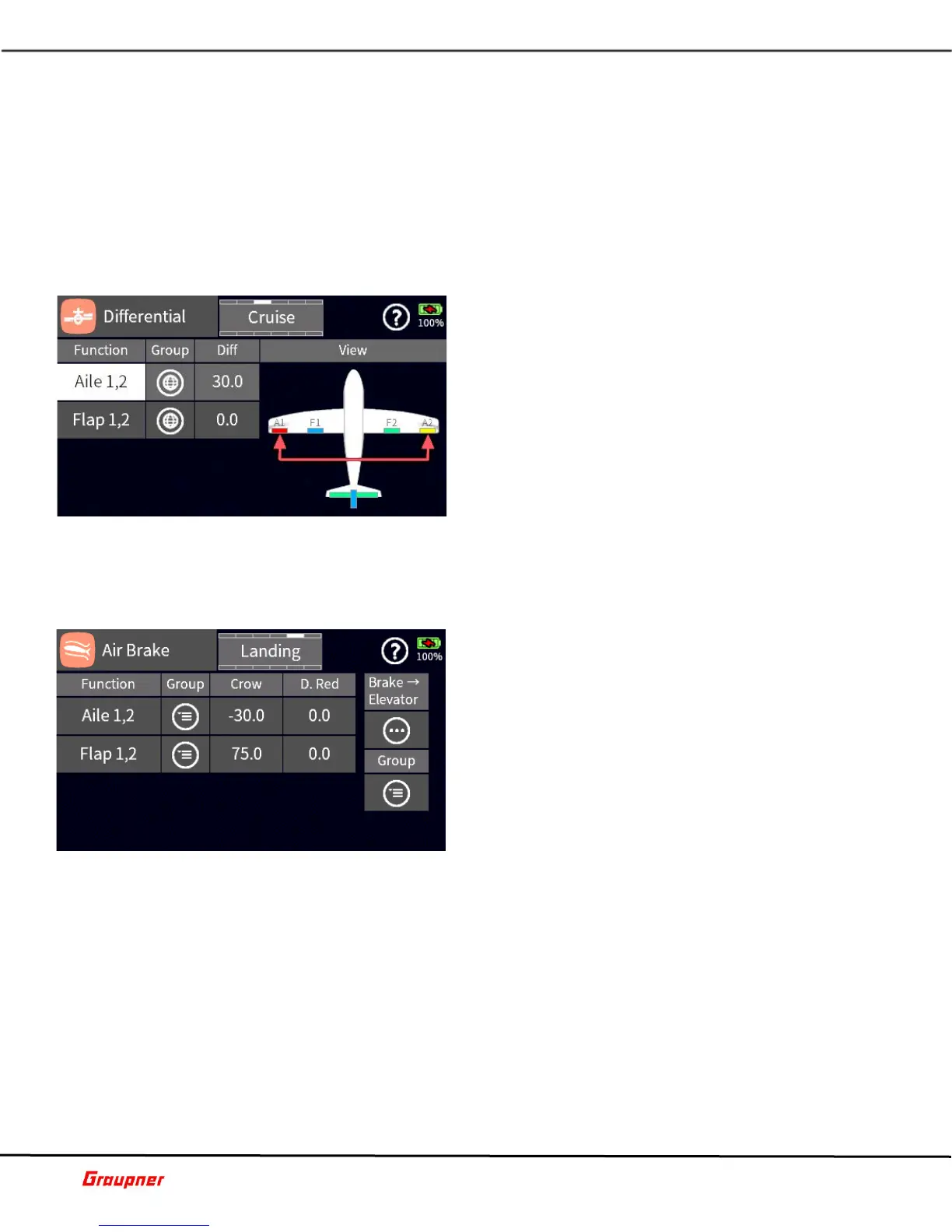

In the Differential menu, you can reduce the downward
movement of a control surface to minimize adverse
yaw when an airplane is in a banked turn.
The Function column lists the names of control surfaces
that can be selected to set a differential value.
Tapping on a Function field will highlight (red arrows)
the affected control surfaces on the View image.
Differential settings can be global or phase dependent.
Tapping the Group icon toggles between the global or
phase-dependent setting.
To enter a value, tap on the Diff field, this will activate
the edit toolbar. Use the slider control bar for large value changes or the arrow keys for
changes in small steps.
F06S1
AIR BRAKE
In the Air Brake menu, you set the deflection of control
surfaces to reduce airspeed. Sailplane pilots will use
this menu to setup their crow or butterfly configuration
for the landing phase.
The Air Brake menu is inactive when the motor option
is checked in the Phase Set menu.
The Function column lists the name of control surfaces
which are available.
Air Brake settings can be global or phase dependent.
Tapping the Group icon toggles between the global or
phase-dependent setting.
The level of positive or negative deflection is set in the crow column. Tapping on the Crow
field will activate the edit toolbar.
The differential reduction D. Red field determines by how much a control surface differential
should be reduced when the air brake mode (Phase) is active.
Correcting attitude (pitch) changes when the mix is active can be configured in the Brake
Elevator section.
F07S1
