Graupner mz-32 Help Reference Manual
Page 33 of 42 Help-Ref-EN-V1.0

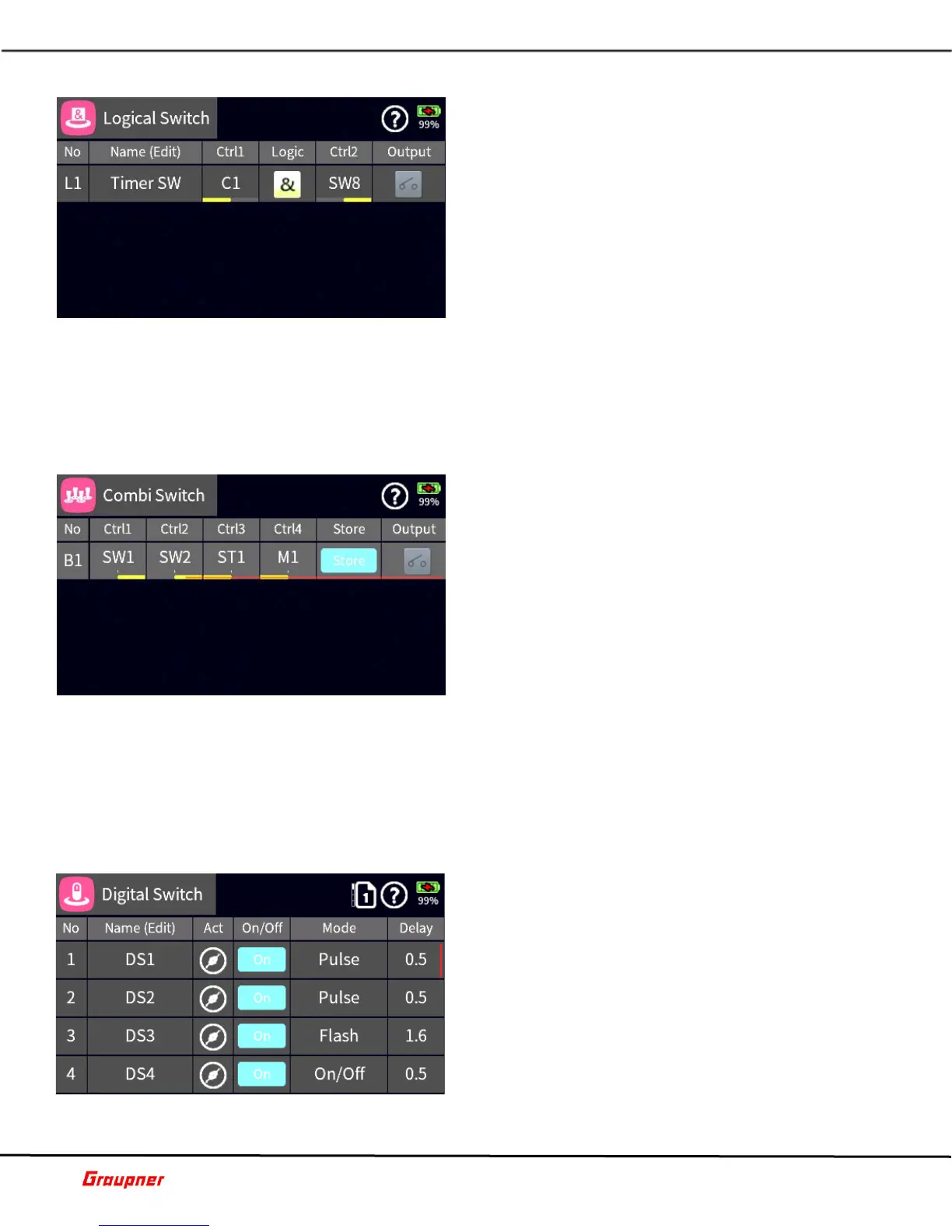

LOGICAL SWITCH
A Logical Switch triggers an On/Off condition
depending on the input of two different switches (Input
Control) that meet a certain logic condition.
Tap on the plus sign (only visible if no Logical Switch
has been configured) or the number field of an existing
Logical Switch to add a Logical Switch
Tapping on the Name field will activate the edit toolbar
to rename or delete the Logical Switch.
Tap on the Ctrl1 field to assign a switch (Input Control)
to the first Logical Switch input.
Tap on the Logic field to select the Operator for the
Logical Switch.
Tap on the Ctrl2 field to assign a switch (Input Control) to the second Logical Switch input.
Once the logical condition has been met after by the control inputs, the Output icon will
turn orange and indicate an On condition for the Logical Switch.
S08S1
COMBI SWITCH
A Combi Switch combines the On/Off conditions of up
to four different switches (Input Control) to trigger an
On/Off condition for the Combi Switch.
Tap on the plus sign (only visible if no Combi Switch
has been configured) or the number field of an existing
Combi Switch to add a Combi Switch.
Tapping on the Name field will activate the edit toolbar
to rename or delete the Combi Switch.
Tap on the Ctrl1 field to assign a switch (Input Control)
to the first control input.
Repeat the same for each control input you would like
to add. You do not need to assign an input for all four controls.
Position each switch (Input Control) in the desired position/condition and tap on the Store
field to save this setting.
If the condition of the saved setting is matched, the Output icon will turn orange and
indicate an On condition for the Combi Switch.
S09S1
DIGITAL SWITCH
The mz-32 HoTT transmitter features 64 digital
switches. Each of these 64 Digital Switches can be
arbitrarily placed as a widget on one of the widget
pages and operated from there.
Available Digital Switch Modes are:
ON/OFF (This will manually toggle the output)
Pulse (This will turn On the Digital Switch only ONCE
for the time set in the Delay field and then reset the
switch. It is necessary to manually tap again on Digital
Switch field in order repeat the operation
Flash (This will cycle/oscillate the digital output
between the On and Off as long the Digital Switch is turned On. The duration of the On and
Off time is set in the Delay field.
