GRAVOGRAPH LS100 EX - Air Assist System Setup

30
M_LS100IQ EX Energy_EN_C
Recommendations for installation
4. Air assist (option: Air compressor)
Theoperationoftheairassistsystem(blownair)requirestheuseofanaircompressor(notsupplied).
Con󰘰guration:Air󰘱owrate:12l/mn(Minimum)
Use the compressed air hose supplied to connect the machine to the air compressor.

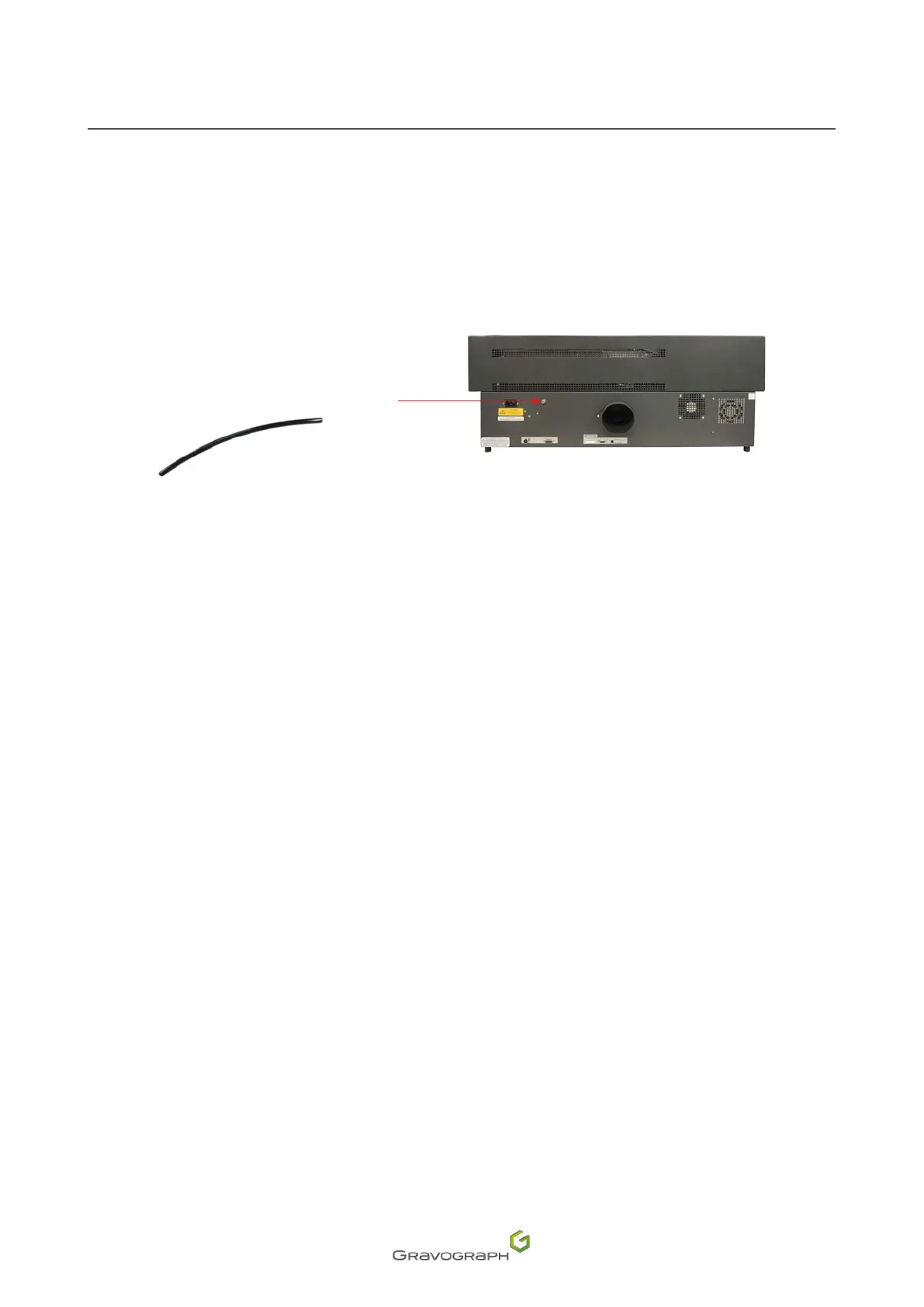

1. Pneumatic connection for tube - Air assist
2. Compressed air hose for air assist (Length: 100 mm (3.937 in) - Tube diameter: 4 mm (0.157 in))
2
1
