Recommendations for installation
8. Electrical installation

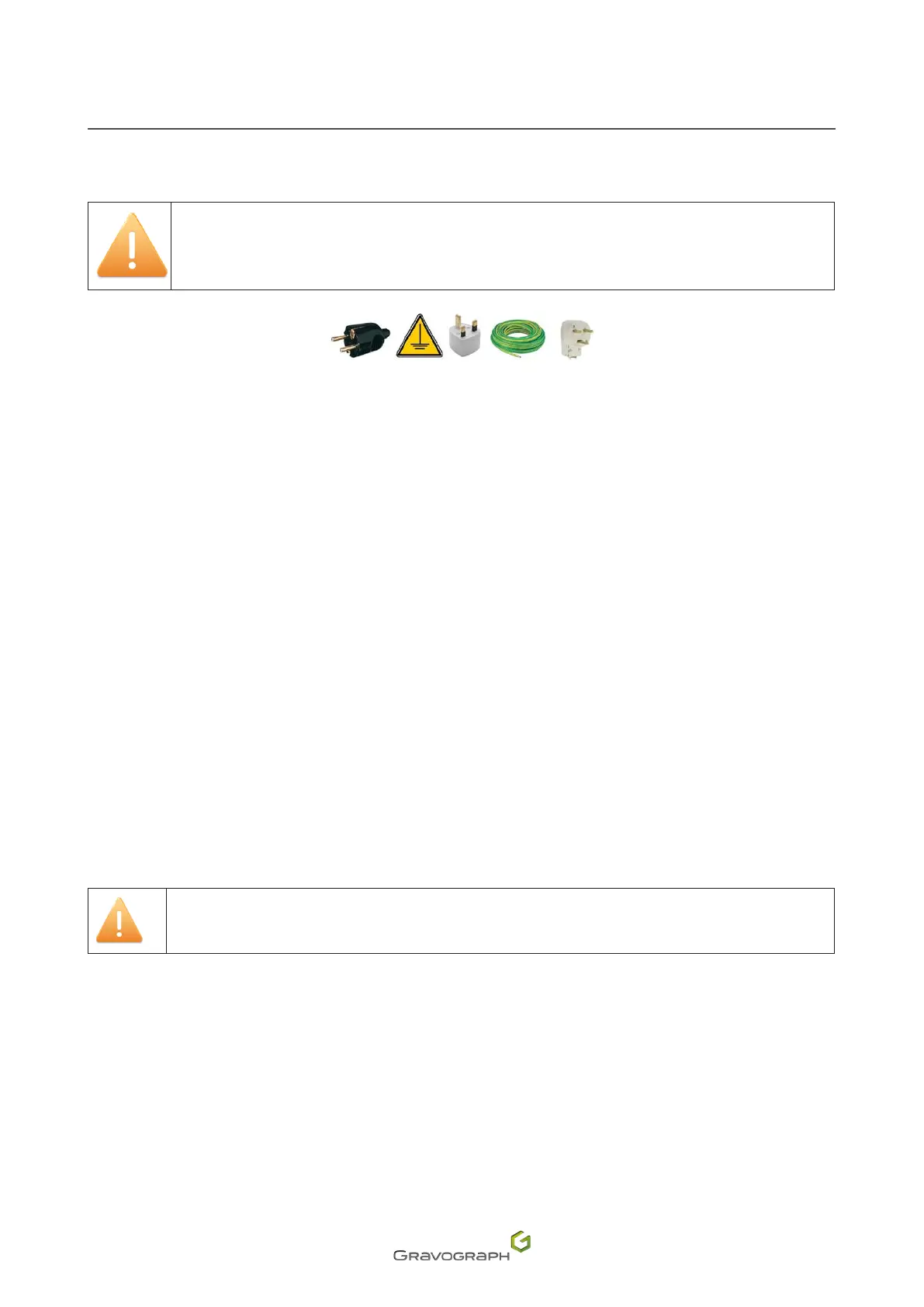

The connection to the single phase power supply is made with a standard, 3 pin plug with
grounding.Groundingmustbedoneaccordingtotheregulationsine󰓐ecttoensurethe
safety of the personnel.
Checkthattheelectricalinstallationmeetstherequirementsofthe"Inputpower"labellocatedclosetothe
machine'spowersupplysocket.
To avoid interference problems due to the external environment, observe the following:
• Usethelinkcablessupplied.TheycomplywithEMCradio-frequencyinterferenceemissionstandardsand
provide protection from external electrical interference (compliant with EMC immunity and susceptibility
standards).
• Bringtheitemsofequipmenttobelinkedasclosetogetheraspossibletoreducethelengthofcabletobe
used.
• Separatethepowercablefromthelinkcableandmakesurethepowerandlinkcablesdonotrunthrough
the same cable tray.
• Connect the machine direct to a mains power line and avoid connecting more than one device to that line
(bypluggingseveraldevicesintothesamemainssocketorintoamulti-wayadapter).
• Do not allow inductive or capacitive devices to be connected to the same mains power line as the machine
(motors, solenoid valves, chargers, etc.).
• Avoid the installation of manual or automatic switching systems on the same mains power line as the
machine(relays,timers,programmers,automaticcircuit-breakers,automaticswitches,etc.).
• Checkthat devices in thevicinity of the machine meet the standards for electromagnetic interference.
Read the technical data sheet for each device. If they are non-compliant, move them as far away from the
machine as possible.
• Use the Gravograph accessories.
Alwaysswitch themachine o󰓐before connectingor disconnectinga cableor optional
accessory.
