GRAVOGRAPH LS100 EX - Operating Instructions for the Machine; Control Panel Overview

45
M_LS100IQ EX Energy_EN_C
L. Operating instructions for the machine

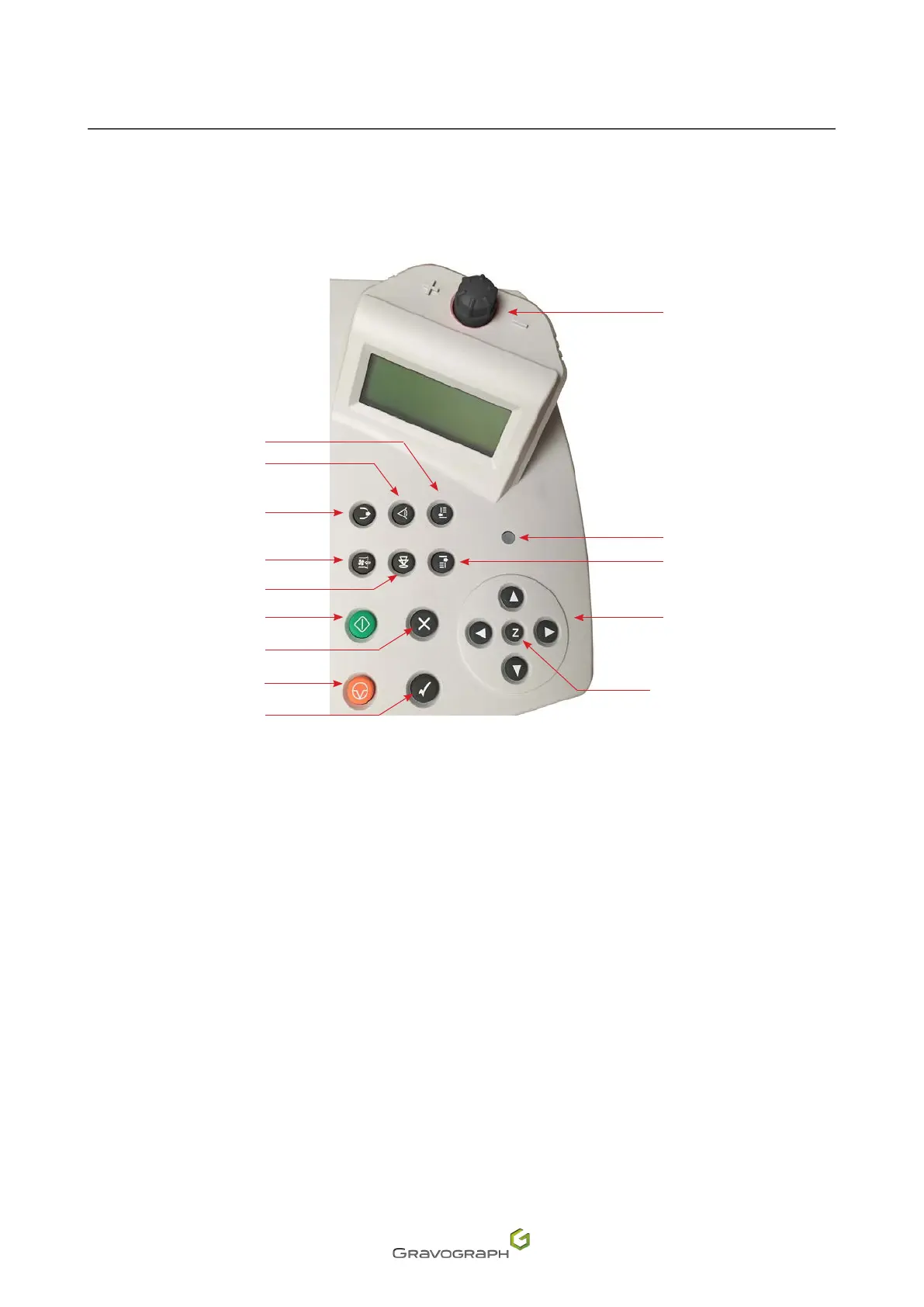

1. Control panel
Themachinecontrolpanelisusedtoeasilyaccesstoallthecontrolsforcuttingandengraving/marking.
1. Selectionofthenext󰘰le
2. Positioning pointer
3. Air assist
4. Air extractor
5. Autofocus
6. Start -Startmarking
7. Cancel
8. Pause
9. "Check"key
10. Air assist adjustment
11. Green light - Red light
12. Selectionoftheprevious󰘰le
13. Joystick
14. Focus adjustment
1
2
3
4
5
6
7
8
9
10
11
12
13
14
