Preventive maintenance
1. Head
The screen below appears:
Z ADJUSTMENT
JOYSTICK Z
Z = 20.00

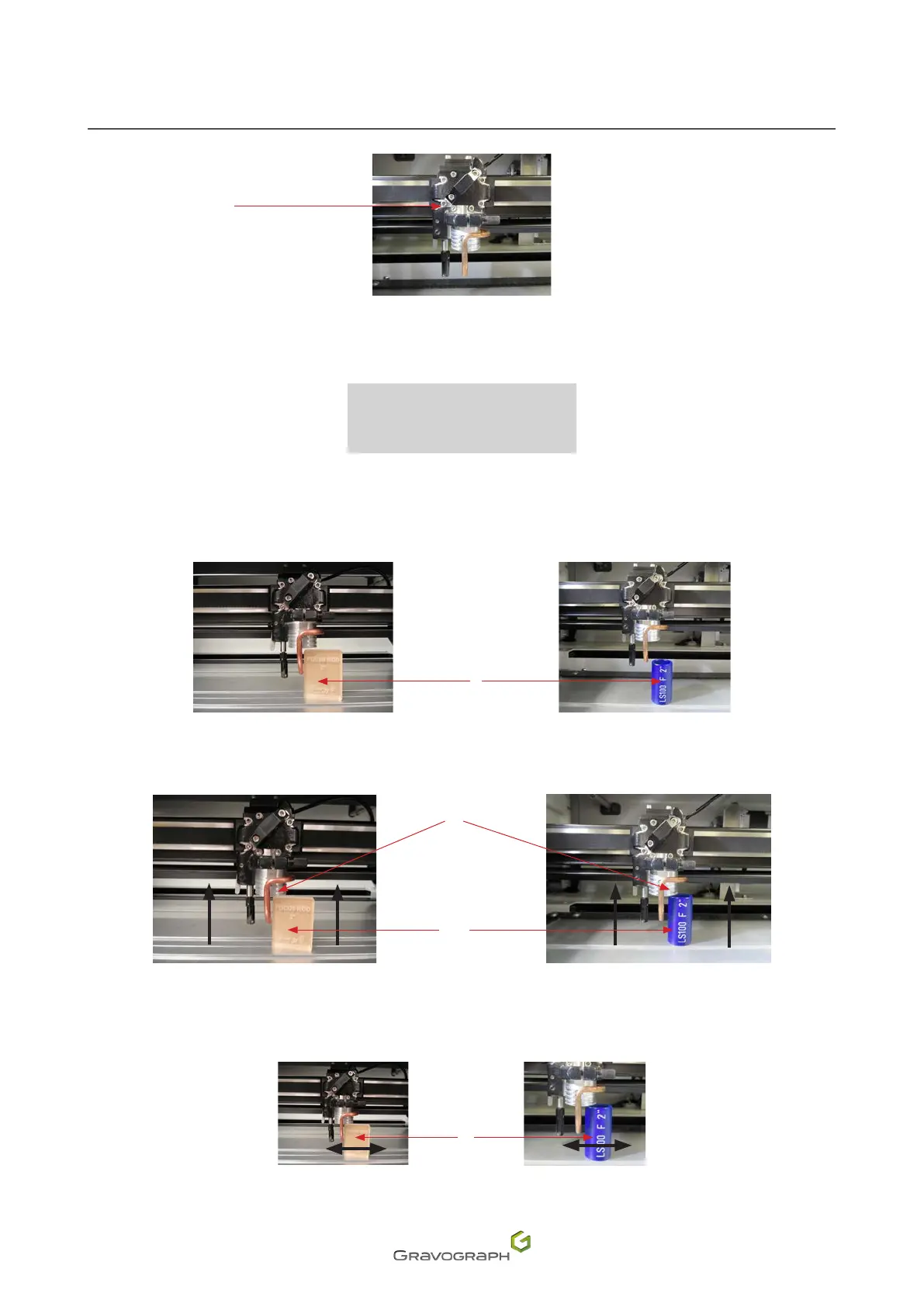

9. Open the upper door
10. Placetheautofocusadjustmentgageinpositionontheengravingtable,underthelenssupportof
the head.
1
1. Autofocus adjustment gage
11. Move the engraving table upwards until the lens support comes into contact with the gage.
1
2
1. Autofocus adjustment gage
2. Lens support
12. Check that the gage can slide slightly.
1
1. Autofocus adjustment gage
1
