G16 Smoke Density Monitor
Ver.2.4 – Revision March 2022 29
6.2.1 Home Menu

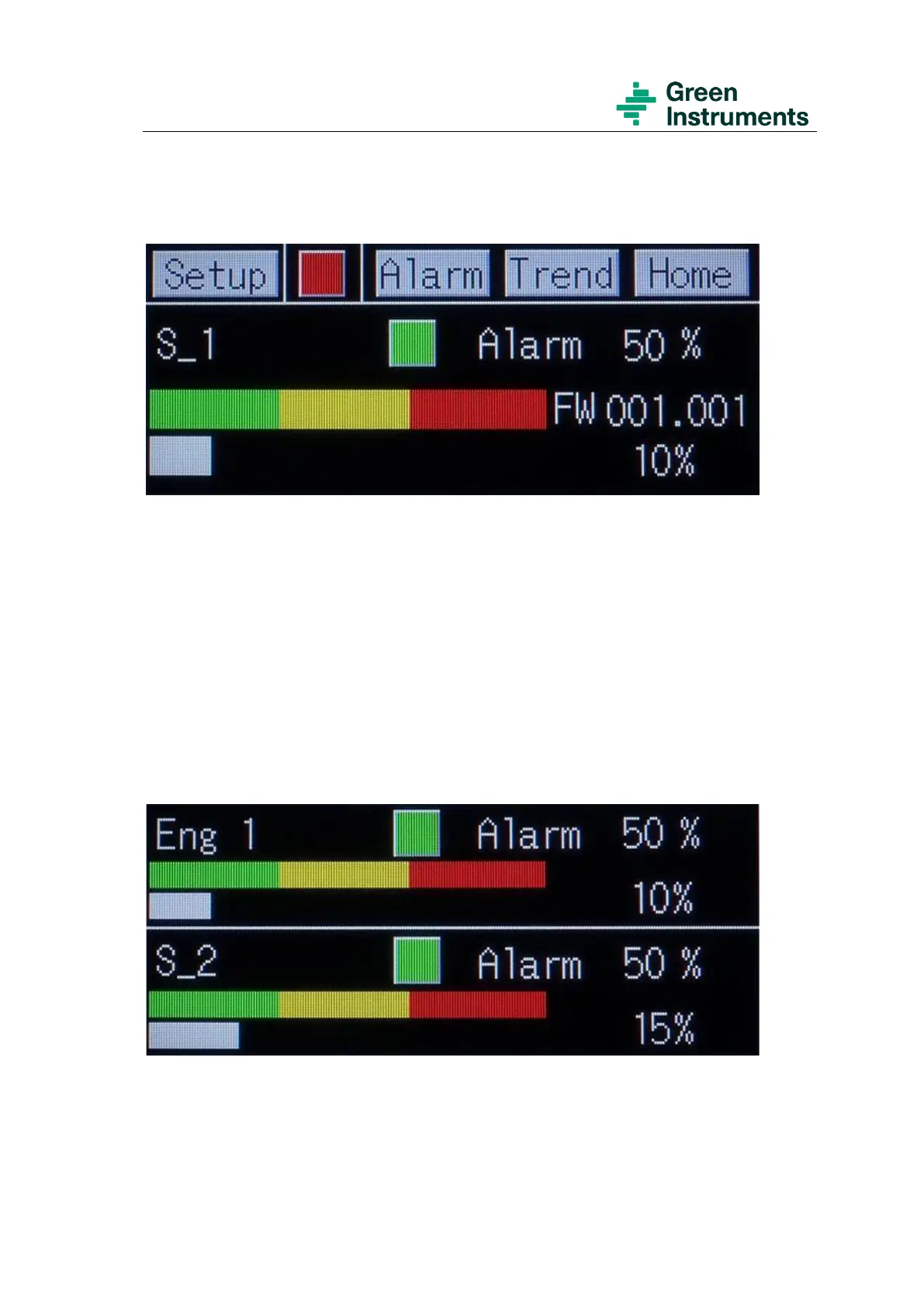

Figure 6-8: Home Menu with 1 configured sensor - Sensor menu
Home menu is the first screen when the system is turned on. The display depends on the
number of transceiver/reflector units configured in the system.
If the system is configured with 1 transceiver/receiver unit, the home menu will be as
shown in Figure 6-8. It will also be the sensor menu. See section 6.2.2 for more infor-
mation.
Figure 6-9 shows the Home Menu with 2 configured sensors. To change the name of the
sensor (e.g. from S_1 to Eng 1), please see the instruction in section 6.2.5.
Figure 6-9: Home Menu with 2 configured sensors
To Next Page
