Menu Structure & Configuration
34
6.2.4 Trend Menu
Press Trend on the Sensor Menu, the opacity trends of all sensors will be dis- played Figure
6-13.

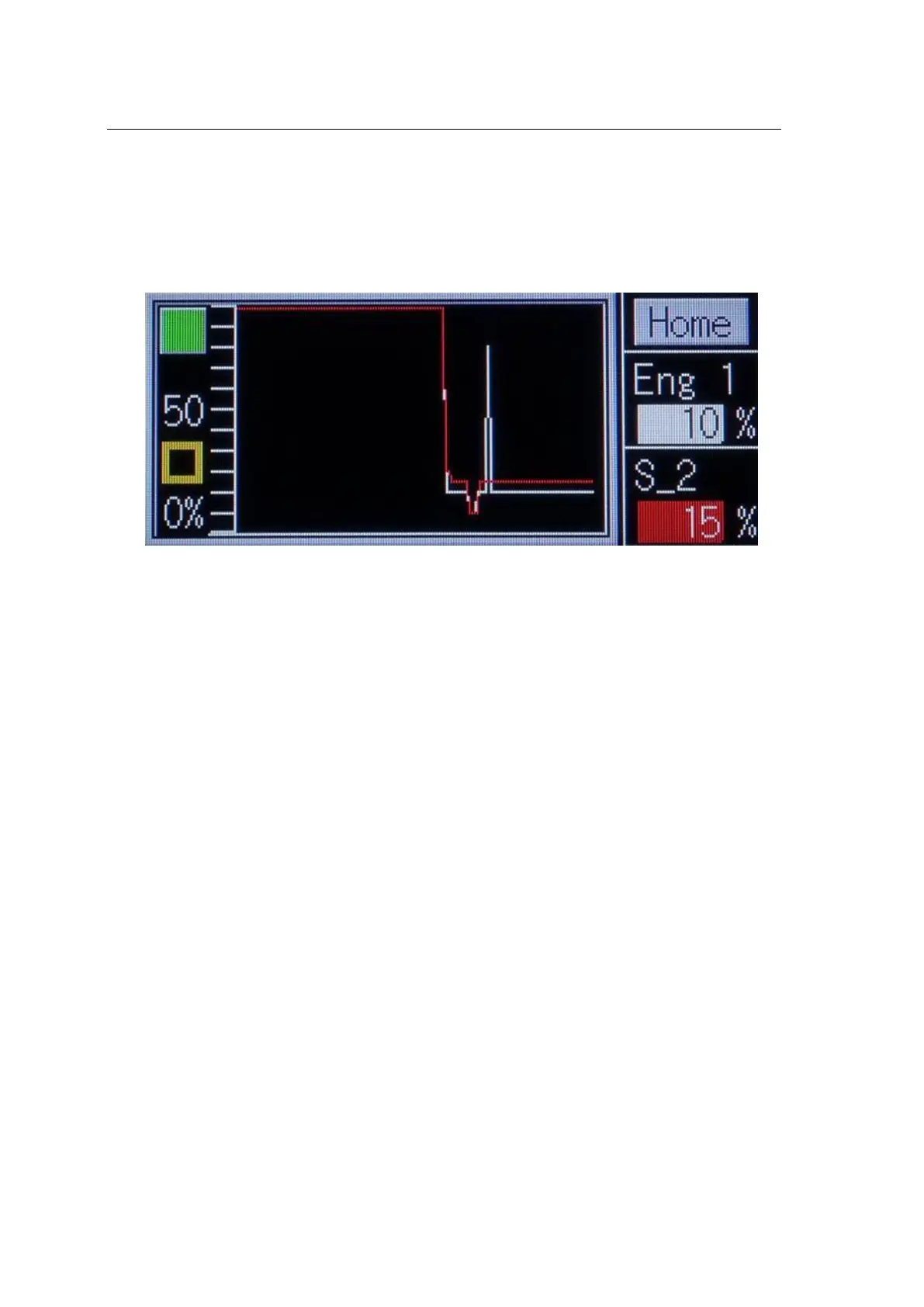

Figure 6-13: Trend Menu
The opacity values (vertical axis) are shown on a time scale (horizontal axis). The scale
of vertical axis is -10% - 100% opacity. The scale of the horizontal axis is the last 30
minutes.
6.2.5 Sensor Setup
Press Setup on the Sensor Menu to access its Sensor Setup Menu.
It will require a password to enter the menu (see Figure 6-14). The password can be found
on the Test and Configuration Sheet delivered to each system. Use the popup keyboard to
enter the password. Choose OK by using up/down/right/left buttons on the keyboard then
press ENT. The Setup Menu shown on Figure 6-15 will appear.
