Groen CC20-E - Page 138

CC10-G
Parts List
4-36
TO
BOILER
FROM
WATER
VALVE
TO
BOILER
19
15
16
8
17
9
FROM
WATER
VALVE
BOTTOM CAVITY
18
TOP CAVITY
13
1 Auto Clean Tank........................ 1 086452
2 0-Ring, 1-3/8 X 2 X 3/16 ........... 3 092102
3 Screw, 3/8" Truss Head............. 1 005764
4 Filler Cap ................................... 1 086468
5 Elbow 900, 3/8-18NPT .............. 2 086490
6 Close Nipple, 3/8-18NPT .......... 2 086493
7 Eductor,1/2-14NPT.................... 2 086460
8 Male Adapter, 1/2-14NPT X
1/2 Hose.................................... 2 092104
9 Male Adapter, 90°...................... 2 086489
10 Nipple, 1/2-14NPT X 1-1/2
Lg .............................................. 5 086495
Item Description Qty.
Part
No.
11 Swing Check Valve,
1/2-14NPT............................... 2 086461
12 Tee, 1/2-14NPT ....................... 1 086491
13 Nipple, 1/2-14NPT X 2 Lg....... 2 086496
14 Elbow 900,1/2-14NPT ............. 2 086494
15 Hose Top Cavity to Boiler........ 1 092112
16 Hose Bottom Cavity to Boiler.. 1 092114
17 Hose Top Cavity from
Water Valve ............................. 1 092111
18 Hose Bottom Cavity from
Water Valve ............................. 1 092113
19 Hose Clamps........................... 8 092121
Item Description Qty.
Part
No.

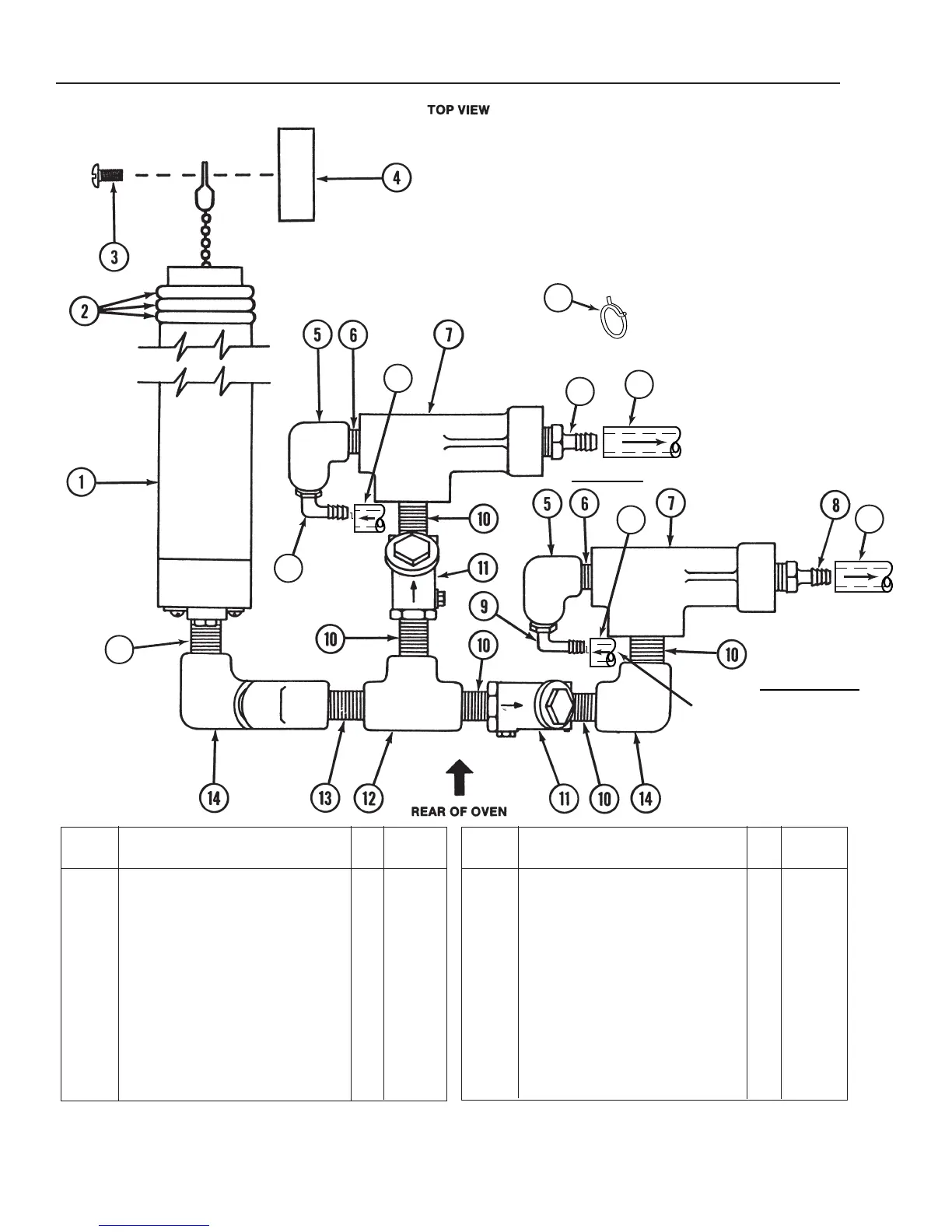

Figure 12. Auto Clean Double Stack
Piping Assembly
(Revised 1/02)
