Groen CC20-E - Page 172

CC20-G
Parts List
5-34
23 22
7
6

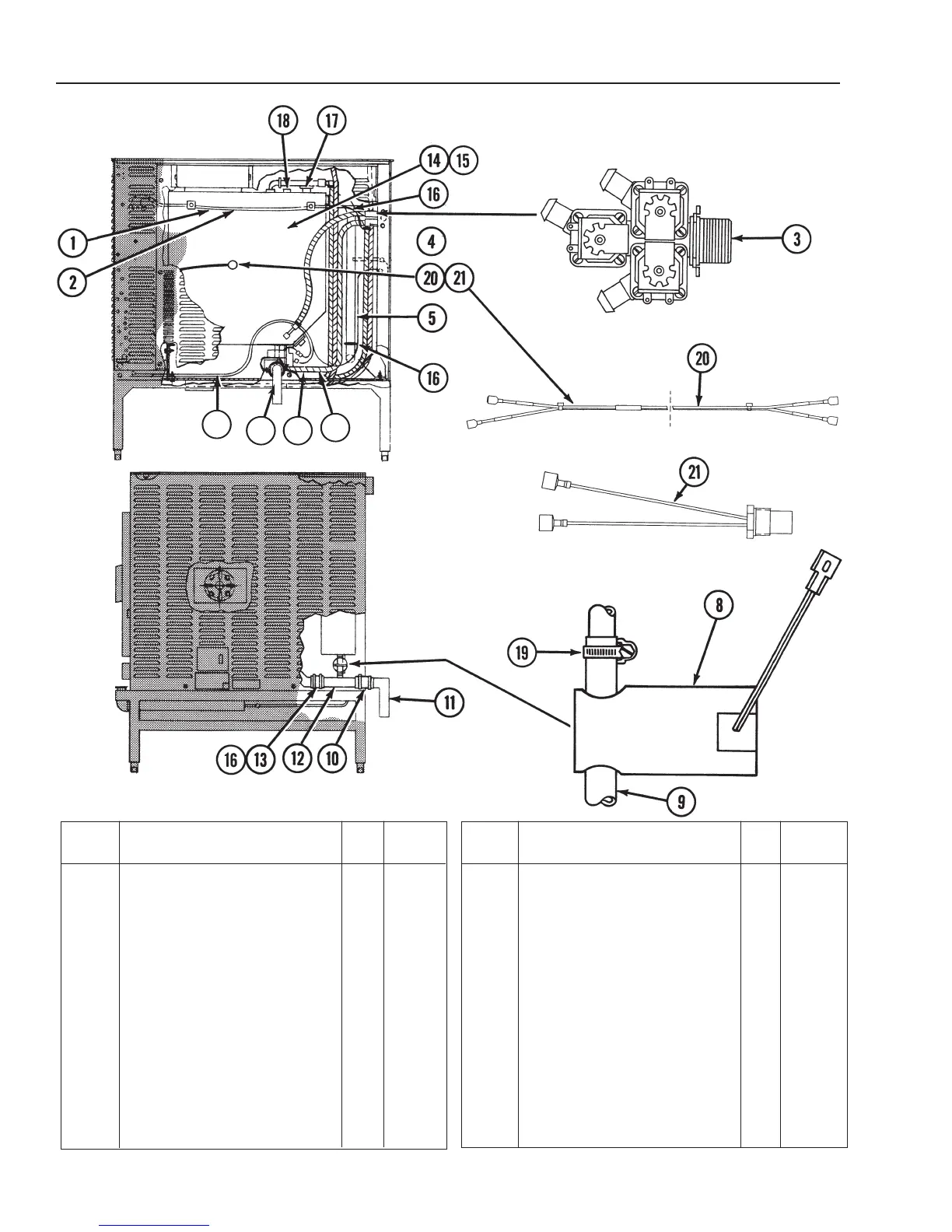

Figure 10. Water Inlet and Drain
1 Auto Clean Water Valve
Harness ................................. 1 090769
2 Water Inlet Valve Harness ...... 1 090706
3 Water Inlet Valve, 2-Way,
Triple Type ............................. 1 090827
4 Water Fill Hose, 29-1/4" Lg .... 1 087919
5 Steam Hose, 21.5" Lg ............ 1 090743
6 Condensate Hose, 318" I D X
35" Lg ..................................... 1 077995
7 Drain Valve Harness .............. 1 090770
8 Drain Valve ............................ 1 071234
9 Silicone Tube .......................... 1 090741
10 Drain Hose ............................. 1 080688
11 Drain Elbow Assembly............ 1 092273
12 Drain Tube Assembly.............. 1 090739
Item Description Qty.
Part
No.
13 Drain Tube, 2" Lg ................... 1 090742
Prior to Serial #GC14501
14 Boiler Kit Assembly ................. 1 098650
(Natural and Propane Gash
After Serial #GC14501
14 Boiler Assembly with Pins....... 1 098650
15 Boiler Insulation ...................... 1 087940
16 Hose Clamp ............................ 4 013613
17 Cap.......................................... 1 090897
18 Vacuum Breaker ..................... 1 090787
19 Drain Hose Clamp................... 2 071271
20 Thermal Switch Harness......... 1 098645
21 Hi-Limit Thermal Switch .......... 1 096892
22 Flow Restrictor ........................ 1 088877
23 Spray Nozzle........................... 1 081670
Item Description Qty.
Part
No.
(Revised 1/02)
