Groen CC20-E - Page 173

CC20-G
Parts List
5-35
TO
BOILER
FROM
WATER
VALVE
19
17
18

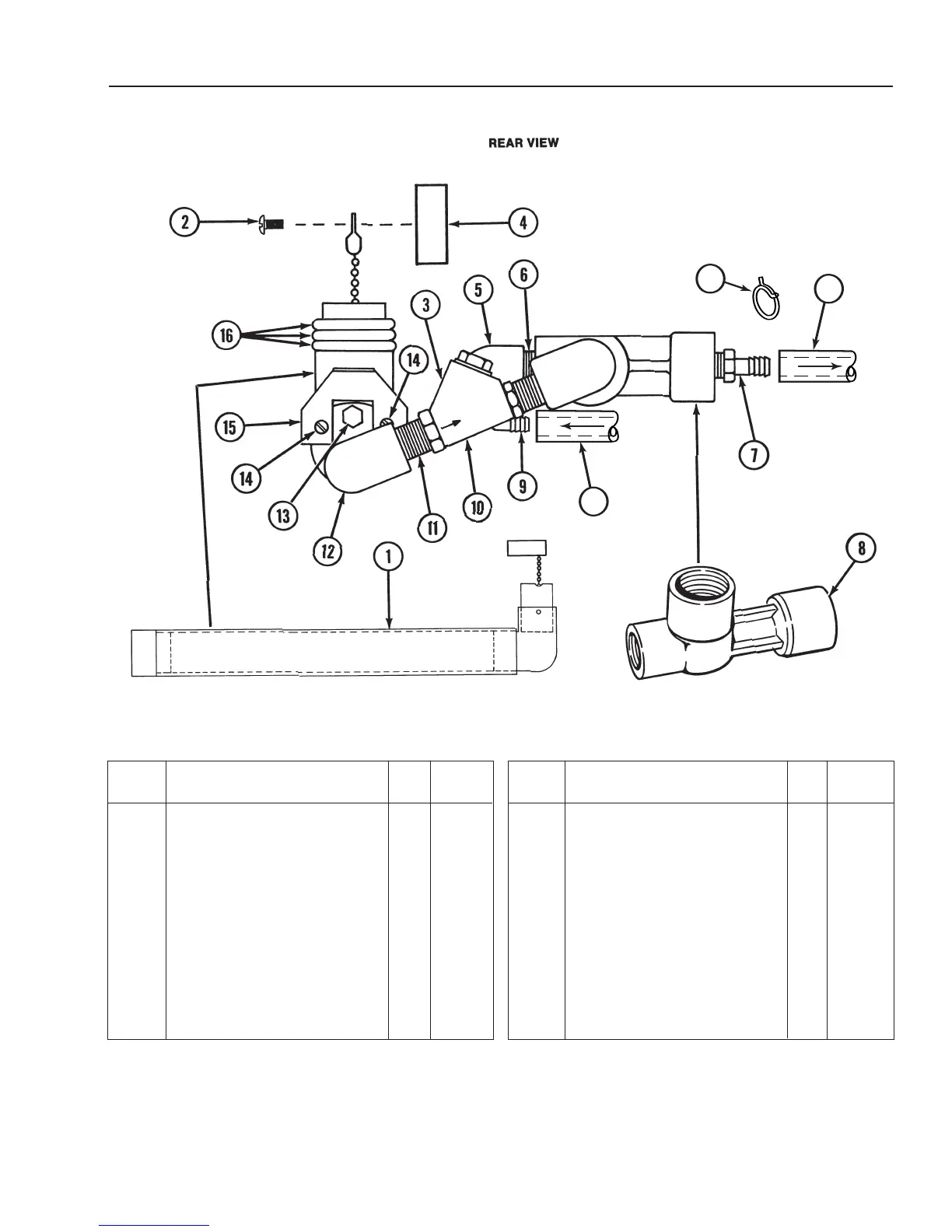

Figure 11. Auto Clean Single Stack Piping Assembly
1 Auto Clean Tank ..................... 1 086452
2 Screw, 318" Truss Hd ............. 1 005764
3 Swing Check Valve................. 1 086461
4 Filler Cap ................................ 1 086468
5 Elbow 90°, 3/8-18N PT........... 1 086490
6 Close Nipple, 3/8-18NPT........ 1 086493
7 Male Adapter, 1/2-14NPT X
112 Hose ................................ 1 092104
8 Eductor,1/2-14NPT ................. 1 086460
9 Male Adapter, 90° ................... 1 086489
10 Swing Check Valve,
1/2-14NPT .............................. 1 086461
Item Description Qty.
Part
No.
11 Nipple, 1/2-14NPT X 1-1/2
Lg ............................................ 3 086485
12 Elbow 900,1 /2-14N PT........... 2 086494
13 Plug, 3/8-18NPT ..................... 1 092103
14 Screw, Hex Head,
8-32 X 3/8 ............................... 2 069789
15 Bracket ................................... 1 086457
16 O-Ring, 1-3/8 X 2 X 3/16"....... 3 092102
17 Hose to Boiler ......................... 1 092116
18 Hose from Water Valve ........... 1 092115
19 Hose Clamp ............................ 4 092121
Item Description Qty.
Part
No.
(Revised 1/02)
