Maintenance
Replacement Procedures
8-51
(Revised 1/02)

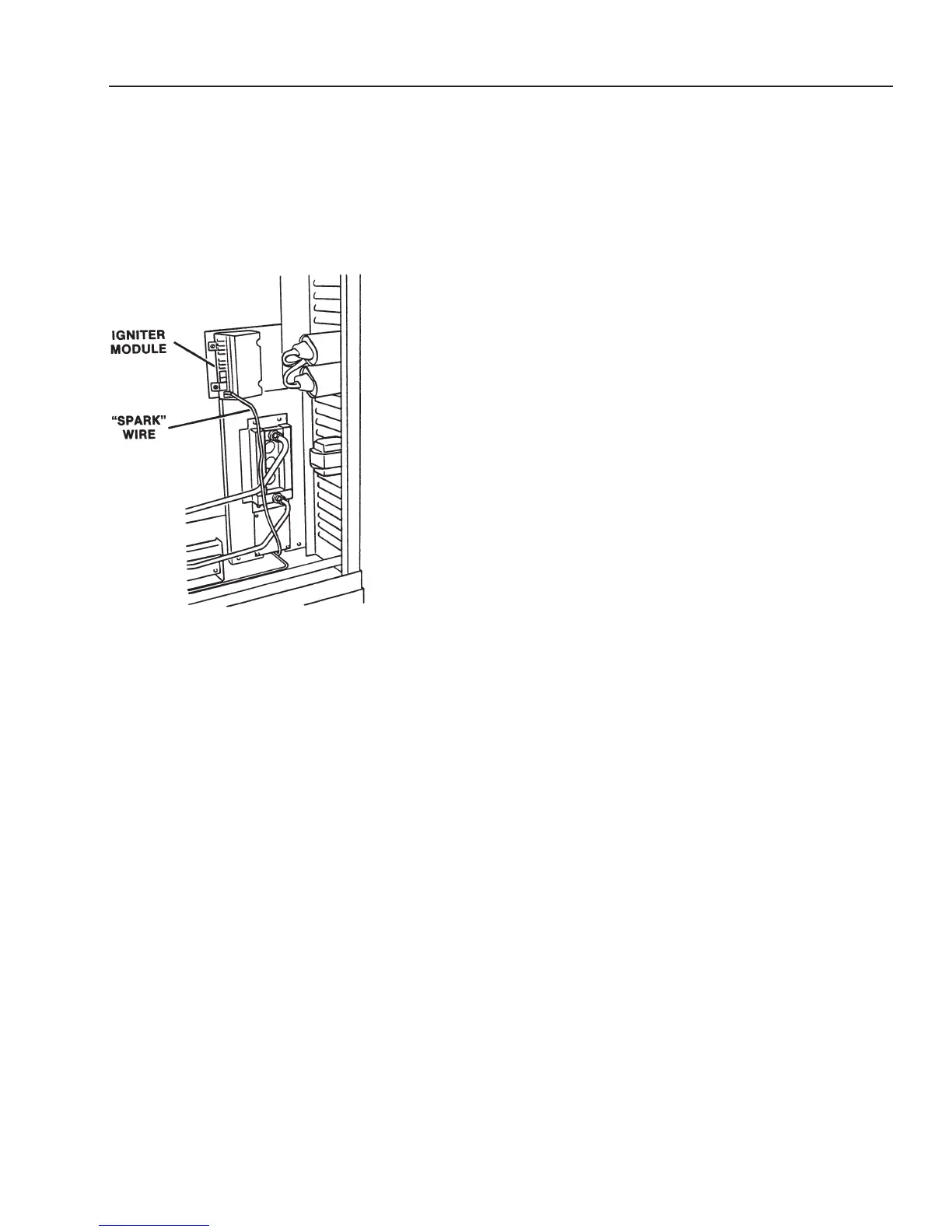

Igniter Module
WARNING
Be sure oven is disconnected from branch circuit power before
performing any repair work.
Removal
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right side cover.
3. Disconnect electrical wires from igniter module. If wire identification is
not legible, label the wires before disconnecting them.
4. Remove igniter module.
Installation
1. Install igniter module and tighten mounting screws.
NOTICE
Route the “spark” lead away from the manifold to help prevent
improper oven operation.
2. Connect electrical wires to igniter module. Route the “spark” wire
away from the manifold gas pipes.
3. Install right side cover.
4. Connect oven to the branch circuit.
