Maintenance
Replacement Procedures
8-57
(Revised 1/02)

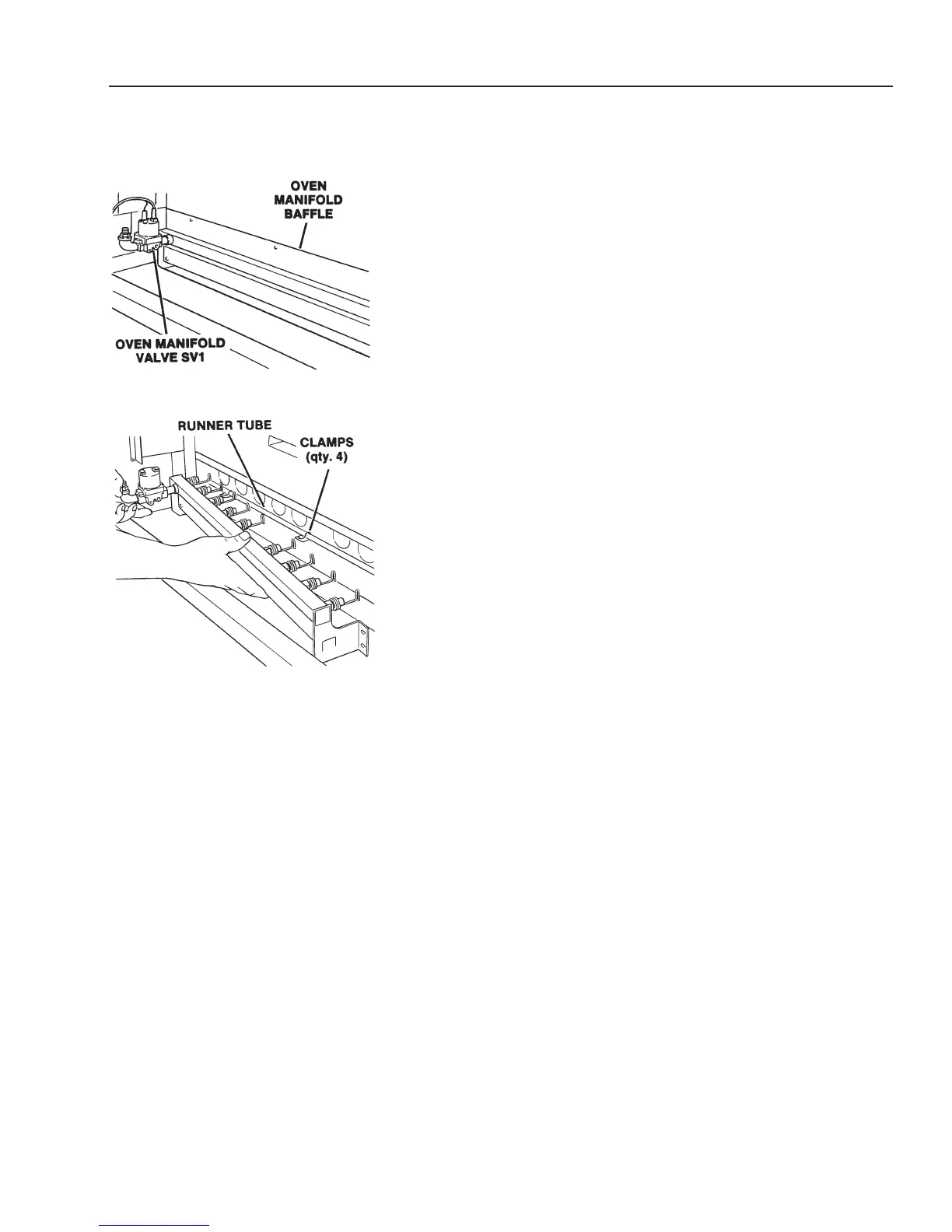

Pilot Runner Tube
Removal
1. Remove oven manifold (see page 8-56).
2. Remove pilot burner (see page 8-53).
3. Remove oven manifold baffle.
4. Remove four clamps; then remove pilot runner tube.
Installation
1. Install pilot runner tube and the four attaching clamps.
2. Install oven manifold baffle.
3. Install pilot burner (see page 8-53).
4. Install oven manifold (see page 8-56).
