Automatic Greasing System OnePlus
EG1605R01
2.3 The integrated control and monitoring unit
The control and monitoring unit initiates and controls the greasing cycles of the
greasing system. All required system and program parameters, such as the time
periods behind the interval selector switch setting possibilities and the grease
output quantities behind the amount selector switch possibilities are laid down in
the control unit. The control unit monitors the performance of various components
of the greasing system, and processes and stores the mal functions it detects.
The basic parameter settings, like interval period and grease amount, can be set by
means of two selector switches. You can find these switches on the controller-
board, behind the bottom cover of the pump.
Advanced functionality can be programmed with an UniGINA (
UNIversal
Groeneveld tester for INstallation and Analysis) (see Figure 2.2)

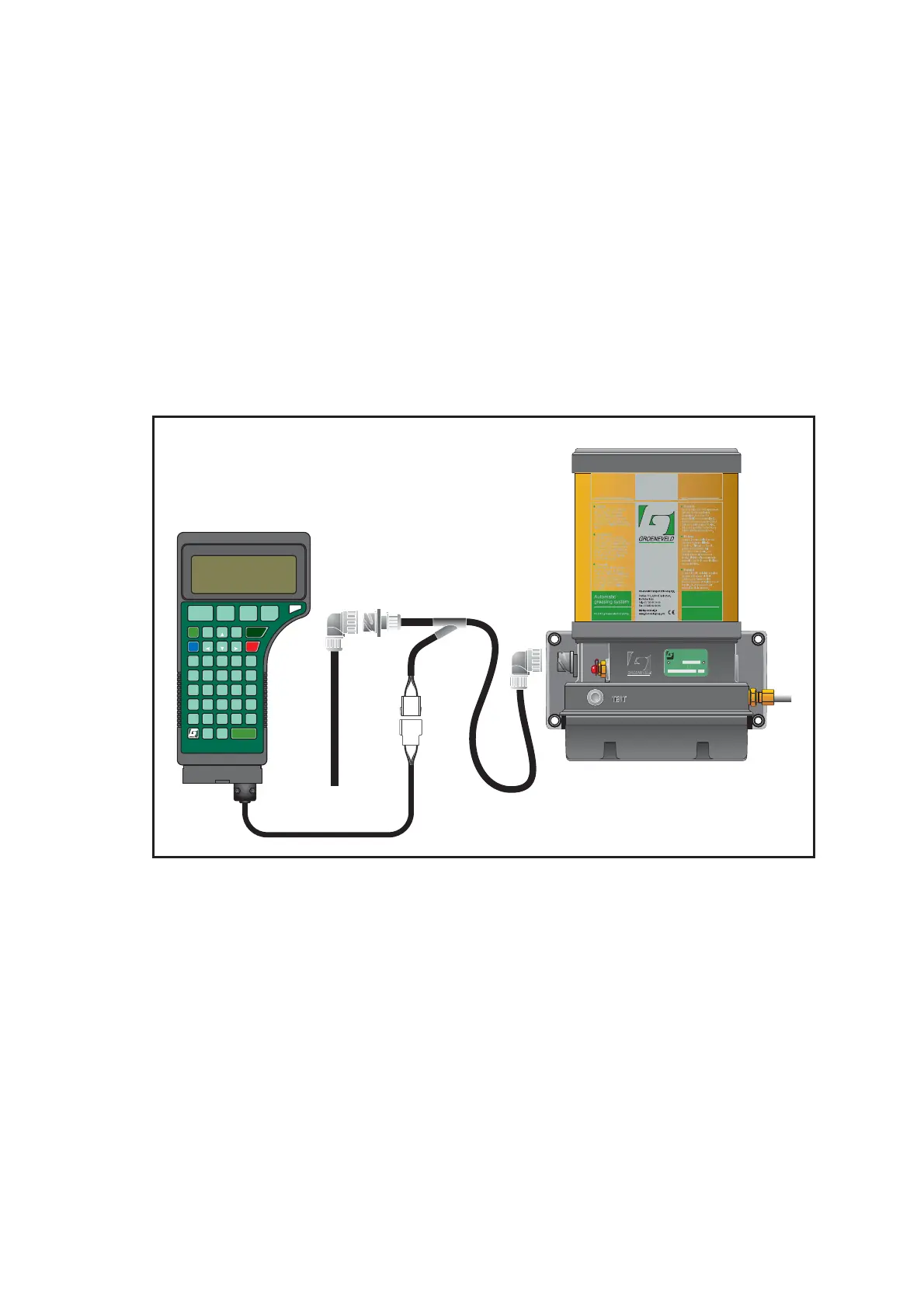

Figure 2.2 Connecting the UniGINA to the OnePlus pump.
