8.7.3 Alternative setpoints (4.1.2)

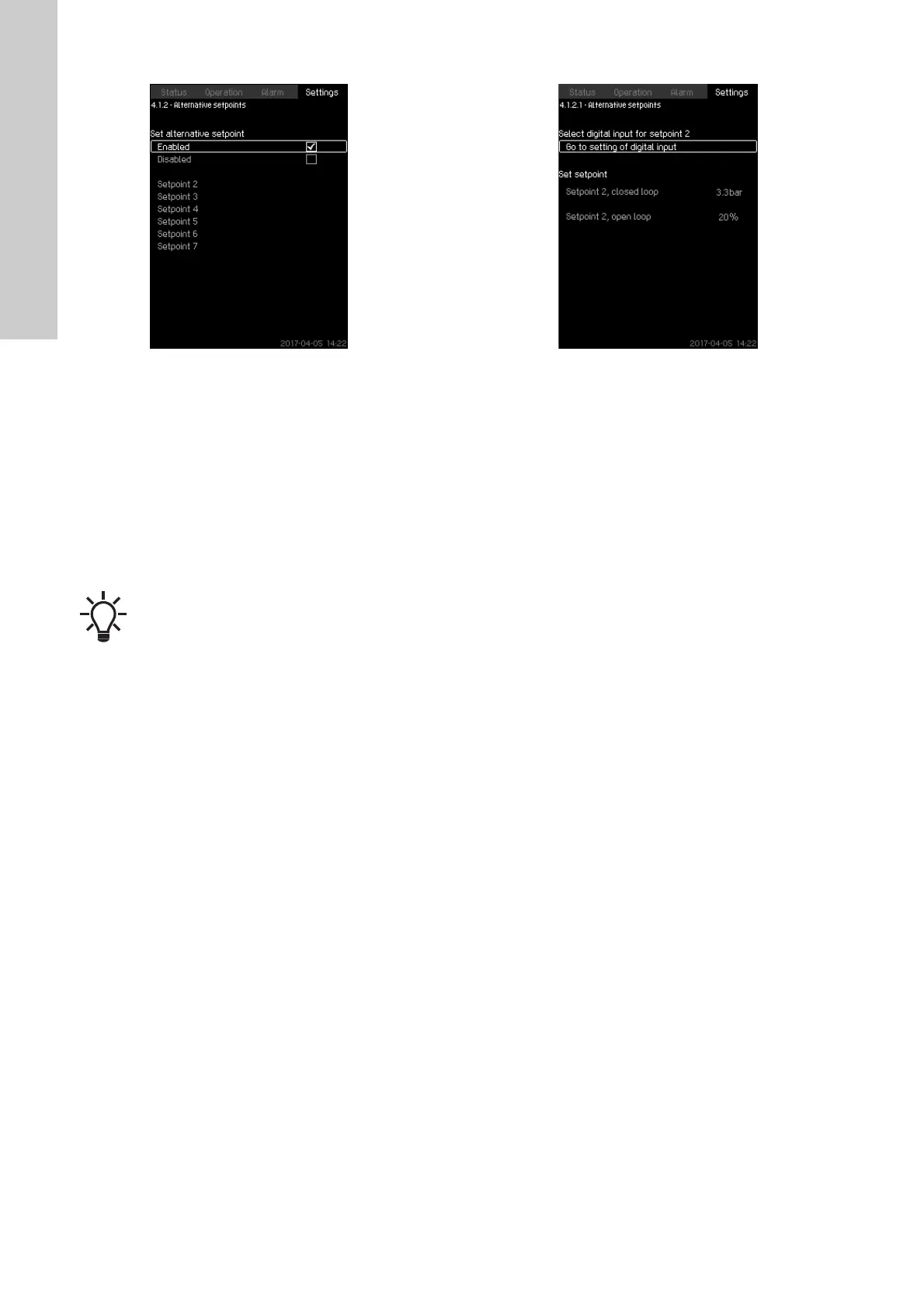

Fig. 38 Alternative setpoints
Description
The function allows you to select up to six setpoints (2 to 7) as
alternatives to the primary setpoint (1). The primary setpoint (1) is
set in the menu "Operation".
Every alternative setpoint can be addressed manually to a
separate digital input (DI). When the contact of the input is
closed, the alternative setpoint applies.
If more than one alternative setpoint has been selected, and they
are activated at the same time, CU 352 selects the setpoint with
the lowest number.
Setting range
• Six setpoints, numbers 2 to 7.
Factory setting
No alternative setpoints have been selected.
8.7.4 Alternative setpoints 2-7 (4.1.2.1 - 4.1.2.7)
Fig. 39 Alternative setpoints 2-7
For each alternative setpoint, select the digital input to activate
the setpoint.
You can set a setpoint for closed loop and for open loop.
Setting via the operating panel
• Settings > Primary controller > Alternative setpoints.
1. Select alternative setpoint.
2. Select: Go to setting of digital input. Display 8.7.28 Digital
inputs (4.3.7) appears.
3. Set the input.
4. Press [Back].
5. Select the menu line of the setpoint (closed or open loop).
6. Set the setpoint. Set both setpoints if the system is to be
controlled both in open and closed loop.
Factory setting
No alternative setpoints have been set.
If the multisensor function is enabled, it will have
higher priority than the alternative setpoint which will
be overruled.
