8.6 Alarm (3)
This menu gives an overview of alarms and warnings.
You can reset alarms.
8.6.1 Alarm status (3)

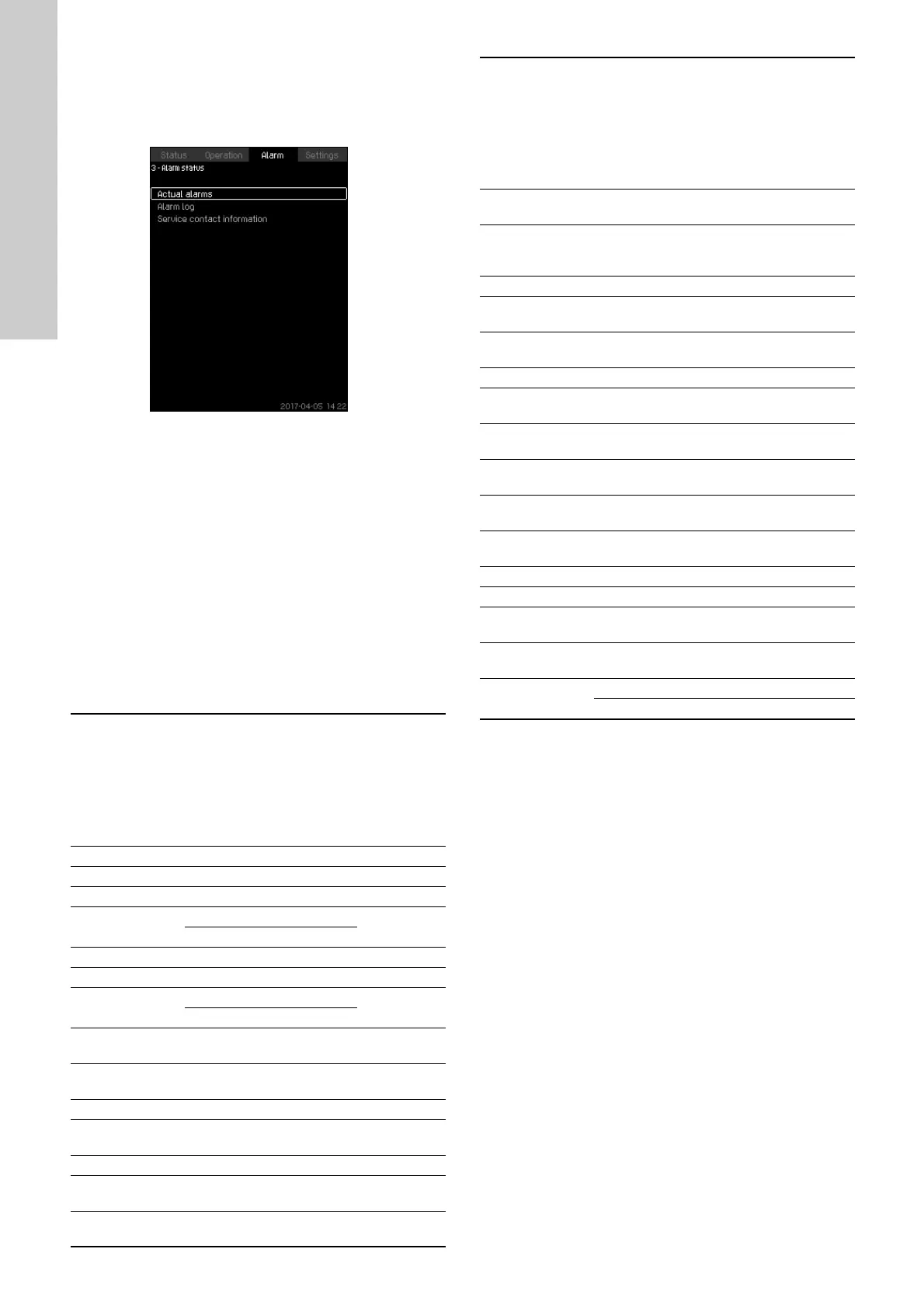

Fig. 31 Alarm status
Description
A fault in the system or one of the components monitored can
cause an alarm or a warning. Besides the fault signal via the
alarm and warning signal relay and the red indicator light on CU
352, an alarm can also cause a change of operating mode, for
instance from "Normal" to "Stop". A warning only causes a fault
indication.
The table shows the possible causes of fault together with an
alarm code, and whether they result in an alarm or a warning. It
also shows to what operating mode the system will change in
case of alarm, and whether restarting of the system and resetting
of the alarm is manual or automatic.
The table also shows that the reaction to some of the fault causes
mentioned can be set in the menu "Settings". See sections
8.7.26 Soft pressure build-up (4.3.3) and 8.7.56 Monitoring
functions (4.4) to 8.7.66 Pressure relief (4.4.8).
Fault Warning Alarm Change of operating mode to Resetting of alarm, restarting Set in the menu "Settings" Alarm code
Water shortage Warning - Man/auto X 206
Water shortage Alarm Stop Man/auto X 214
Pressure high Alarm Stop Man/auto X 210
Pressure low
Warning - Man/auto
X211
Alarm Stop Man/auto
Pressure relief Warning - Man/auto X 219
Alarm, all pumps Alarm Stop Auto - 203
External fault
Warning - Man/auto
X3
Alarm Stop Man/auto
Dissimilar sensor
signals
Warning - Auto - 204
Fault, primary
sensor
Alarm Stop Auto - 89
Fault, sensor Warning - Auto - 88
Communication
fault
Warning - Auto - 10
Phase failure Warning - Auto - 2
Undervoltage,
pump
Warning - Auto -
7, 40,
42, 73
Overvoltage,
pump
Warning - Auto - 32
Overload, pump Warning - Auto -
48, 50,
51, 54
Motor
temperature too
high
Warning - Auto -
64, 65,
67, 70
Other fault, pump Warning - Auto - 76, 83
Internal fault, CU
352
Warning - Auto -
83,
157
Internal fault, IO
351
Alarm Stop Auto -
72, 83,
157
VFD not ready Warning - Auto - 213
Fault, Ethernet Warning - Auto -
231,
232
Limit 1 exceeded
Warning/
alarm
- Man/auto X 190
Limit 2 exceeded
Warning/
alarm
- Man/auto X 191
Pressure buildup
fault
Warning/
alarm
- Man/auto X 215
Pumps outside
duty range
Warning - Man/auto X 208
Fault, pilot pump Warning - Auto - 216
Multisensor fault Alarm - Auto - 143
Multisensor value
exceeds limits
Warning - Auto X 87
Signal fault,
secondary sensor
Warning - Auto X 93
Non-return valve
fault
Warning - Man/auto X 209
Alarm - Man/auto X 209
