English (GB)
7

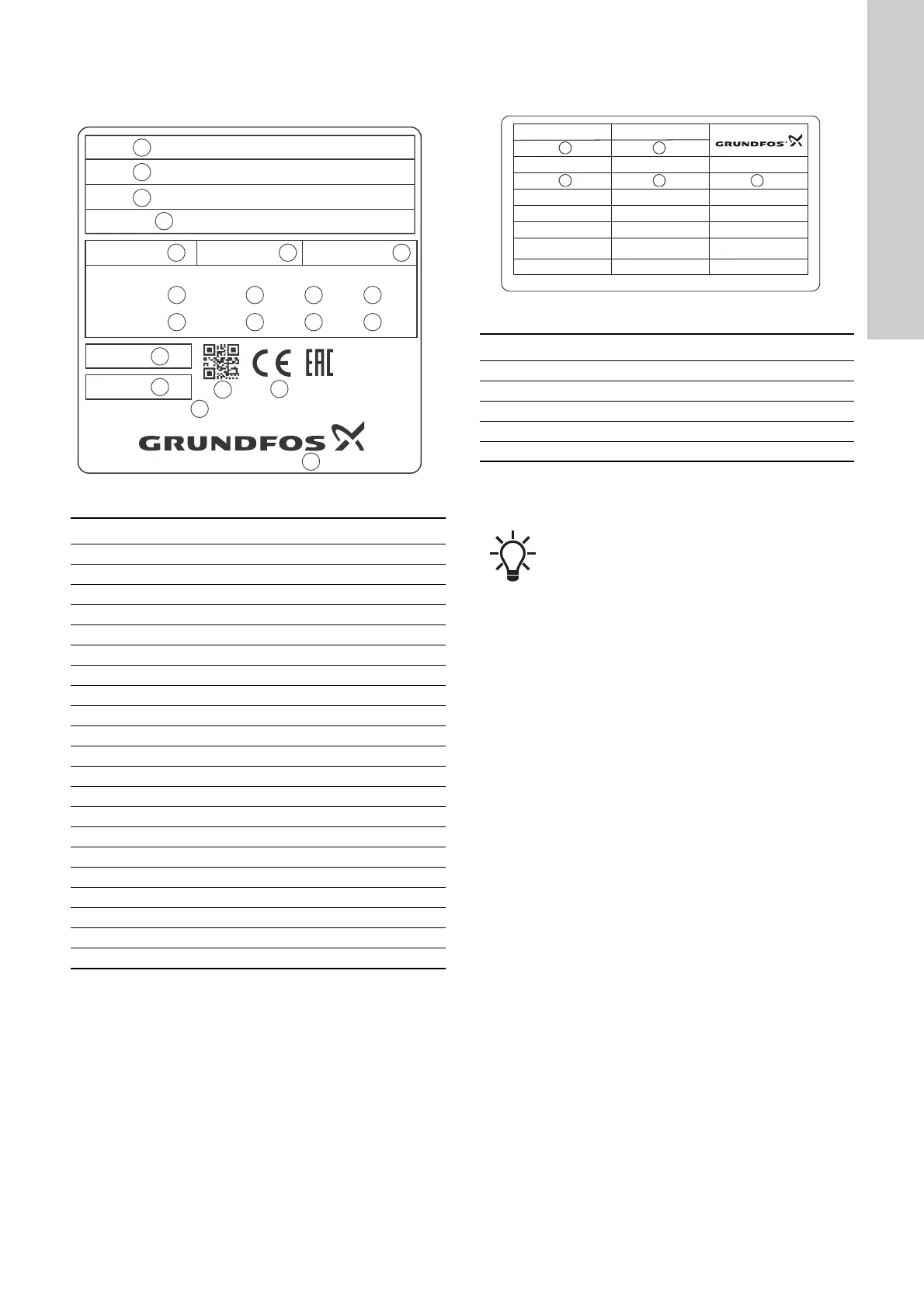

5.3 Identification
5.3.1 Nameplate
The nameplate is fitted on the base frame.
Fig. 2 Nameplate
5.3.2 Software label
The software label is placed on the back of the CU 352 control
unit.
Fig. 3 Software label
* Applies only to booster systems.
** Applies only to CR, CRI, CRN, CRE and CRIE pumps.
TM06 8849 1217
Pos. Description
1 Product type
2 Code for model
3 Main supply
4 Order No.
5 Rated current [A]
6 Circuit rated current [kA]
7 Maximum ambient temperature [°C]
8 Number of mains-operated pumps
9 Power [kW] of mains-operated pumps
10 Rated current [A] of mains-operated pumps
11 Rated voltage [V] of mains-operated pumps
12 Pilot pump
13 Power [kW] of pilot pump
14 Rated current [A] of pilot pump
15 Rated voltage [V] of pilot pump
16 Enclosure class
17 Weight [kg]
18 QR code
19 Approval marks
20 Country of origin
21 Company address
Type:
Model:
Mains:
Order No.:
In:
A
Icc kA T °C
Pumps:
No. P I U
IP Class:
Weight: kg
MADE IN GERMANY
DK - 8850 - Bjerringbro - Denmark
99049931
Pilot Pump:
T
y
3432-021-59379130-2014
ambmax
:
1
3
4
8 9
1312
16
17
18
19
20
21
10
14
11
15
5 6 7
2
TM03 1742 3105
Pos. Description
1 Control MPC - GSC file number
2 Control MPC options - GSC file numbers
3 Hydro MPC - GSC file number*
4 Hydro MPC options - GSC file numbers*
5 Pump data - GSC file numbers**
A GSC (Grundfos Standard Configuration) file is a
configuration data file.
1. Control MPC 3. Hydro MPC
5. Pump data
96586126
4. H-MPC options2. C-MPC options
CONFIGURATION STEPS - PLEASE FOLLOW THE NUMBERS
1
2
3
4 5
