8.7.55 Customisable measured value type (4.3.28.1-8)

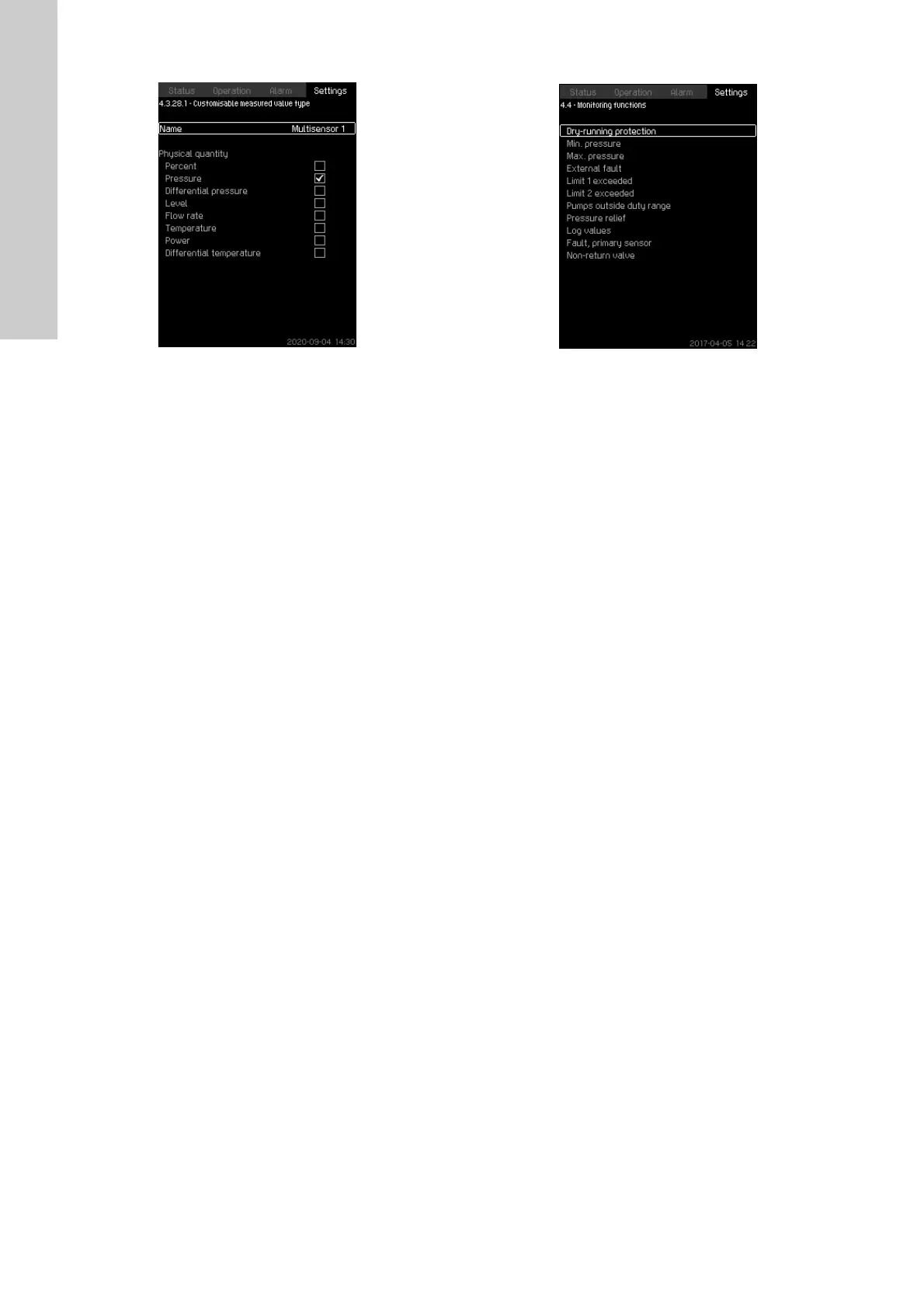

Fig. 106 Customisable measured value type
Description
• "Name": Configure the name for the measured value.
• "Physical quantity": Set the type of physical values:
– "Percent"
– Pressure
– Differential pressure
– Level
– Flow rate
– Temperature
– Power
– Differential temperature.
Setting via the operating panel
• Settings > Secondary functions > Customisable measured
value type 1-8.
1. Set "Name".
2. Select "Physical quantity".
8.7.56 Monitoring functions (4.4)
Fig. 107 Monitoring functions
Description
The system has a series of functions that constantly monitor the
operation of the system.
The primary purpose of the monitoring functions is to ensure that
faults do not damage pumps or the system.
Setting range
• 8.7.57 Dry-running protection (4.4.1)
• 8.7.61 Min. pressure (4.4.2)
• 8.7.62 Max. pressure (4.4.3)
• 8.7.63 External fault (4.4.4)
• 8.7.64 Limit 1 exceeded (4.4.5 - 4.4.6)
• 8.7.65 Pumps outside duty range (4.4.7)
• 8.7.66 Pressure relief (4.4.8)
• 8.7.67 Log values (4.4.9)
• 8.7.68 Fault, feedback sensor (4.4.10).
Setting via the operating panel
• Settings > Monitoring functions.
