8.7.53 Differential sensor (4.3.27.1-4)

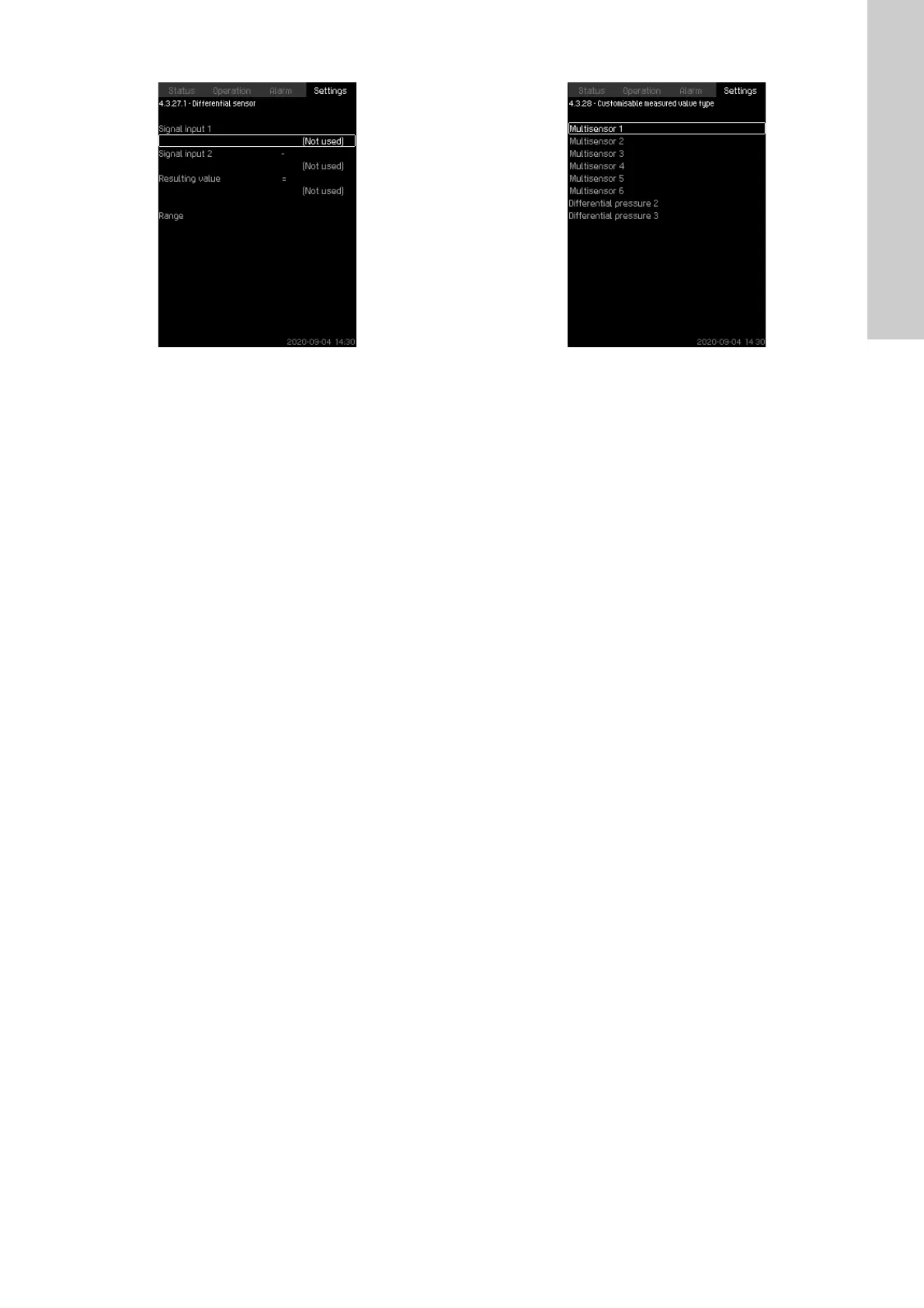

Fig. 104 Differential sensor 1-4
Description
Customising the differential sensors.
Setting range
• "Signal input 1": select value for the minuend part of the
differential sensor.
• "Signal input 2": select value for the subtrahend part of the
differential sensor.
• "Resulting value": select value for the resulting differential
sensor.
• "Range": set the range for the resulting differential sensor.
Setting via the operating panel
• Settings > Secondary functions > Differential sensor >
Differential sensor 1-4.
1. Select signal input 1 value.
2. Select signal input 2 value.
3. Select "Resulting value".
4. Set differential sensor range.
8.7.54 Customisable measured value type (4.3.28)
Fig. 105 Customisable measured value type
Description
Up to 8 input value types can be customized in regard to name
and physical quantity.
Example
Multisensor 1
Multisensor 2
Multisensor 3.
Setting via the operating panel
• Settings > Secondary functions > Customisable measured
value type.
