11.7 Settings (4)

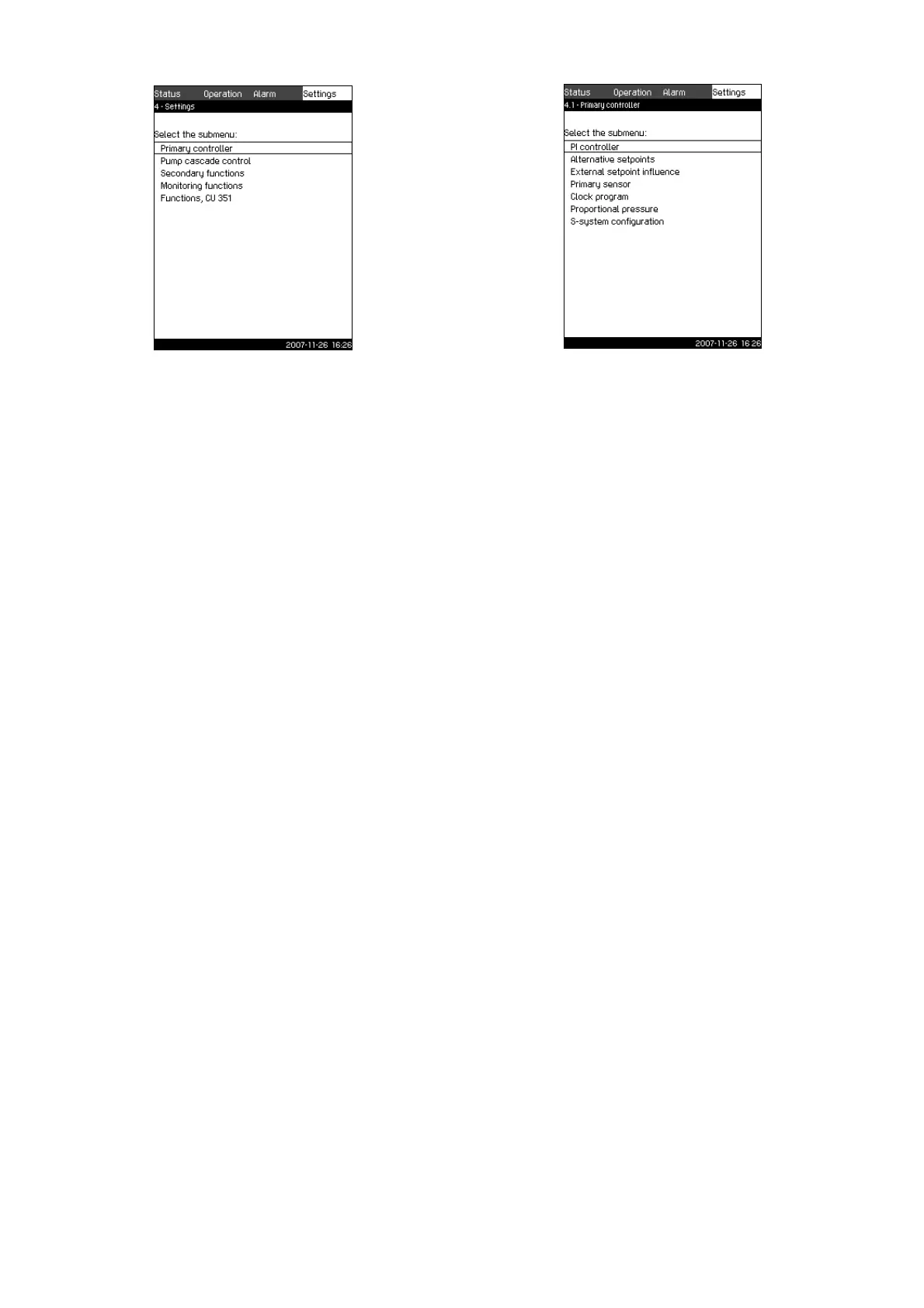

Fig. 31 Settings
In the Settings menu, it is possible to set the following functions:
• Primary controller
Setting of PI controller, alternative setpoints, external setpoint
influence, primary sensor, clock program, proportional pressure
and S-system configuration.
• Pump cascade control
Setting of min. time between start/stop, max. number of starts/
hour, number of standby pumps, forced pump changeover,
pump test run, pilot pump, pump stop attempt, pump start and
stop speed, min. performance and compensation for pump
start-up time.
• Secondary functions
Setting of stop function, soft pressure build-up, digital and
analog inputs, digital outputs, emergency run, min., max. and
user-defined duty, pump curve data, flow estimation, control
source and fixed inlet pressure.
• Monitoring functions
Setting of dry-running protection, min. and max. pressure,
external fault, limit 1 and 2 exceeded, pumps outside duty
range and pressure relief.
• Functions, CU 351
Selection of service language, main language and units.
Setting of time and date, passwords, Ethernet connection,
GENIbus number and software status.
Usually, all these functions are set correctly when the
Control MPC is switched on.
It is only necessary to make settings in this menu if the
functionality is to be expanded with for instance alternative
setpoints or setpoint influence, or if the settings of the CU 351 are
to be adjusted.
11.7.1 Primary controller (4.1)
Fig. 32 Primary controller
Description
In this menu section, it is possible to set the functions related to
the primary controller.
It is only necessary to make settings in this menu if the
functionality is to be expanded with for instance alternative
setpoints, external setpoint influence, clock program or
proportional pressure.
The following menus can be selected:
• PI controller
• Alternative setpoints
• External setpoint influence
• Primary sensor
• Clock program
• Proportional pressure
• S-system configuration.
TM03 2294 4607
TM03 8955 4807
