Grundfos CONTROL MPC User Manual

30
Setting via control panel
1. Mark the Settings menu with .
2. Mark Primary controller with or , and press .
3. Mark Primary sensor with or , and press .
4. Mark Go to setting of analog input with or , and
press .
Now the display Analog inputs (4.3.8) appears. Select the
analog input (AI) for the primary sensor, and set the
parameters for this sensor. Return to display Primary sensor
(4.1.4) with .
5. Select the control parameter for the primary sensor with
or , and press .
Factory setting
The primary parameter is discharge pressure. The sensor is
connected to AI1 (CU 351). Other primary parameters can be
selected in the start-up wizard.

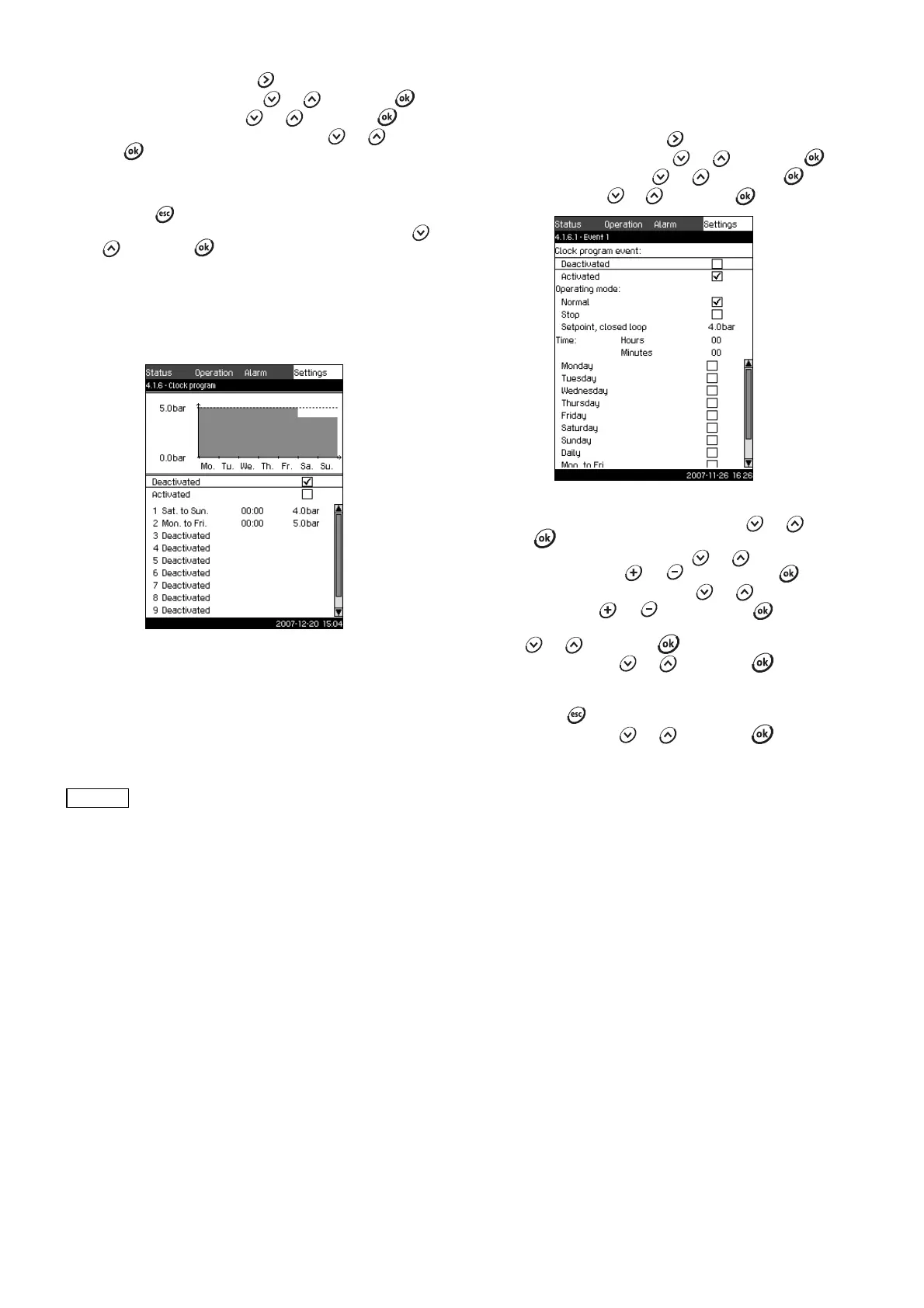

11.7.8 Clock program (4.1.6)
Fig. 40 Clock program
Description
With this function, it is possible to set setpoints and day and time
for their activation. It is also possible to set day and time for stop
of the system.
If the clock program is deactivated, the setpoint of the program
will remain active.
Setting range
• Activation of the function.
• Activation and setting of event.
Setting via control panel
1. Mark the Settings menu with .
2. Mark Primary controller with or , and press .
3. Mark Clock program with or , and press .
4. Mark Event 1 with or , and press .
Fig. 41 Event 1
5. Mark operating mode Normal or Stop with or , and
press . (If Stop is selected, step 6 will be skipped.)
6. Mark Setpoint, closed loop with or .
Set the pressure with or , and save with .
7. Mark Time (hours, minutes) with or .
8. Set the time with or , and save with .
9. Mark day of week on which the settings are to be activated
with or , and press .
10.Mark Activated with or , and press .
11. Repeat steps 4 to 10 if several events are to be activated.
Note: Up to ten events can be set.
12. Return with .
13.Mark Activated with or , and press . The check
mark in the right box shows that the function has been
activated.
Factory setting
The function is deactivated.
TM03 8990 4807
Note
Minimum 2 events are required when activating
the clock program; one to start the system and
one to stop the system.
TM03 8959 4807
