11.7.54 Display units (4.5.2)

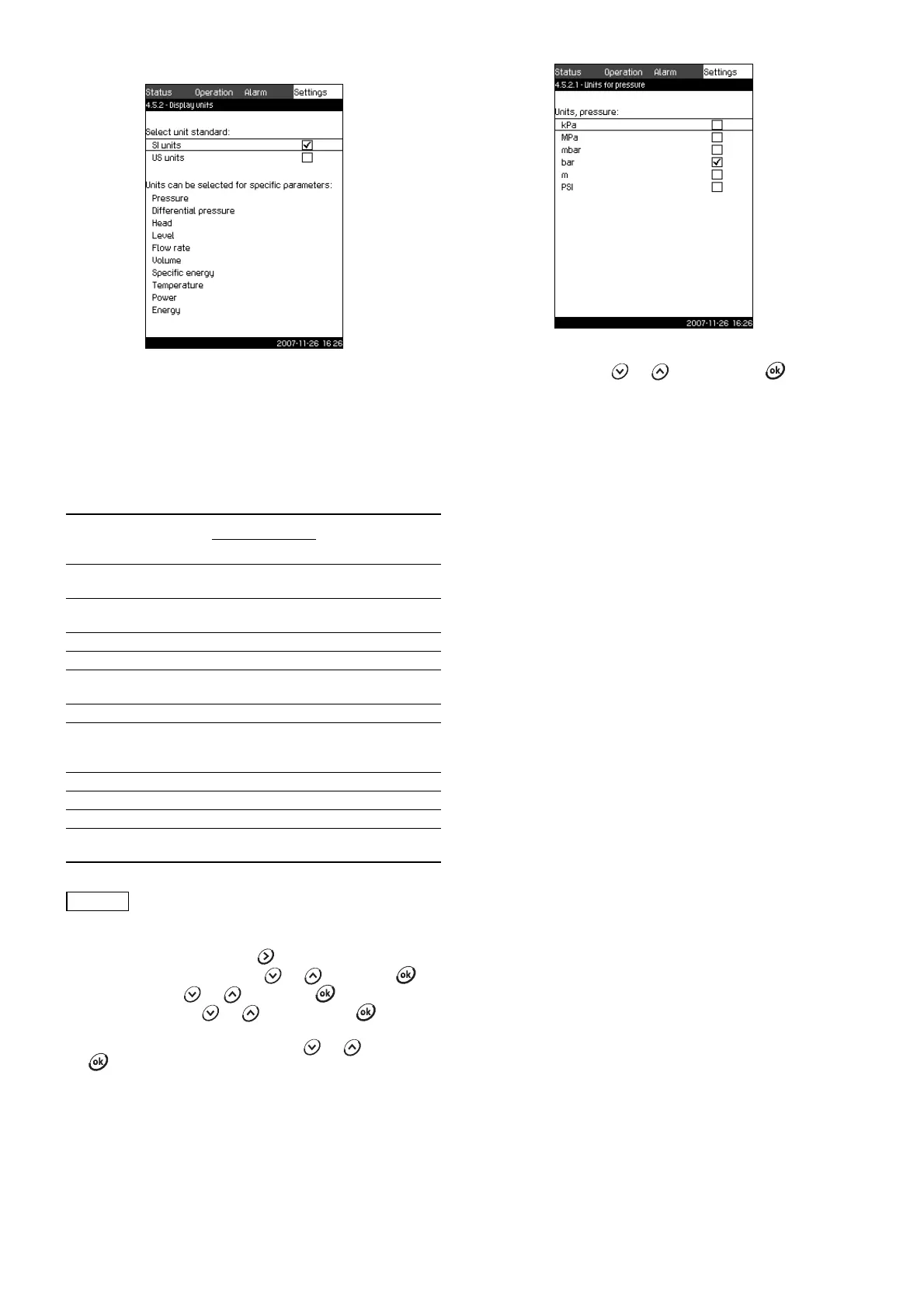

Fig. 100 Display units
Description
In this display, it is possible to select units for the various
parameters.
For the basic setting, it is possible to select between SI and US
units. It is also possible to select other units for the individual
parameters.
Setting range
Setting via control panel
1. Mark the Settings menu with .
2. Mark Functions, CU 351 with or , and press .
3. Mark Units with or , and press .
4. Select the unit with or , and save with .
A check mark shows that the unit has been selected.
5. Select the measuring parameter with or , and press
to open the display for the measuring parameter.
See the example.
Fig. 101 Example of selection of display units
6. Select the unit with or , and save with .
A check mark shows that the unit has been selected.
Factory setting
The setting is done in the start-up wizard and depends on the
application.
TM03 8988 4807
Parameter
Basic setting
Possible units
SI US
Pressure bar psi
kPa, MPa, mbar,
bar, m, psi
Differential pressure m psi
kPa, MPa, mbar,
bar, m, psi
Head m ft m, cm, ft, in
Level m ft m, cm, ft, in
Flow rate m
3
/h gpm
m
3
/s, m
3
/h, l/s, gpm,
yd
3
/s, yd
3
/min, yd
3
/h
Volume m
3
gal l, m
3
, gal, yd
3
Specific energy kWh/m
3
Wh/gal
kWh/m
3
, Wh/gal,
Wh/kgal, BTU/gal,
HPh/gal
Temperature °C °F K, °C, °F
Differential temperature K K K
Power kW HP W, kW, MW, HP
Energy kWh kWh
kWh, MWh, BTU,
HPh
Note
If units are changed from SI to US or vice versa,
all individually set parameters will be changed to
the basic setting in question.
