Grundfos CONTROL MPC User Manual

4
1. Symbols used in this document
2. Scope of these instructions
These installation and operating instructions apply to Grundfos
Control MPC.
Grundfos Control MPC is a complete solution for control and
monitoring of up to six identical pumps.
3. Product description

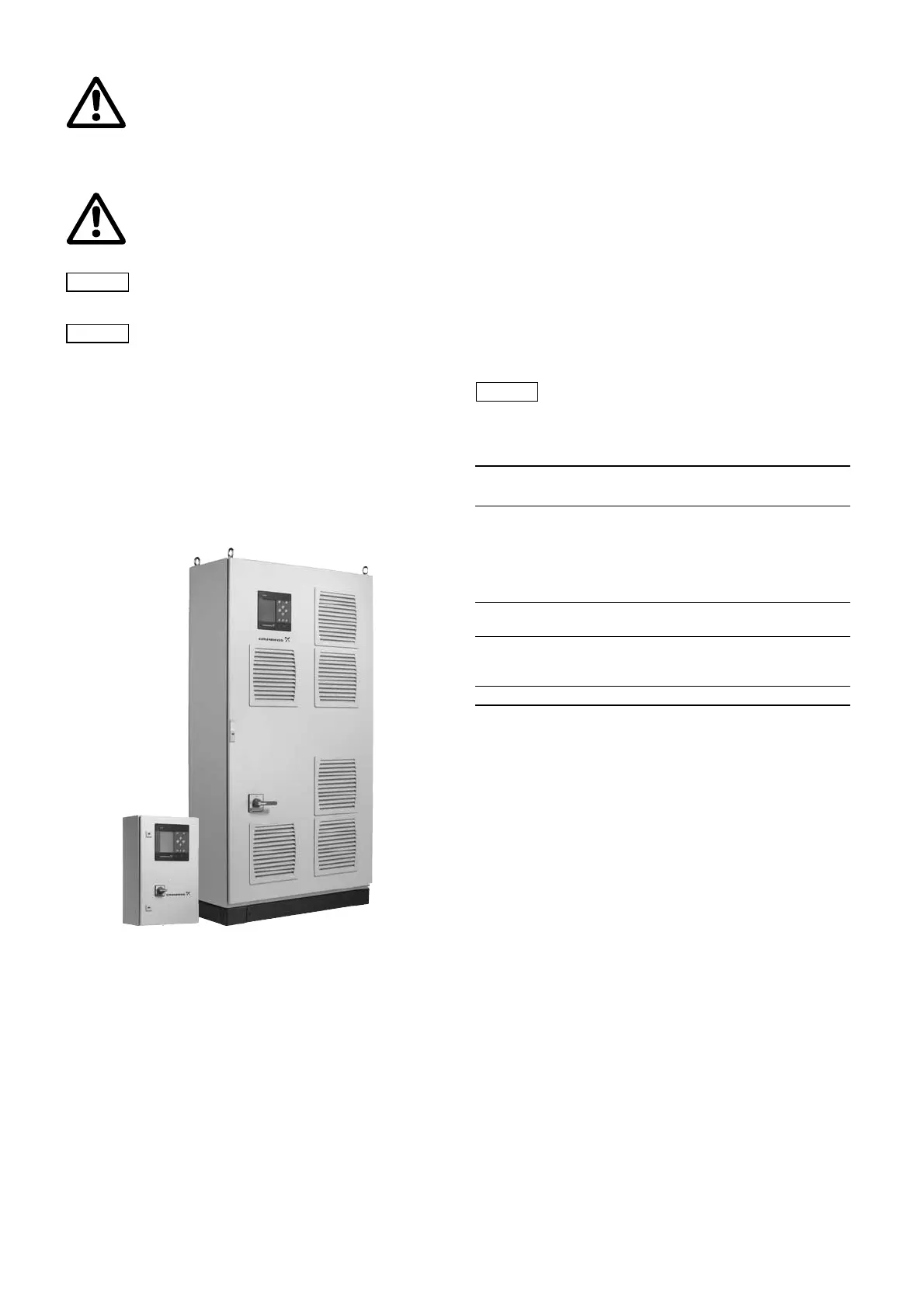

Fig. 1 Control MPC
Grundfos Control MPC is used for control and monitoring of
booster systems and circulation systems.
Control MPC consists of a control cabinet with a built-in controller,
the CU 351. The control cabinet contains all necessary
components such as main switch, contactors, IO modules and
cabling. In systems with external frequency converters, the
frequency converters can be installed in the cabinet.
The control cabinet is for wall or floor mounting.
4. Applications
Control MPC is used for control and monitoring of pumps in these
applications:
• booster systems
• circulation systems for heating, cooling and air-conditioning.
4.1 Pumps
Control MPC is designed for systems with these pumps:
• CR(E), CRI(E), CRN(E), CRIE
• NB(E), NBG(E)
• NK(E), NKG(E)
•TP
• TPE Series 1000
• TPE Series 2000
•HS
•SP
• MAGNA, UPE Series 2000.
4.2 Control variant
Control MPC is divided into four groups based on control variant:
See also section 8. Overview of control variants.
The Control MPC includes software for booster, heating and
cooling.
Warning
Prior to installation, read these installation and
operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.
Warning
If these safety instructions are not observed, it
may result in personal injury!
Caution
If these safety instructions are not observed, it
may result in malfunction or damage to the
equipment!
Note
Notes or instructions that make the job easier
and ensure safe operation.
TM04 0210 0208 - GrA5728
Note
The main pumps of the system must be of the
same type and size.
Control
variant
Description
-E
Two to six electronically speed-controlled pumps.
From 0,37 to 22 kW, Control MPC-E is equipped with
Grundfos pumps with integrated frequency converter.
As from 30 kW, Control MPC-E is equipped with
mains-operated pumps connected to external
Grundfos CUE frequency converters (one per pump).
Series
2000
Two to six MAGNA, UPE or TPE Series 2000 pumps
-F
Two to six pumps connected to an external Grundfos
CUE frequency converter. The speed-controlled
operation alternates between the pumps.
-S Two to six mains-operated pumps
