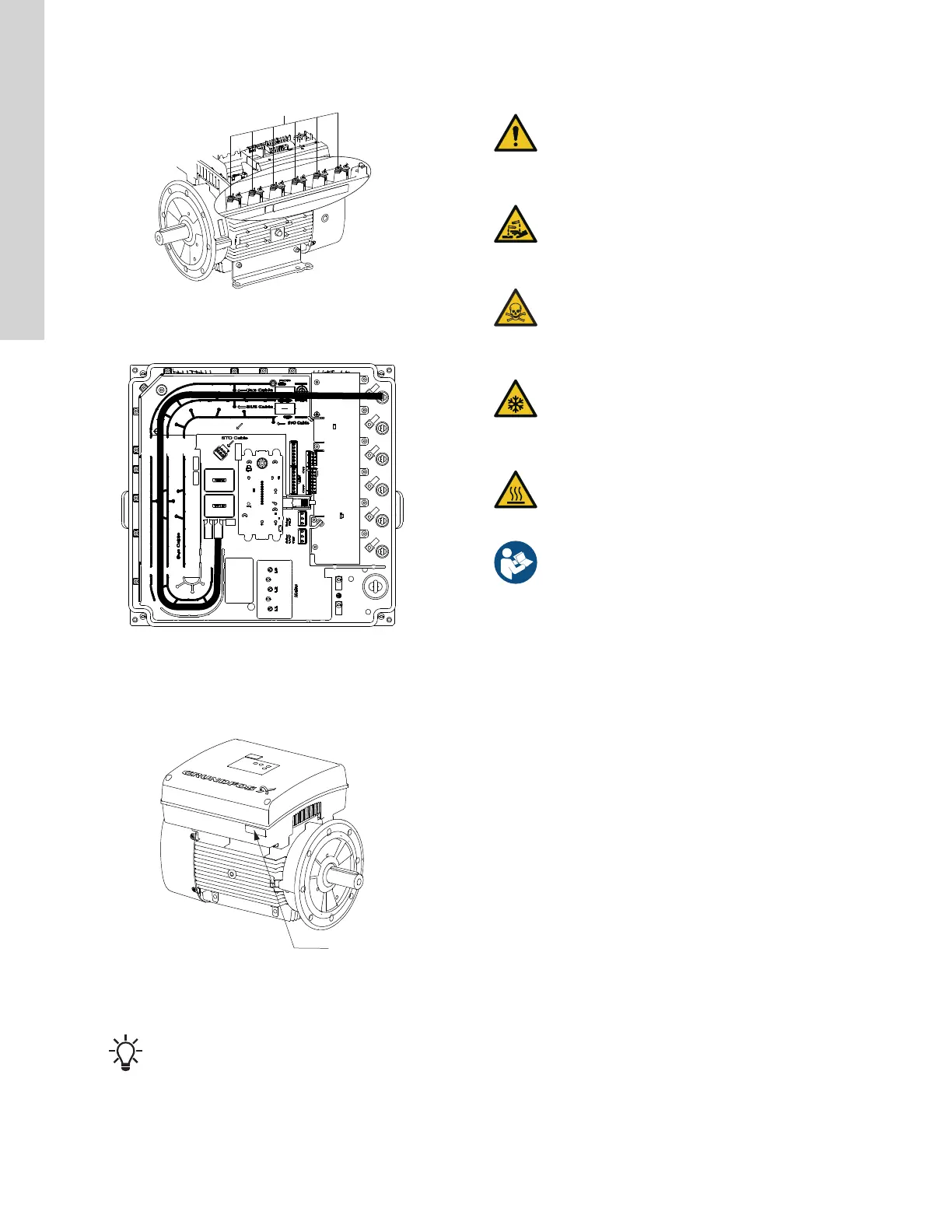

7. Connect the cable screens of the bus cables to protective earth
via one of the earth clamps (H).
TM082868
Model K
8. Route the wires for the module through one of the cable glands.
TM082869
Model K
9. Fit the CIM cover.
10. If the module is supplied with an FCC label, fix the label on the
terminal box.
TM082870
Model K
11. Fit the terminal cover and cross-tighten the four screws to
3.7 ft⋅lb (5 Nm).
Make sure that the terminal box cover is aligned with
the orientation of the operating panel.
8. Starting up the product
WARNING
Rotating parts
Death or serious personal injury
‐ Make sure to install the coupling guards before
powering on the product.
WARNING
Corrosive liquids
Death or serious personal injury
‐ Wear personal protective equipment.
WARNING
Toxic liquids
Death or serious personal injury
‐ Wear personal protective equipment.
CAUTION
Cold surface
Minor or moderate personal injury
‐ Make sure that no one can accidentally come into
contact with cold surfaces. Wear protective gloves.
CAUTION
Hot surface
Minor or moderate personal injury
‐ Do not touch the product while it is running.
Follow the startup instructions for the pump. See the
related installation and operating instructions for the
pump.
Related information
2.1 Related instructions
22
English (US)
